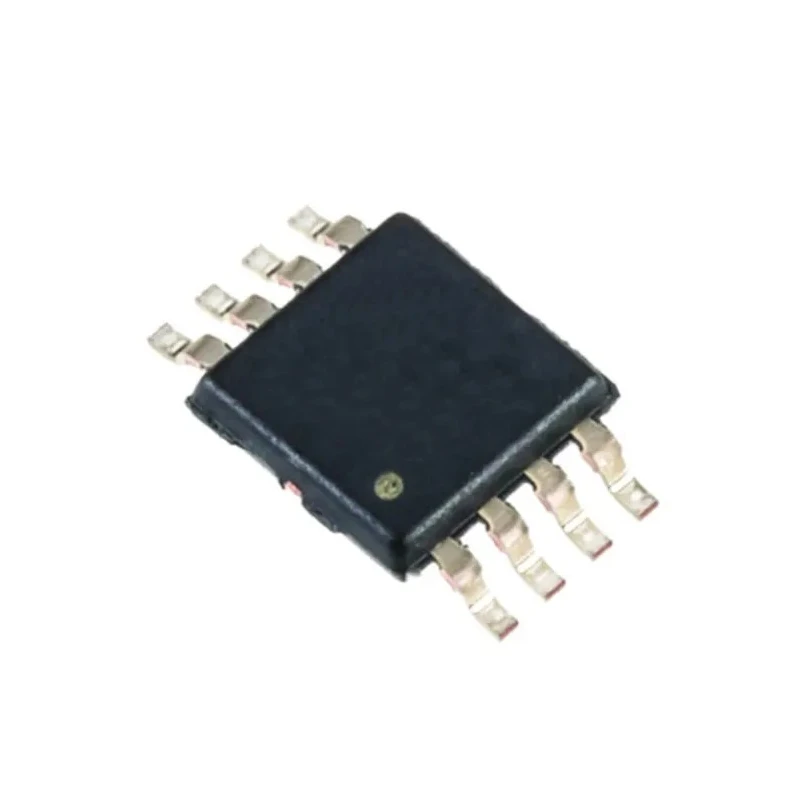

Texas Instruments I2C Translator Voltage Level Translator 2 Elements Bi-Directional 8-Pin VSSOP PCA9306DCUR

Texas Instruments PCA9306DCUR is a high-performance I2C translator voltage level translator designed for bi-directional voltage level shifting in I2C and SMBus communication systems. This 8-pin VSSOP device integrates 2 independent elements per chip to provide voltage translation for signals operating at different voltage levels, ensuring seamless communication between components.

The device supports surface mount technology and features a minimal propagation delay time of 1.5ns, promoting high-speed data translation. With a maximum supply voltage of 5V and a minimum supply starting at 0mV, it can handle a wide voltage range suitable for modern electronic designs.

It provides a maximum high-level output current of 128mA, combined with a 3-state output configuration, enhancing bus isolation and signal integrity. Operable across an extended temperature range from -40°C to 85°C, it meets rigorous industrial temperature standards, though it is not automotive qualified.

With compact physical dimensions of 900μm height and 3.2mm length, the PCA9306DCUR eases integration into space-constrained circuit boards.

This component is ideal for a variety of applications including industrial automation, consumer electronics, laboratory instrumentation, and embedded systems requiring reliable level shifting between different voltage domains.

This device supports a bi-directional voltage level translation for I2C and SMBus applications. It operates with a maximum propagation delay time of 1.5ns at CL. Designed for surface mount with compact 8-pin VSSOP packaging.

Offers a maximum high-level output current of 128mA, suitable for various voltage translations up to 5V supply. Operates reliably between temperatures of -40°C to 85°C for industrial applications. The package features 2 discrete elements per chip enabling efficient voltage level shifting.

Supports 3-state output type for improved bus control in complex systems. The device height is approximately 900μm and length 3.2mm, ensuring a small PCB footprint.
