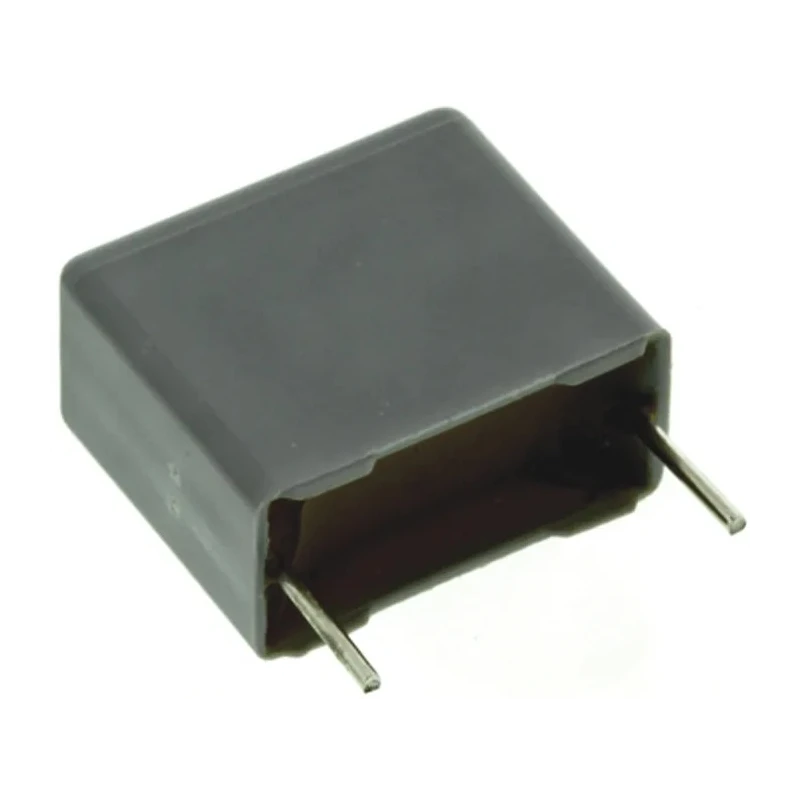

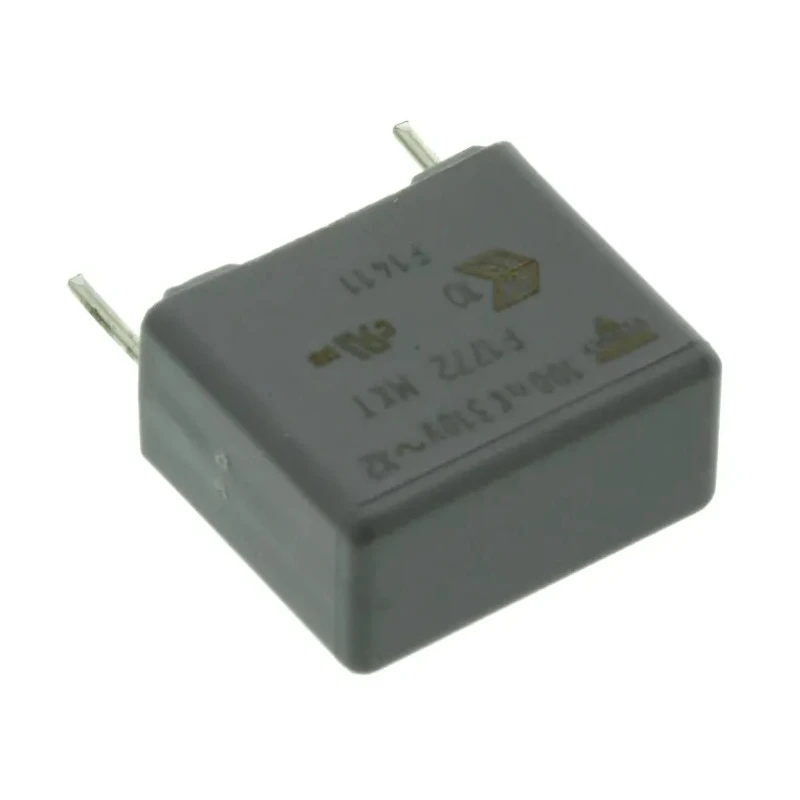

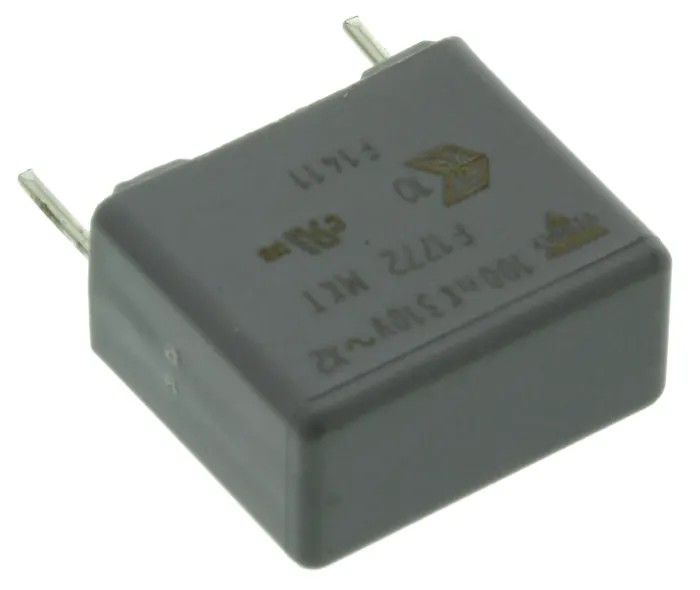

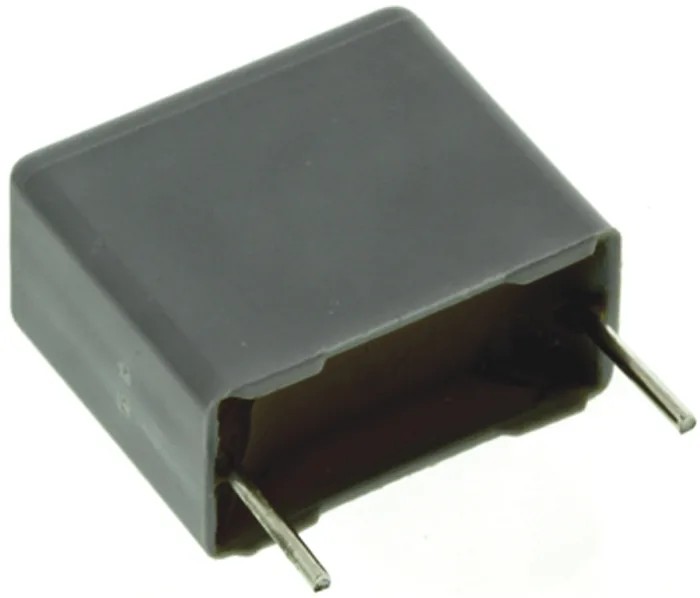

Vishay Film Capacitor 100 nF 310V AC 310V DC Through Hole Mount F17724102000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 15mm |
| Length | 17.5mm |
| Model | F17724102000 |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | F1772 |
| Maximum Operating Temperature | 110°C |
| Capacitance | 100nF |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 310V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
| Vishay F1772 Polyester Film Capacitor, 310V ac, ±10%, 100nF, Through HoleBrand | Vishay |
Key Features
- Capacitance of 100 nanofarads for precise electrical performance.
- Rated for both 310V AC and 310V DC voltages.
- Through Hole mounting for robust and easy PCB integration.
- Lead pitch measures 15mm for standard PCB layout compatibility.
- Minimum operating temperature up to 110°C ensuring durability.
- Meets automotive standard AEC-Q200 for quality and reliability.
- X2 suppression class for electromagnetic interference reduction.
- Lead diameter of 0.8mm optimized for soldering.
Product Description
Vishay F17724102000 film capacitor is a metallized polyester film type designed for interference suppression applications. It is rated for 100 nF capacitance and supports both 310V alternating current (AC) and direct current (DC) voltages, suitable for industrial and automotive electronic circuits.
This film capacitor features a through-hole mount type, allowing easy installation on printed circuit boards with a lead pitch of 15mm. The leads have a diameter of 0.8mm, designed for reliable soldering connections.
Constructed with an epoxy resin-sealed flame-retardant case, the capacitor withstands maximum operating temperatures up to 110°C, ensuring durability and long-term stability in demanding environments. It meets the automotive standard AEC-Q200, indicating high quality and reliability for automotive and other critical applications.

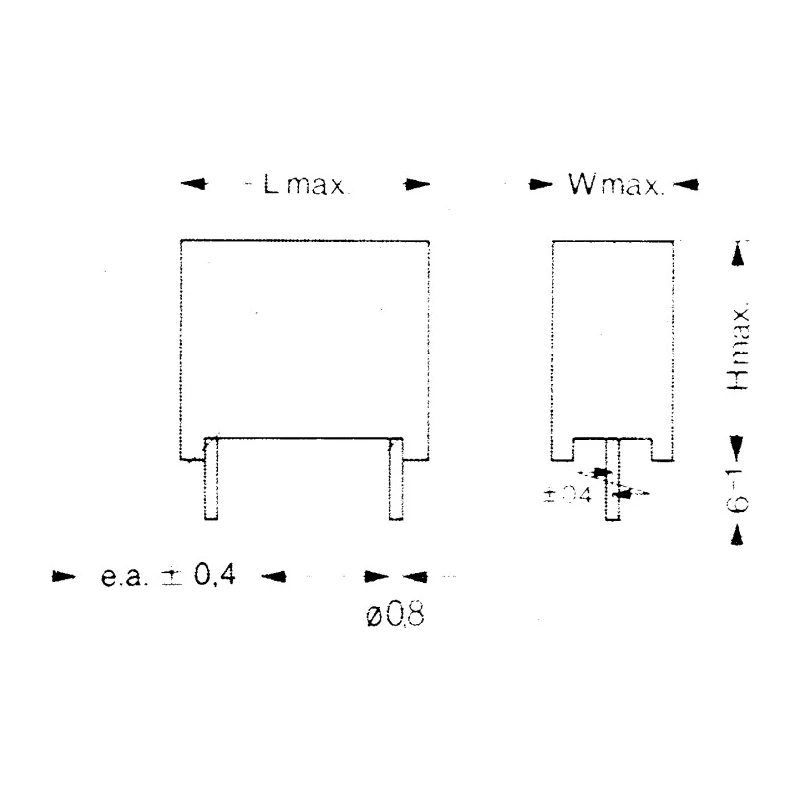

Dimensions of the capacitor are 17.5mm in length, 8.5mm in width, and 15mm in height, making it compact yet effective for various electronic designs. It complies with numerous international safety and quality standards including UL 60384-14, IEC 60384-14 ed-4, EN 60384-14, IEC 60065, and CSA E384-14, ensuring broad regulatory acceptance.
The capacitor is classified as X2 suppression class, designed specifically for interference suppression between phases or between line and neutral, reducing electromagnetic disturbances in electrical installations.
Capacitance of 100 nF, rated for 310V AC and 310V DC operation. Through hole mounting type with 15mm lead pitch and 0.8mm lead diameter. Maximum operating temperature of 110°C with epoxy flame-retardant casing. Compliance with automotive standard AEC-Q200 and multiple international safety approvals.
Compact dimensions: 17.5mm length, 8.5mm width, 15mm height. X2 class for effective electromagnetic interference suppression. Metallized polyester film technology for enhanced reliability. Designed for industrial, automotive, and electrical applications.
Meets rigorous UL, IEC, EN, CSA and other regulatory standards.
This capacitor is ideal for use in interference suppression circuits in industrial machinery, automotive electronics, power supplies, and other electrical systems requiring dependable capacitive filtering and noise reduction. It offers stable performance under high-stress conditions and helps comply with electromagnetic compatibility requirements.
Explore more Vishay Film Capacitors and related electronic components at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this film capacitor is 100 nanofarads (nF).
It is rated for both 310V AC and 310V DC voltages.
The maximum operating temperature is 110°C.
This model features a through-hole mounting type for easy installation on printed circuit boards.
The lead pitch measures 15mm, which is standard for PCB layout compatibility.
The lead diameter is 0.8mm, optimized for reliable soldering connections.
It meets the automotive standard AEC-Q200, ensuring quality and reliability for automotive applications.
The dimensions are 17.5mm in length, 8.5mm in width, and 15mm in height.
This capacitor is classified as X2 suppression class, designed for electromagnetic interference reduction.
It is constructed with an epoxy resin-sealed flame-retardant case for durability.
This model is suitable for interference suppression circuits in industrial machinery, automotive electronics, and power supplies.
It complies with UL 60384-14, IEC 60384-14 ed-4, EN 60384-14, IEC 60065, and CSA E384-14.
