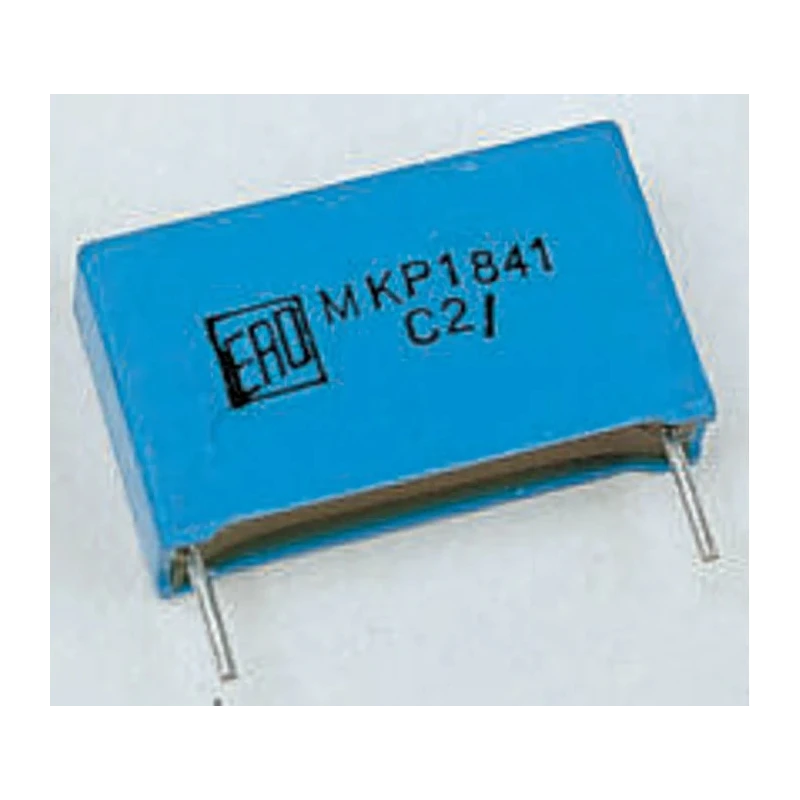

Vishay MKP1841 Film Capacitor ±5 % Tolerance 2.2 nF Capacitance 2 kV DC 700 V AC Through Hole MKP1841

Vishay MKP1841 film capacitor, model MKP1841, is a high-quality passive electronic component designed for high voltage and high current applications. This film capacitor features a capacitance of 2.2 nF with a ±5 % tolerance, ensuring accurate electrical performance for demanding circuits.

Rated for 2 kV DC and 700 V AC, the capacitor is suited for applications such as snubber circuits, protection circuits, electronic ballast circuits, and deflection circuits (e.g., televisions) that require handling large pulses reliably.

The capacitor is constructed with a through-hole mount type and a lead pitch of 22.5 mm, making it straightforward to install on printed circuit boards. The leads have a diameter of 0.8 mm, and the overall dimensions are 26.5 mm in length, 14.5 mm in height, and 6.5 mm in width.

Operating temperature ranges from -55°C to 100°C, allowing usage in demanding industrial and commercial environments. The capacitor is encapsulated in a flame retardant plastic case rated UL 94V-0 with an epoxy resin seal, providing safety and durability.

Compliant with IEC 60384-16 standards, the MKP1841 series ensures reliability and quality. Applications are diverse, including use in snubber protection, high voltage circuits, and high pulse operations requiring durability and precision.

Capacitance of 2.2 nanofarads ensuring precise electrical performance. Rated DC voltage of 2 kilovolts for high voltage applications. Rated AC voltage of 700 volts suitable for alternating current circuits. ±5 % capacitance tolerance for reliable circuit characteristics.

Mount type is through hole, providing durable mechanical stability. Lead pitch of 22.5 millimeters allowing easy PCB installation. Operating temperature range from -55°C to 100°C for versatile environments. Encapsulated in flame retardant plastic case complying with UL 94V-0 standards.

Applications include snubber, protection circuits, and high pulse operations. Complies with IEC 60384-16 standard for quality assurance.

This Vishay MKP1841 Film Capacitor is ideal for industrial electronics, manufacturing, and commercial electrical applications that demand reliable capacitor performance under high voltage and demanding conditions.
