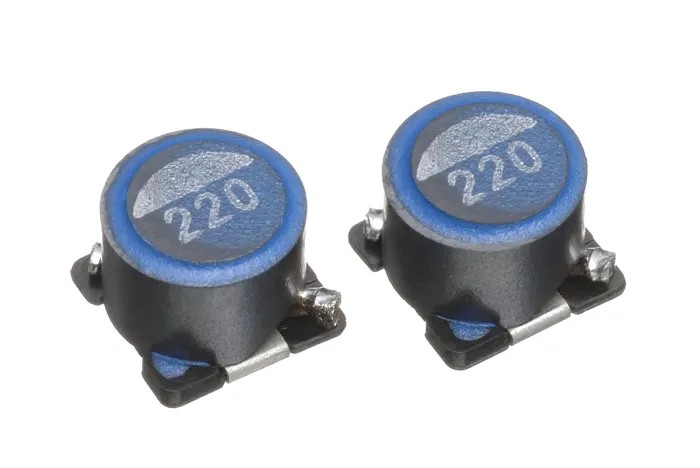

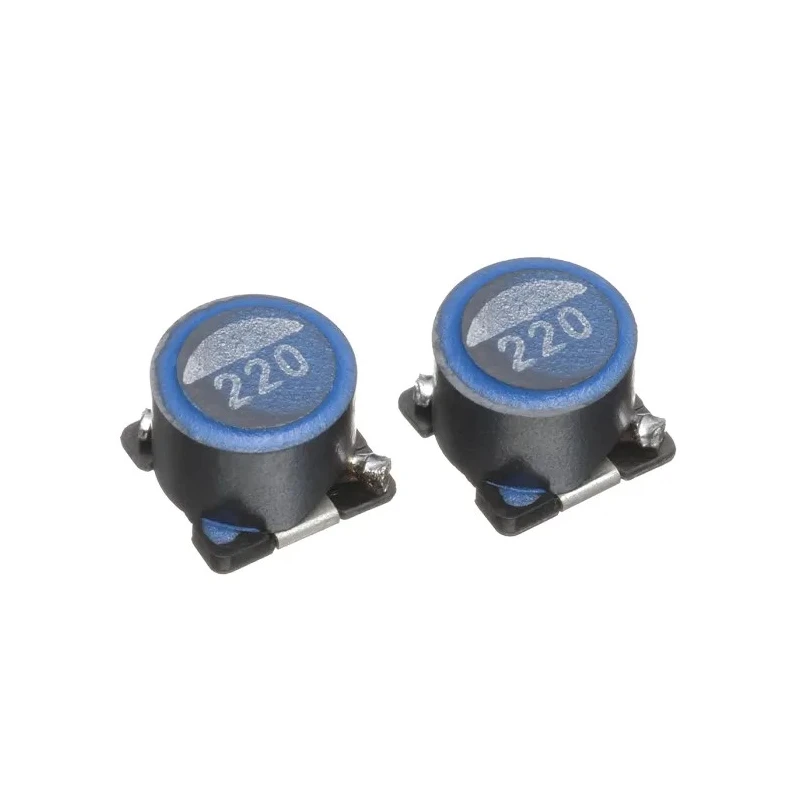

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 22μH ±20% 2.1A IDC 10145 Package SLF10145T-220M1R9-PF
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 10.1mm |
| Brand | TDK |
| Height | 4.5mm |
| Length | 10.1mm |
| Model | SLF10145T-220M1R9-PF |
| Depth | 10.1mm |
| Packaging | Tape & Reel |
| Series | SLF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 10145 |
| Maximum DC Current | 2.1A |
| Pin Count | 2 |
| Maximum DC Resistance | 59.1mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Shielded |
Key Features
- This inductor features a ferrite core with shielded, moulded wirewound construction for reduced electromagnetic interference.
- Package size is 10145 with dimensions of 10.1mm diameter, 4.5mm height, and 10.1mm depth.
- Maximum DC resistance is 59.1 milli-ohms ensuring low power losses in circuits.
- It operates reliably between -40°C and 105°C, suitable for various industrial applications.
- Termination style is solder, packaged in tape and reel format for automated assembly.
- RoHS compliant and designed for professional electronic component use.
- Typical applications include portable telephones, personal computers, hard disk drives, and general electronic equipment.
Product Description
TDK SLF10145T-220M1R9-PF is a shielded wirewound surface mount inductor with a ferrite core, offering an inductance of 22μH ±20% and a maximum DC current rating of 2.1 A. The device is engineered for applications requiring low electromagnetic interference and compact form factor.
The inductor comes in a 10145 package with dimensions of 10.1mm diameter, 4.5mm height, and 10.1mm depth. It features moulded shielded construction that reduces EMC, ensuring enhanced performance in demanding environments.
With a maximum DC resistance of 59.1mΩ, this component minimizes power loss and heating. It operates efficiently within an ambient temperature range of -40°C to +105°C, making it suitable for industrial, telecommunications, computing, and storage device applications.
The termination style is solder, and it is supplied in tape and reel packaging to support high-speed automated mounting processes. This component complies with RoHS standards, confirming its adherence to environmental and safety regulations.
Common uses include integration into portable phones, personal computers, hard disk drives, and other compact electronic assemblies requiring reliable power line filtering and noise suppression.
This inductor features a ferrite core with shielded, moulded wirewound construction for reduced electromagnetic interference. Package size is 10145 with dimensions of 10.1mm diameter, 4.5mm height, and 10.1mm depth. Maximum DC resistance is 59.1 milli-ohms ensuring low power losses in circuits.
It operates reliably between -40°C and 105°C, suitable for various industrial applications. Termination style is solder, packaged in tape and reel format for automated assembly. RoHS compliant and designed for professional electronic component use.
Typical applications include portable telephones, personal computers, hard disk drives, and general electronic equipment. Explore the Electronics Components category on EnvMart for more reliable Surface Mount Inductors and related passive components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 22μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 2.1 A.
It has a diameter of 10.1mm, a height of 4.5mm, and a depth of 10.1mm.
The maximum DC resistance is 59.1 milli-ohms, which helps minimize power losses in circuits.
It operates reliably within a temperature range of -40°C to 105°C.
This inductor features a ferrite core, which contributes to its performance in reducing electromagnetic interference.
The termination style is solder, making it suitable for surface mount applications.
It is packaged in tape and reel format, which supports automated assembly processes.
Yes, it is RoHS compliant, adhering to environmental and safety regulations.
Common applications include portable telephones, personal computers, and hard disk drives.
This inductor is part of the SLF series from TDK.
This model has a pin count of 2.
