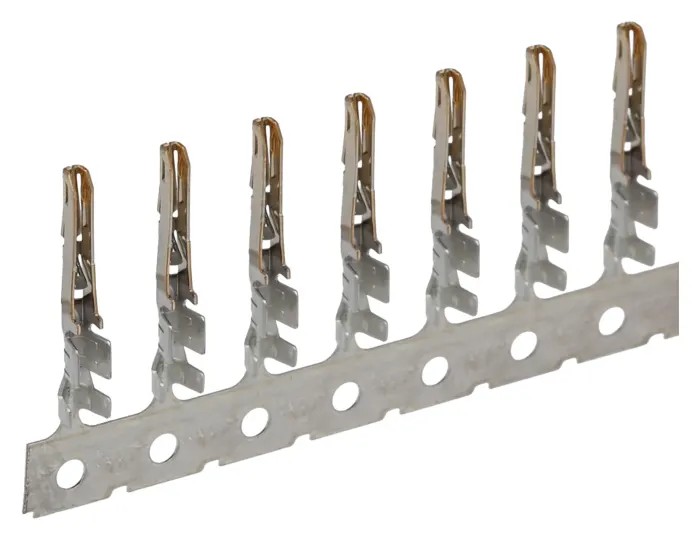

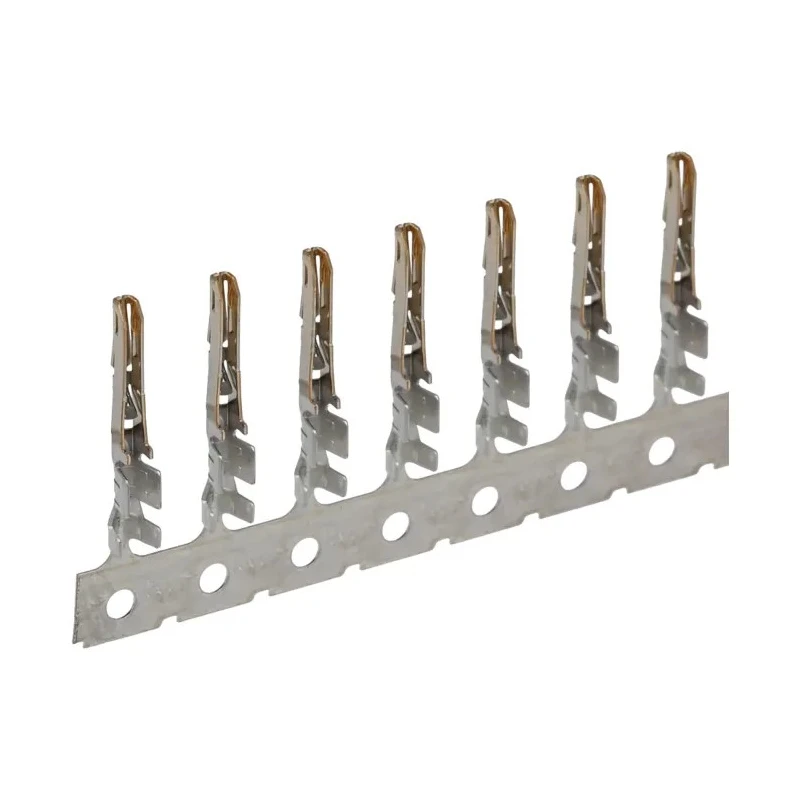

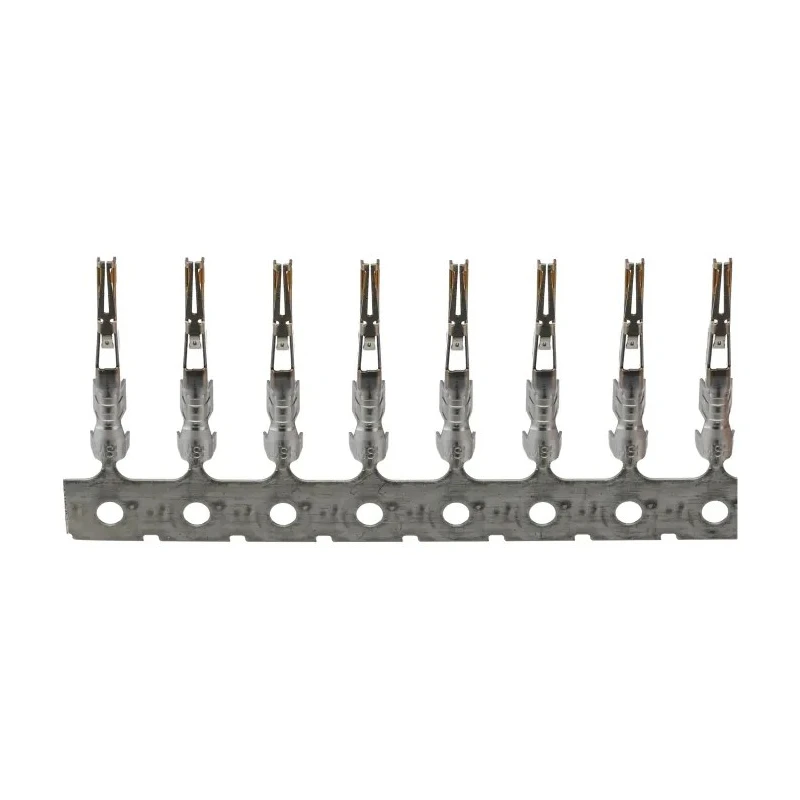

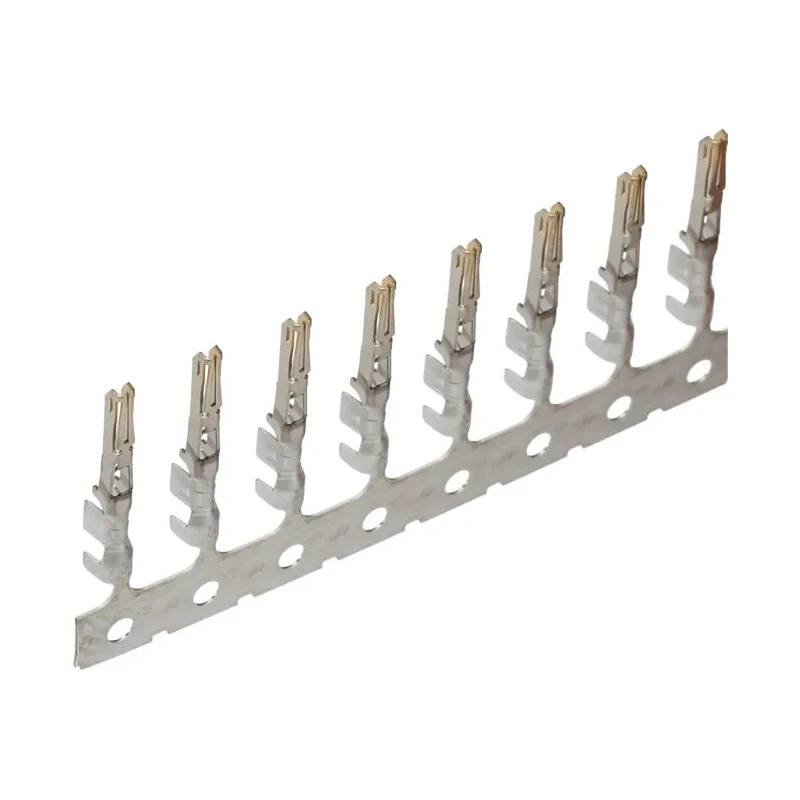

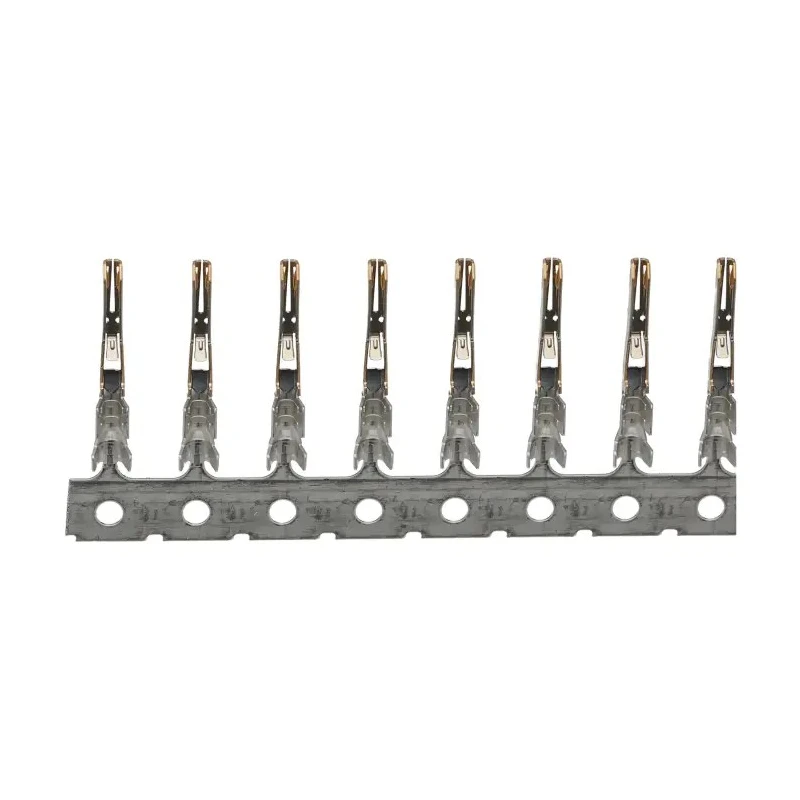

Molex 105300 Series Female Crimp Terminal 20-22 AWG Gold Plated Copper Alloy 8A 1053002300
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Current | 8A |
| Gender | Female |
| Contact Material | Tin |
| Series | 105300 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 115°C |
| Minimum Operating Temperature | -40°C |
| For Use With | 105307 & 105308 Nano-Fit Receptable Housing |
| Standards/Approvals | Halogen-Free Status Low-Halogen, EU RoHS China RoHS Compliant Per - D(2020)4578-DC (25 June 2020) |
| Contact Plating | Gold |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from highly conductive copper alloy to ensure excellent performance.
- Gold plating enhances conductivity and protects against corrosion.
- Compatible with 105307 & 105308 Nano-Fit receptacle housing.
- Supports wire sizes ranging from 20 AWG to 22 AWG for versatile applications.
- Rated for a maximum current of 8A, ensuring safe power delivery.
- Designed for crimp termination method, allowing secure wire connections.
- Operates reliably between -40°C to 115°C operating temperatures.
- Capable of enduring up to 50 mating cycles for long-lasting use.
Product Description
Molex 1053002300 is a female Crimp Terminal from the 105300 series, designed for use in electronic and electrical applications requiring compact and reliable connectors. It supports wires sized between 20 AWG and 22 AWG, making it suitable for a range of wiring needs in power distribution and signal transmission tasks. This connector features a copper alloy body plated with 0.76 microns of gold for superior electrical conductivity and effective corrosion resistance.
The terminal supports a maximum current of 8A and can reliably operate within a temperature range of -40°C to 115°C. It is constructed to work with Molex’s Nano-Fit receptacle housings (models 105307 and 105308), providing a compact and secure wire-to-board connection.
Termination is achieved through crimping, offering a strong mechanical and electrical bond. Its design allows for up to 50 mating cycles, ensuring durability in environments that require frequent connections and disconnections. The terminal also complies with several industry standards including Low-Halogen, EU RoHS, and China RoHS, making it environmentally compliant for various applications.
Applications include use in electronic component assemblies, power distribution modules, industrial automation systems and other equipment requiring robust, reliable electrical connections in compact spaces.
Constructed from a highly conductive copper alloy for superior electrical performance. Gold plating prevents corrosion and enhances conductivity. Compatible with Nano-Fit receptacle housings for compact integration. Supports wire sizes from 20 AWG to 22 AWG for versatility.
Rated maximum current is 8A for safe power handling. Crimp termination provides strong and reliable wire connections. Operating temperature range from -40°C to 115°C suitable for varied environments. Durable design supports up to 50 mating cycles for repeated use.
Halogen-free and RoHS compliant for environmental safety. Explore our extensive range of electronic components and connectors at EnvMart for all your industrial and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 8A, ensuring safe power delivery for various applications.
It supports wire sizes ranging from 20 AWG to 22 AWG, providing versatility for different wiring needs.
The terminal operates reliably between -40°C and 115°C, making it suitable for a variety of environments.
This connector uses a crimp termination method, allowing for secure and reliable wire connections.
It is compatible with Molex 105307 and 105308 Nano-Fit receptacle housings for compact integration.
This model is designed to endure up to 50 mating cycles, ensuring durability in frequent connection scenarios.
It is constructed from a highly conductive copper alloy and features gold plating for enhanced conductivity and corrosion resistance.
The terminal complies with several standards including Low-Halogen, EU RoHS, and China RoHS for environmental safety.
The maximum contact resistance for this terminal is 10mΩ, ensuring efficient electrical performance.
The country of origin for this terminal is China.
It is suitable for use in electronic component assemblies, power distribution modules, and industrial automation systems.
This terminal is designed as a female crimp terminal, allowing for secure connections with compatible male connectors.
