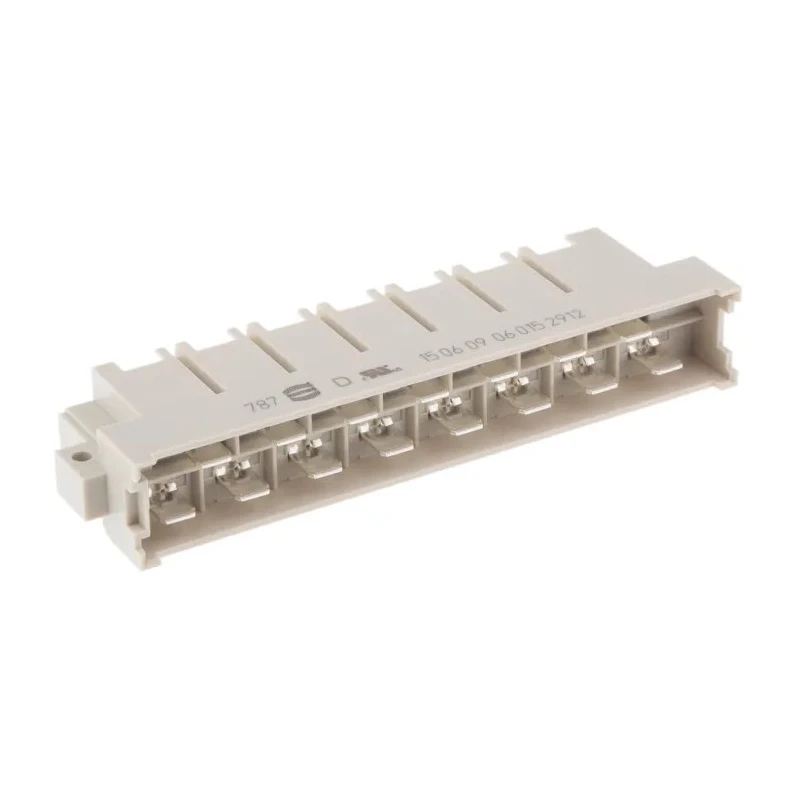

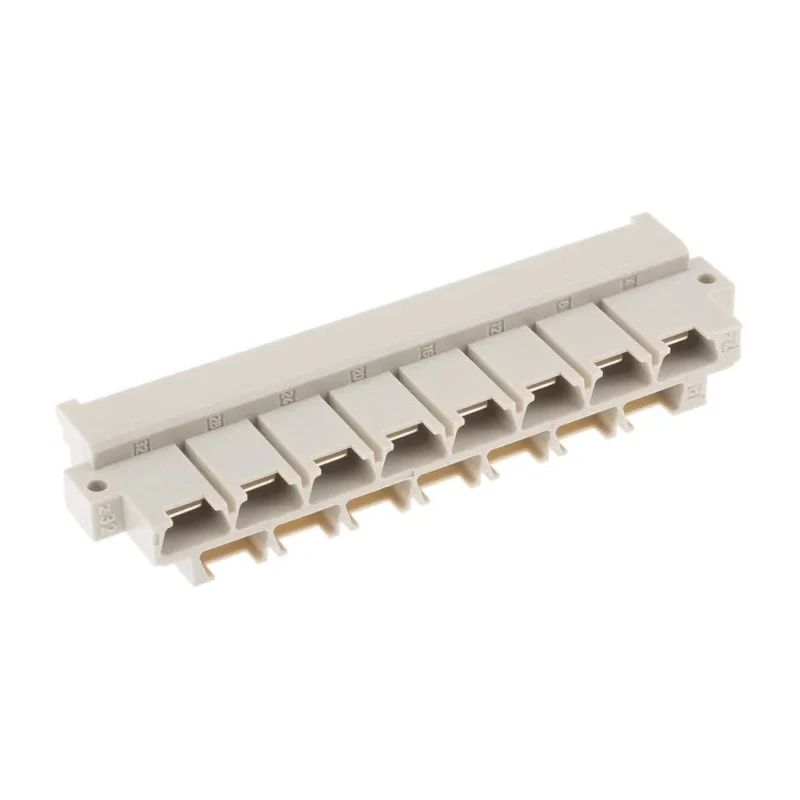

HARTING DIN 41612 Connector 15 Way 10.16 mm Pitch Type H15 Faston Class C1 2 Row Male Straight 09060152912
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 500V ac |
| Brand | HARTING |
| Orientation | Straight |
| Current | 15A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 06 |
| Termination Type | Faston |
| Maximum Operating Temperature | 125°C |
| Sub Type | H15 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 10.16mm |
| Contact Plating | Silver |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 8mΩ |
| Row Loading | D/Z |
| 469-522 | 90° PCB mounting with standard contacts |
| 481-954 | 90° PCB mounting with one Leading Contact (LC) mates first on position z32 |
| 481-960 | 250 blade Plug has Leading Contact position z32 and is terminated with 6.3mm blades for 2.5mm2 wire, for 250 size receptacles (not shrouded) |
| 740-6966 | 250 blade Plug standard contacts with 6.3mm blades for 2.5mm2 wire, for 250 size receptacles (not shrouded) |
Key Features
- Offers 15 contacts arranged in 2 rows with a 10.16 mm pitch.
- Constructed with copper alloy contacts plated with silver for optimal conductivity.
- Supports a current rating of 15A and voltage of 500V AC.
- Features a straight orientation and Faston termination class C1.
- Designed to operate reliably from -55°C to 125°C for demanding environments.
- Housing made from durable glass fibre filled thermoplastic for mechanical robustness.
- Maximum contact resistance of 8 milliohms ensuring low power loss.
Product Description
HARTING 09060152912 is a professional-grade DIN 41612 connector designed as a 15-way, two-row male connector with 10.16 mm pitch. It features Faston Class C1 terminations and a straight orientation suited for PCB mounting.
Manufactured with silver-plated copper alloy contacts, it offers a current capacity of 15A and a voltage rating of 500V AC, making it ideal for electronic components, power applications, and backplane and rack connectors in industrial systems.
The connector housing is composed of glass fibre filled thermoplastic resin, providing excellent durability and mechanical stability in harsh environments. It can operate over a wide temperature range from -55°C to 125°C.
This DIN 41612 Type H15 connector ensures a low maximum contact resistance of 8 milliohms, enhancing efficient signal and power transfer. Its design includes D/Z row loading and is suitable for use in control cards, power supplies, and railway transportation applications.
Offers 15 contacts arranged in 2 rows with a 10.16 mm pitch. Constructed with copper alloy contacts plated with silver for optimal conductivity. Supports a current rating of 15A and voltage of 500V AC. Features a straight orientation and Faston termination class C1.
Designed to operate reliably from -55°C to 125°C for demanding environments. Housing made from durable glass fibre filled thermoplastic for mechanical robustness. Maximum contact resistance of 8 milliohms ensuring low power loss.
Originating from Romania, this connector meets demanding industrial standards though it does not carry specific certification approvals. It is suitable for use in electronics manufacturing, industrial automation, and transportation sectors.
This product is new and packaged for ready insertion into machinery or systems, enhancing production efficiency. Explore more DIN 41612 Connectors and related components on EnvMart for professional industrial electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 15A and a voltage rating of 500V AC.
This connector is designed to operate reliably from -55°C to 125°C.
The contacts are made from copper alloy and are plated with silver for optimal conductivity, while the housing is constructed from glass fibre filled thermoplastic.
It features 15 contacts arranged in 2 rows with a pitch of 10.16 mm.
The maximum contact resistance is 8 milliohms, ensuring low power loss during operation.
It features Faston termination class C1, suitable for PCB mounting.
This model has a straight orientation, making it suitable for various installation scenarios.
It is suitable for use in electronics manufacturing, industrial automation, and transportation sectors.
This connector is a male connector, designed for male connections in applications.
The connector originates from Romania.
It features D/Z row loading, which is beneficial for specific mounting requirements.
While it meets demanding industrial standards, it does not carry specific certification approvals.
