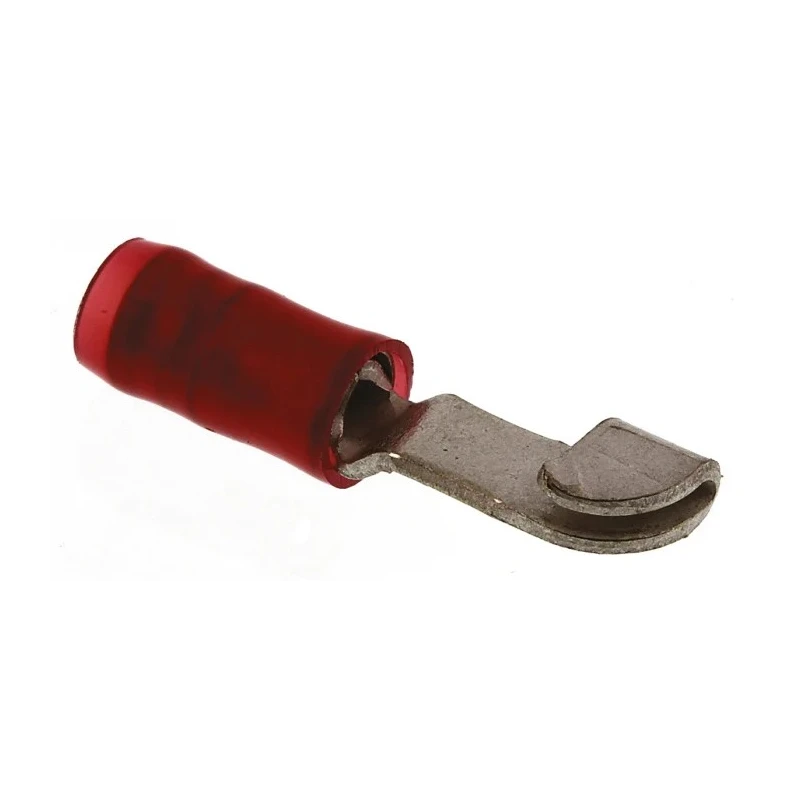

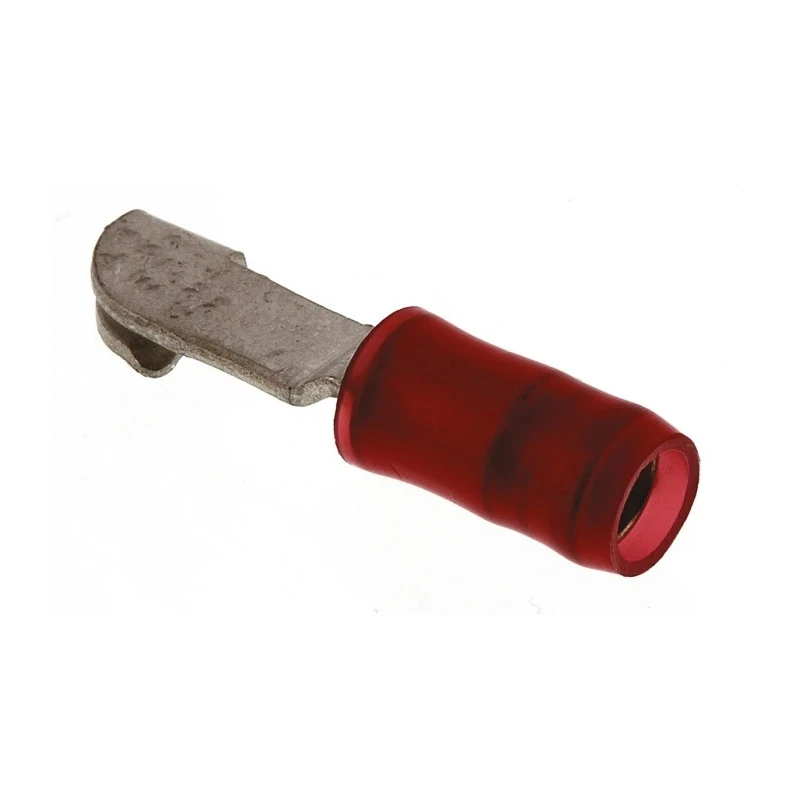

TE Connectivity PIDG Knife Disconnect Splice Connector, Insulated Nylon, Red, Tin-plated Copper Contact, 16 AWG, 22.3 320555
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.18mm |
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.031in |
| Model | 320555 |
| Insulation | Insulated |
| Overall Length | 22.3mm |
| Contact Material | Copper |
| Series | PIDG |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Splice Type | Knife Disconnect |
Key Features
- Constructed with precision-formed copper contacts plated with tin for corrosion resistance.
- The nylon insulation sleeve is color-coded red for easy wire size identification.
- Designed for wires between 16 AWG (maximum) and 22 AWG (minimum).
- Overall connector length of 22.3 mm and diameter of 3.18 mm.
- Offers excellent tensile strength and electrical contact integrity after crimping.
- Meets RoHS standards ensuring environmental compliance.
- Suitable for industrial, electronic, and power connector applications requiring insulated knife disconnect splices.
- Compatible with various automation and manufacturing processes for efficient assembly.
Product Description
TE Connectivity 320555 PIDG Knife Disconnect Splice Connector is engineered for secure and efficient wire-to-wire electrical connections. Featuring a precision-formed copper contact plated with tin, the connector offers excellent electrical conductivity and corrosion resistance. The durable nylon insulation sleeve is color-coded red to identify its suitability for 16 AWG wires (maximum) down to 22 AWG wires (minimum).
The overall length of 22.3 mm and diameter of 3.18 mm ensure compatibility with tight wiring assemblies. The knife disconnect splice type provides reliable mechanical retention and maximum contact surface area, delivering strong tensile strength and electrical continuity after crimping.
This product conforms to RoHS requirements, reflecting its compliance with environmental regulations regarding hazardous substances. The connector is ideal for use in industrial electronics, power distribution systems, automated machinery wiring, and HVAC control panels.
TE Connectivity's PIDG series is widely recognized for enhancing production efficiency and connection reliability. These connectors are well suited for applications demanding quick installations and dependable performance in harsh environments.
Constructed with precision-formed copper contacts plated with tin for corrosion resistance. The nylon insulation sleeve is color-coded red for easy wire size identification. Designed for wires between 16 AWG (maximum) and 22 AWG (minimum).
Overall connector length of 22.3 mm and diameter of 3.18 mm. Offers excellent tensile strength and electrical contact integrity after crimping. Meets RoHS standards ensuring environmental compliance. Suitable for industrial, electronic, and power connector applications requiring insulated knife disconnect splices.
Compatible with various automation and manufacturing processes for efficient assembly. Explore the Electronics & Electricals category at EnvMart for more high-quality connector solutions from TE Connectivity and other leading manufacturers.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is designed for wires between 16 AWG (maximum) and 22 AWG (minimum).
It features precision-formed copper contacts plated with tin for corrosion resistance and a nylon insulation sleeve.
The overall length of this connector is 22.3 mm, and it has a diameter of 3.18 mm.
Yes, it meets RoHS standards, ensuring compliance with regulations regarding hazardous substances.
This model uses a knife disconnect splice type, providing reliable mechanical retention and electrical contact integrity.
It is suitable for industrial electronics, power distribution systems, automated machinery wiring, and HVAC control panels.
The insulation sleeve is color-coded red, indicating its suitability for 16 AWG wires.
The thickness of this connector is 0.031 inches.
The connector is manufactured in India.
The tin plating on the copper contacts offers excellent electrical conductivity and corrosion resistance.
This connector features insulated nylon for added safety and performance.
It is designed for quick installations and dependable performance in harsh environments, making it suitable for various automation and manufacturing processes.
