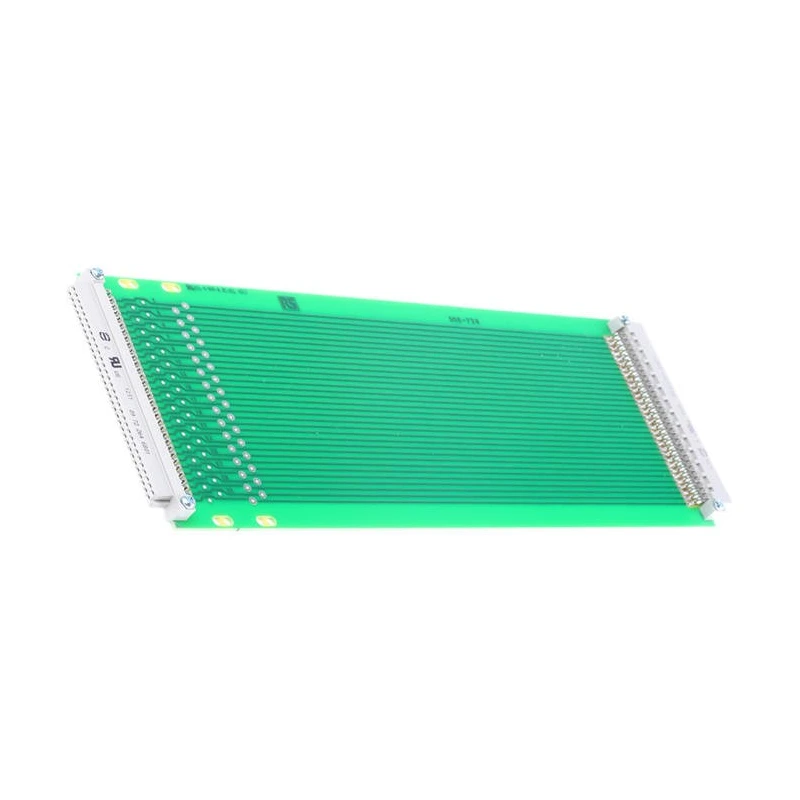

Vero Technologies 64 Way 2 Extender Board Epoxy Glass Fabric Laminate FR4 Material 281.6mm x 100mm 09-3817

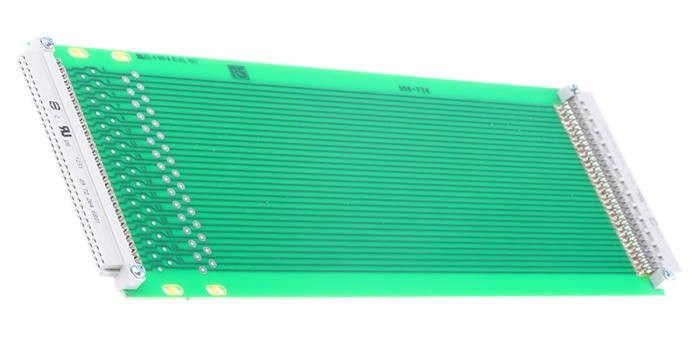

Vero Technologies 09-3817 is a 64 Way 2 Extender Board designed for reliable, versatile use in electronic testing and prototyping environments. It is manufactured from epoxy glass fabric laminate material, classified as FR4 grade, providing excellent mechanical strength and electrical insulation.

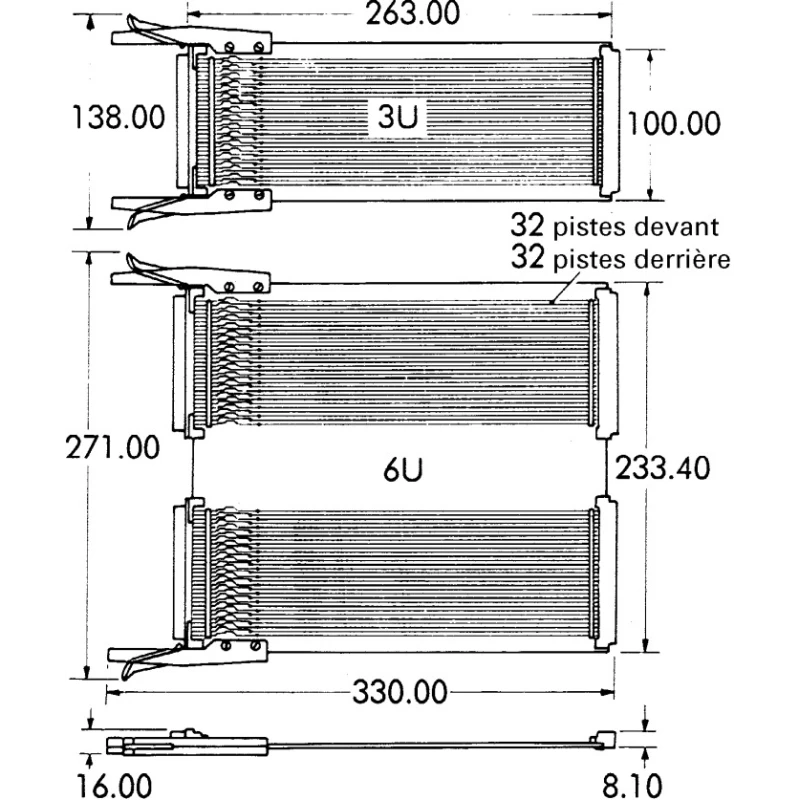

Measuring 281.6 mm in length and 100 mm in width, this double-sided extender board has 64 contacts, making it an ideal solution for extending Eurocards in PC and VME bus applications.

The board is 1.6 mm thick and features a solder resist coating to prevent solder bridging and finger staining, enhancing durability during repeated handling and testing operations. The edge connector fingers are gold plated to 1.5 microns for superior electrical performance and corrosion resistance.

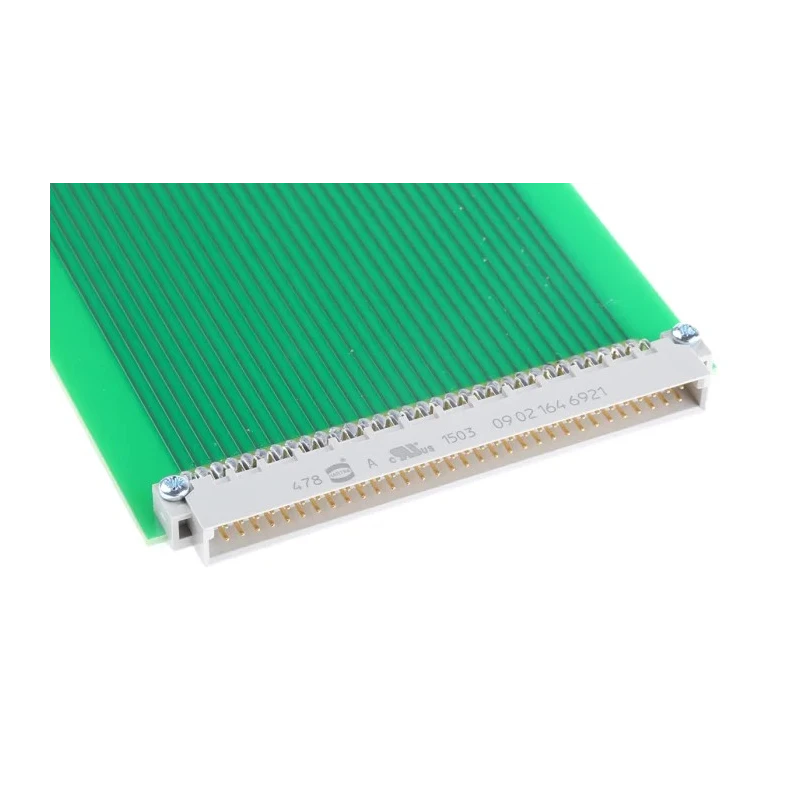

Equipped with DIN 41612 type B connectors, the extender board includes a unique support and ejector mechanism that supports the board under test firmly, facilitating safe insertion and removal without damage. This makes it suitable for demanding industrial laboratory and manufacturing test settings.

The component side of the board incorporates a colander ground plane that provides maximum screening and glitch-free high-speed operation, coupled with complete solder mask protection, ensuring integrity in sensitive electronic test scenarios.

This extender board complies with RoHS standards, meeting environmental sustainability requirements. It is made in the United Kingdom, ensuring quality manufacturing standards. Constructed from high-grade epoxy glass fabric laminate with FR4 specification.

64-way double-sided configuration for extensive prototyping flexibility. 1.6 mm thickness with solder resist coating prevents defects during soldering. Gold plated edge connectors for reliable signal integrity and durability.

Includes support and ejector systems for secure card testing operations. Perfect for industrial, laboratory, and manufacturing applications involving electronic testing. RoHS compliant, made in the United Kingdom ensuring adherence to quality and environmental standards.
