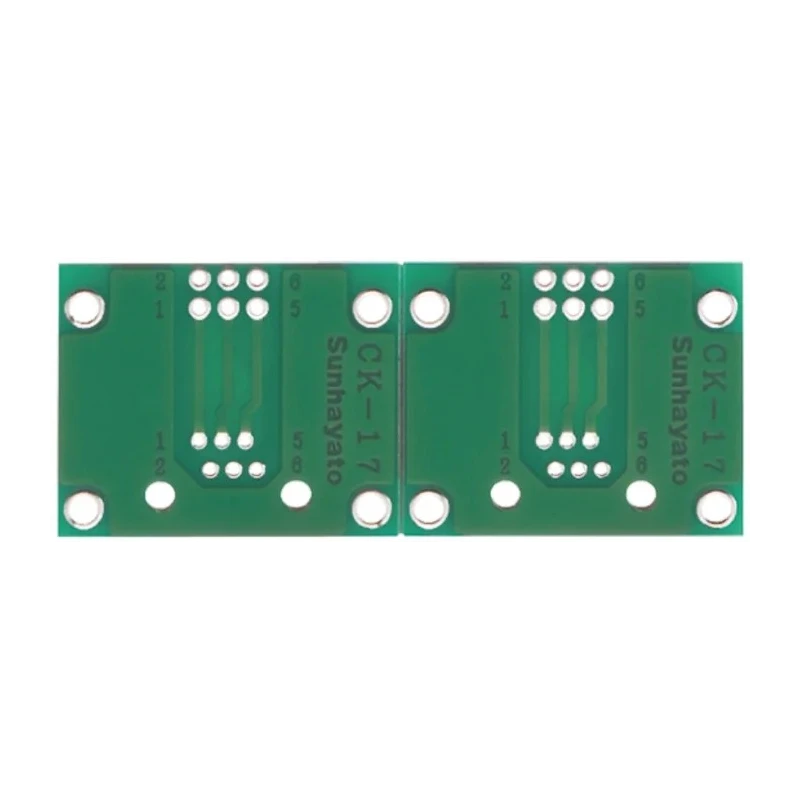

Sunhayato 12 Way 2 Extender Board Converter Board 60.96 mm Length FR4 Epoxy Glass Fabric Laminate CK-17

Sunhayato CK-17 12 Way 2 Extender Board Converter Board is engineered for seamless conversion of modular 6//6 or 8//8 type connectors to a 2.54mm (0.1 inch) pitch, making it ideal for PCB prototyping, electronic component development, and ESD controlled environments. Fabricated from high-quality 1.6mm thick FR4 epoxy glass fabric laminate, this board ensures mechanical durability, electrical insulation, and dimensional stability.

The product includes two extender boards combined into a single V-groved sheet for convenient usage and custom separation. It features plated-through holes that support robust electrical connectivity, with component holes sized at 0.9mm diameter to accommodate various electronic components.

Four mounting holes of 2.2mm diameter provide secure attachment options to enclosures and experimental setups, enhancing mechanical stability during use.

This converter board supports industrial, laboratory, educational, and prototype circuit assembling applications where modular connector adaptation and pitch conversion are necessary. The compact footprint of 60.96mm length by 24.13mm width allows efficient integration in small form factor projects.

Manufactured in Japan, the CK-17 adheres to strict quality control to meet the demands of electronics engineers and technicians. It is a critical component for electronics component prototyping, repair, and development tasks requiring reliable connector conversion and pitch standardization.

The board converts modular connectors to 2.54mm pitch enabling prototyping flexibility. Constructed from FR4 epoxy glass laminate for strength and insulation. Includes plated-through holes and component holes sized 0.9mm for component allowance.

Four mounting holes for secure fixture in various setups. Compact size fits diverse electronic applications. Supplied as a two-board V-groved sheet for convenience. Connector socket included for easy interface. Japanese origin ensures quality and durability.
