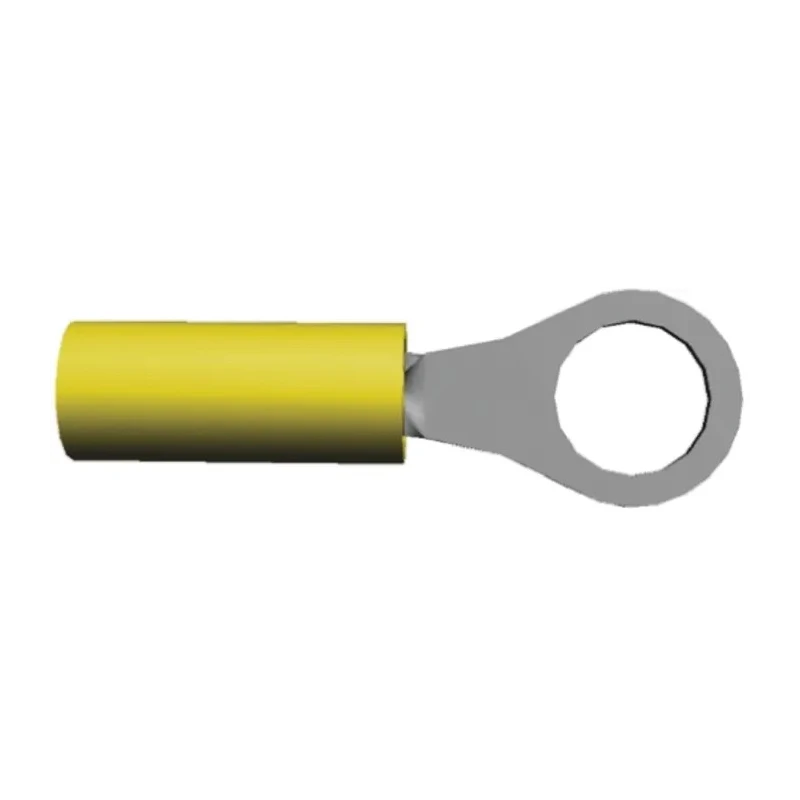

TE Connectivity PIDG Insulated Ring Terminal M2.5 Stud Size, 26 AWG to 22 AWG Wire Size, Nylon Insulation, Yellow 323914
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 323914 |
| Insulation | Insulated |
| Overall Length | 16.41mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Outer Ring Diameter | 12.7mm |
| Inner Ring Diameter | 6.73mm |
| Stud Size | M2.5 |
Key Features
- Features a nylon insulated yellow sleeve for easy wire size identification.
- Designed for use with M2.5 stud size for secure mounting.
- Copper contact material with tin plating ensures durability and corrosion resistance.
- Overall length of the terminal is 16.41 mm for compact applications.
- Serrated wire barrel enhances contact and tensile strength after crimping.
- Suitable for industrial, automotive, aerospace, and electrical panel wiring applications.
- Meets RoHS standards for environmental safety and compliance.
- Operating temperature up to 105°C supports high temperature environments.
Product Description
TE Connectivity 323914 PIDG Insulated Ring Terminal is engineered for robust and consistent electrical connections in demanding circuit environments. It features a high conductivity copper body precision formed with a copper sleeve inside the wire barrel, providing enhanced wire insulation support and preventing fraying of wire strands. The serrated barrel ensures excellent electrical contact and tensile strength once crimped with a matching tool.
The yellow nylon insulation sleeve allows quick wire size identification and offers electrical insulation protection. Designed for wire sizes ranging from 26 AWG to 22 AWG and a stud size of M2.5, this terminal is compact with an overall length of 16.41 mm and a thickness of 0.79 mm. The contact plating with tin extends the life of the terminal by protecting against oxidation and corrosion.
This ring terminal meets RoHS compliance standards and operates under temperatures up to 105°C, making it suitable for a wide range of industrial and commercial applications such as instrumentation, control panels, power supplies, transportation, lifting equipment, motor connections, aerospace, and household appliances.
Its funnelled wire entry facilitates fast wire insertion and reliable crimping, ensuring dependable electrical performance and mechanical strength in critical systems. The product is manufactured in the United States and adheres to high production and quality control standards.
Features a color-coded nylon insulation sleeve for wire gauge identification and electrical isolation. High conductivity copper construction with tin plating for reliable signal and power transfer. Serrated wire barrel improves contact and mechanical strength post crimping.
Designed for 26 AWG to 22 AWG wires and M2.5 stud size compatibility. Temperature rating up to 105°C for demanding applications. Suitable for industrial, aerospace, automotive, and electrical panel wiring uses. Complies with RoHS environmental standards.
Manufactured in the United States ensuring quality and traceability. Explore related products in the Electronics & Electricals category on EnvMart for all your wire termination needs.
Explore more products in our Ring Terminals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this ring terminal is 105°C, making it suitable for demanding applications.
This terminal is designed for wire sizes ranging from 26 AWG to 22 AWG.
The stud size for this model is M2.5, allowing for secure mounting.
The contact material of this terminal is copper, which is plated with tin to enhance durability and corrosion resistance.
The overall length of this terminal is 16.41 mm, making it compact for various applications.
This terminal features nylon insulation, which provides electrical insulation protection and allows for quick wire size identification.
Yes, this terminal meets RoHS standards for environmental safety and compliance.
The thickness of this terminal is 0.79 mm.
This terminal is suitable for industrial, automotive, aerospace, and electrical panel wiring applications.
The inner ring diameter is 6.73 mm and the outer ring diameter is 12.7 mm.
The serrated wire barrel enhances electrical contact and tensile strength after crimping, ensuring reliable performance.
This terminal is manufactured in the United States, ensuring quality and traceability.
