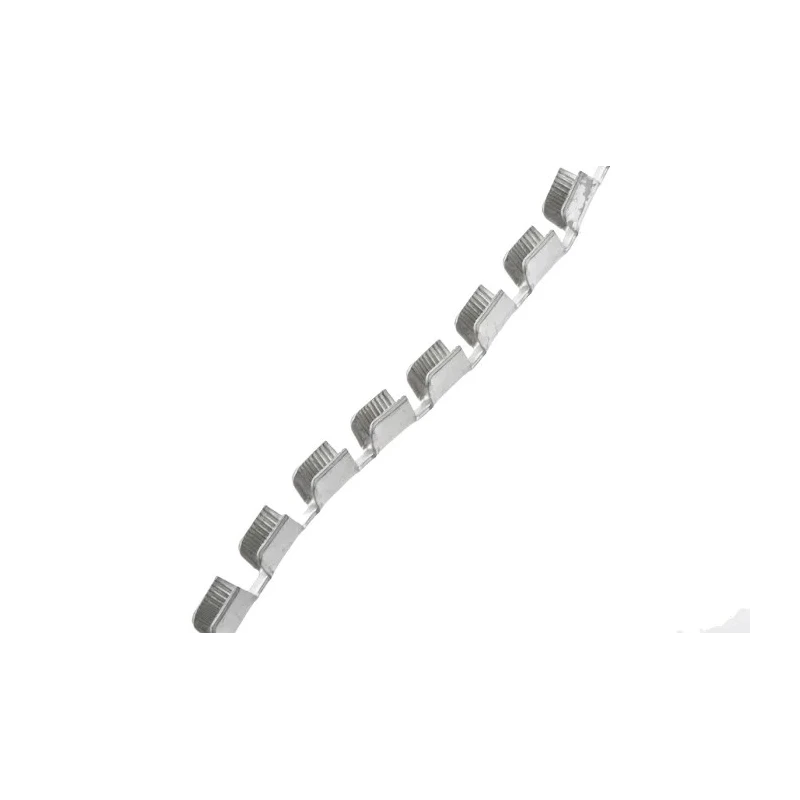

TE Connectivity AMPLIVAR Pigtail Splice Connector Uninsulated Brass Tin Crimp 13.5 AWG 62306-2

TE Connectivity 62306-2 AMPLIVAR Pigtail Splice Connector is a high-performance electrical splice designed specifically for uninsulated copper and aluminium magnet wires rated at 13.5 AWG. This connector enables reliable and contaminant-free electrical connections by employing insulation displacing serrations within the barrel, eliminating the need to pre-strip wires before crimping.

The connector barrel's sharp serrations pierce the magnet wire insulation during crimping, ensuring a large contact area for superior electrical conductivity and tensile strength. This results in excellent resistance to vibration and corrosion, making the splice suitable for demanding industrial and electrical applications.

These splice connectors allow termination of up to three magnet wires or combinations of copper magnet wire and either solid or stranded lead wires within the same barrel. The contact material is brass with tin plating, enhancing corrosion resistance and contact reliability.

Applications include motor windings, coil and transformer connections, solid wire connections, lighting ballasts, power supplies, starters, and alternators. The robust construction ensures free operation from contaminants such as stripper residue and solder flux, providing a clean and dependable electrical joint.

This compact connector features an overall length of 8 mm and supports wire sizes ranging from 18.5 AWG minimum to 13.5 AWG maximum. Its crimp termination style and RoHS compliance make it an industrial-grade choice for electronic, power, and electrical component assemblies.

Designed for terminating copper and aluminium magnet wire with or without standard lead wire. Insulation-displacing serrations allow crimping without pre-stripping wires. Provides excellent tensile strength and vibration and corrosion resistance.

Crimp barrel accepts up to three magnet wires simultaneously. Contact material is brass with tin plating for enhanced conductivity. Suitable for motor windings, coil connections, transformer windings, lighting ballasts, and power supplies.
