Molex 0.5 mm Pitch 20 Way Right Angle Male Easy-On FPC Connector ZIF Top Contact 52745-2097

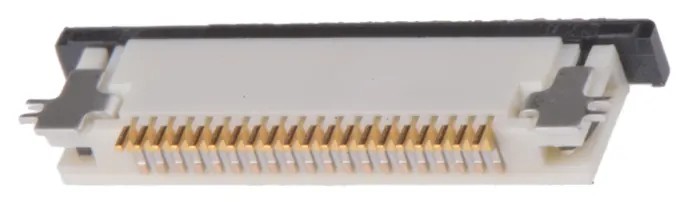

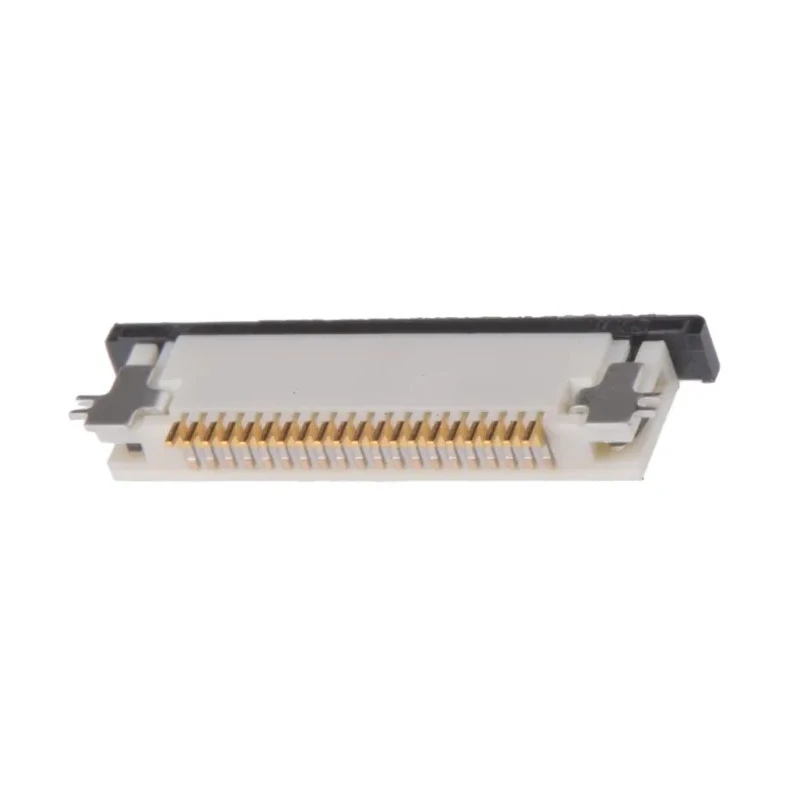

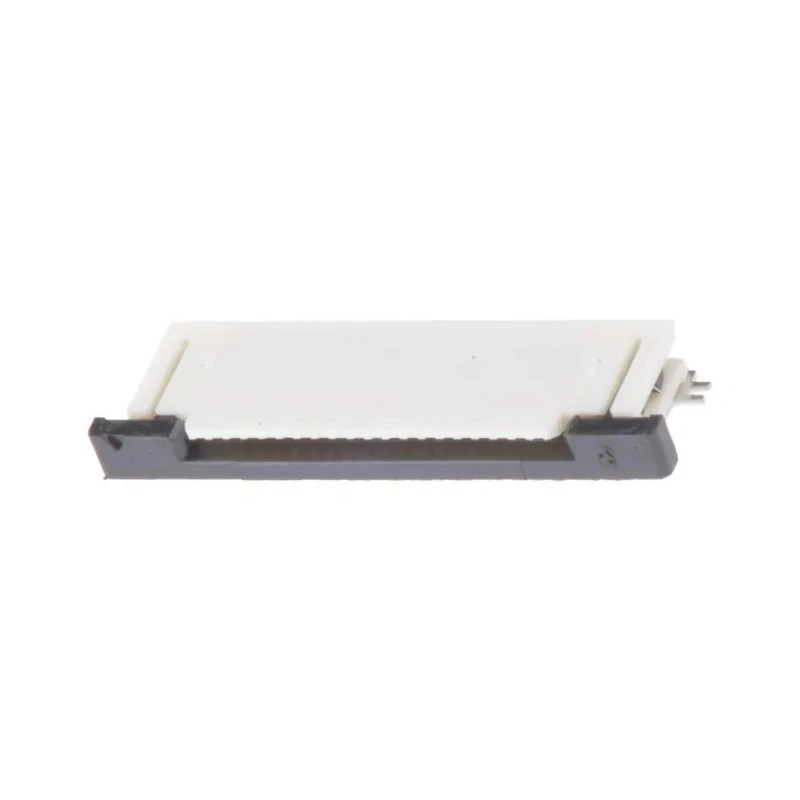

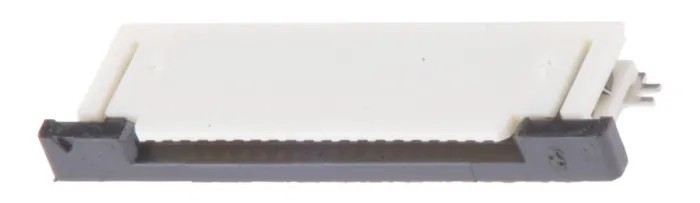

Molex 52745-2097 is a 0.5 mm pitch, 20 way right angle male Easy-On FPC connector featuring Zero Insertion Force (ZIF) top contact technology. This surface mount connector is designed for high-density flexible printed circuit (FPC) interconnections, facilitating reliable and compact solutions for signal and data transmission in electronics manufacturing.

The male connector with right angle orientation enables efficient PCB routing and tight packaging, making it ideal for applications with space constraints. Contacts are crafted from phosphor bronze, plated with gold over nickel for enhanced electrical conductivity and corrosion resistance, while the polyamide housing ensures durability and insulation.

This connector series includes features such as a slide-type actuator for secure FPC engagement and movable contacts that maintain steady electrical contact despite cable movement. Solder tabs on the connector base provide solid PCB retention and strain relief to safeguard solder joints.

Operating at up to 50 V and 500 mA current, the connector supports reliable function between -20°C and 85°C operating temperatures. Locking mechanisms secure the connection, preventing accidental disconnection in automotive, consumer electronics, datacommunications, medical devices, and mobile applications.

0.5 mm pitch with 20 contacts ensures compact, high-density connections. ZIF top contact provides zero insertion force for repeated cycling with minimal wear. Phosphor bronze contacts with gold plating support durability and conductivity.

Polyamide housing offers mechanical strength and insulation. Solder tabs enhance PCB mechanical retention and strain relief. Slide-type actuator ensures secure and easy FPC insertion. Designed for operating voltages up to 50 V and current of 500 mA.

Thermal range from -20°C to 85°C meets industrial requirements. Locking mechanism ensures connection reliability under vibration and stress.

Molex Easy-On FPC connectors are extensively used in automotive navigation systems, consumer electronics, digital cameras, medical monitoring devices, tablets, smartphones, and telecommunication equipment. Their space-saving design and reliable contact retention make them suitable for a wide range of industrial and commercial applications.
