| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.1mm |
| Length | 3.4mm |
| Model | BSZ086P03NS3GATMA1 |
| Width | 3.4mm |
| Mount Type | Surface |
| Series | OptiMOS P |
| Maximum Operating Temperature | 150°C |
| Package Type | TSDSON |
| Minimum Operating Temperature | -55°C |
| Pin Count | 8 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 40A |
| Maximum Drain Source Voltage Vds | 30V |
| Maximum Drain Source Resistance Rds | 13.4mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 69W |
| Typical Gate Charge Qg @ Vgs | 43.2nC |
| Maximum Gate Source Voltage Vgs | 25V |
| Forward Voltage Vf | -1.1V |

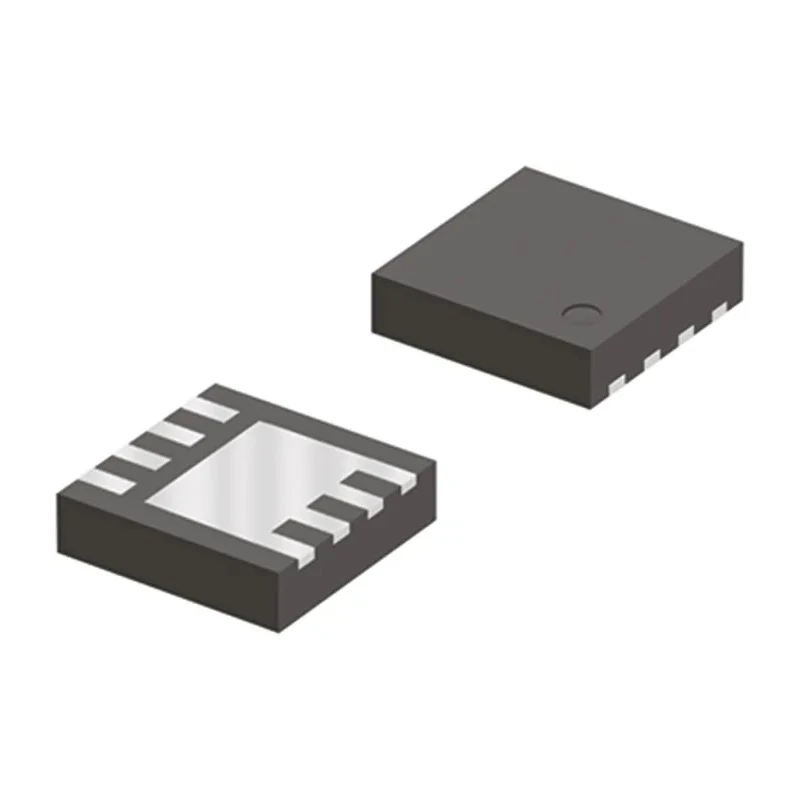

Infineon BSZ086P03NS3GATMA1 is a P-Channel enhancement mode MOSFET specifically engineered for surface-mount power switching in industrial environments. Its 30 V drain-source voltage rating and 40 A continuous drain current capability make it suitable for high-current switching roles with efficiency and thermal robustness.
This device is housed in an 8-pin thin small-outline package (TSDSON) with a compact footprint of 3.4 mm length and width, and a low profile height of 1.1 mm. Such a design allows for dense assembly and space savings in modern electronics.
It features a low on-resistance of 13.4 mΩ, which reduces conduction losses, and a typical gate charge of 43.2 nC matched for balanced switching speeds and drive requirements. The MOSFET tolerates gate-source voltages up to 25 V, ensuring rugged operational reliability.
Designed to function reliably over a wide temperature range from -55°C up to 150°C, the device is ideal for various industrial, telecommunications, and power management applications.
Operates from -55°C to 150°C for harsh industrial conditions. Low Rds(on) at 13.4 mΩ for efficient conduction. Handles a maximum continuous drain current of 40 A. Maximum power dissipation of 69 W supports thermal load. Compact 8-pin TSDSON package supports automated assembly.
Typical gate charge of 43.2 nC balances speed and drive currents. Maximum gate-source voltage rating of 25 V enhances robustness. Applications in synchronous buck converters, DC motor control, telecoms, server power, and battery management.
This MOSFET supports demanding power switching applications where compact form factors, efficiency, and wide temperature operation are critical. It is suitable for manufacturing, industrial automation, and power supply designs requiring reliable, high-current P-Channel MOSFET solutions.
