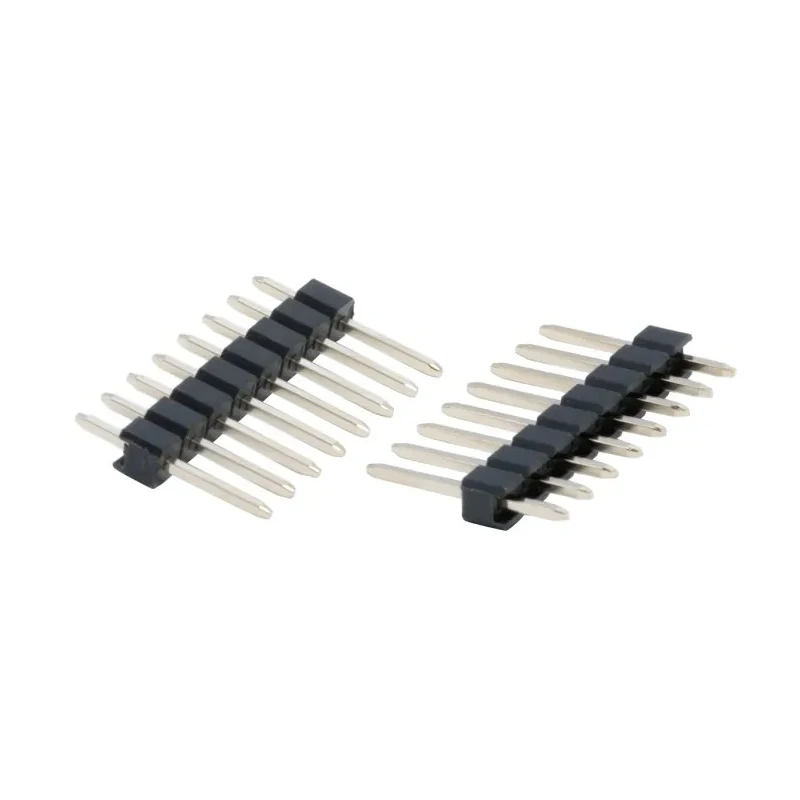

HARWIN M20 Series Straight Through Hole 8-Contact Pin Header 2.54 mm Pitch 1 Row Unshrouded M20-9990845
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 3A |
| Model | M20-9990845 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | M20 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6.1mm |
Key Features
- This pin header features 8 male contacts arranged in a single row.
- It has a 2.54 mm pitch suitable for standard PCB headers.
- Constructed with a durable nylon housing for high temperature resistance.
- The contacts are made of brass with gold plating for reliable conductivity.
- Designed for through hole mounting with solder termination.
- Rated for a current of 3A with operating temperatures from -40°C to 105°C.
- Tail pin length is 3 mm and mating pin length is 6.1 mm ensuring secure connections.
- Unshrouded design provides easy access to pins for soldering and probing.
Product Description
HARWIN M20-9990845 is a high-quality straight through hole pin header designed for electronic PCB connector applications. Featuring 8 male contacts arranged in a single row with a 2.54 mm pitch, this unshrouded pin header is suited for secure, reliable soldering and electrical connection.
The housing is constructed from nylon thermoplastic, enabling it to withstand elevated temperatures involved in reflow soldering processes. The brass contacts are plated with gold to ensure excellent electrical conductivity and corrosion resistance, maintaining reliable current flow up to 3A.
This pin header’s termination type is solder, optimized for through hole mounting. It operates reliably within a temperature range of -40°C to 105°C, making it applicable for various industrial, consumer electronics, communications, drives, controls, and embedded systems.
Its design incorporates tail pin lengths of 3 mm and mating pin lengths of 6.1 mm, providing good mechanical and electrical engagement with corresponding sockets or wire housings. The unshrouded construction allows convenient access to contacts for testing and soldering processes.
Main applications include board-to-board and wire-to-board connections in manufacturing of motherboards, embedded PCs, industrial monitors, and large electronic systems. This connector series offers versatility through options such as different pin counts, mating lengths, and configurations to support diverse electronic design needs.
This pin header supports multiple configuration options with varying pin counts and mating pin lengths. Its thermoplastic housing is durable and capable of enduring reflow soldering processes. The gold plated brass contacts deliver reliable electrical performance in harsh environments.
Unshrouded design facilitates easier access for soldering and electrical probing. Suitable for industrial, communications, consumer electronics, and embedded systems applications. EnvMart customers can explore the extensive range of HARWIN connectors and accessories within PCB connectors category to optimize their electronic assembly solutions.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pin header is rated for a current of 3A.
The contacts in this model are arranged with a pitch of 2.54 mm.
The housing is made of nylon, while the contacts are constructed from brass and plated with gold for conductivity.
It operates reliably within a temperature range of -40°C to 105°C.
This model features 8 male contacts arranged in a single row.
It is designed for through hole mounting with solder termination.
The tail pin length is 3 mm, and the mating pin length is 6.1 mm.
This pin header is suitable for board-to-board and wire-to-board connections in various electronic applications, including industrial and consumer electronics.
This model features an unshrouded design, allowing easy access to the pins for soldering and probing.
It supports both board-to-board and wire-to-board connector systems.
The termination type for this model is solder, optimized for secure connections.
The country of origin for this pin header is India.
