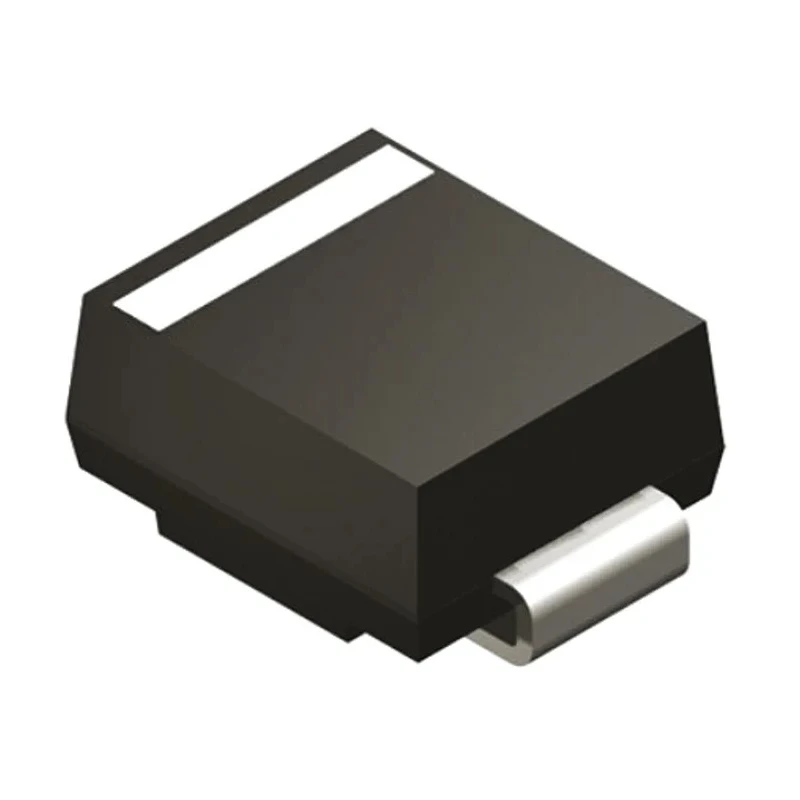

DiodesZetex 1-Element Bi-Directional TVS Diode 600W, 2-Pin DO-214 SMBJ5.0CA-13-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 2.42mm |
| Length | 4.57mm |
| Model | SMBJ5.0CA-13-F |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | SMBJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 9.2V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 6.4V |
| Maximum Reverse Stand-off Voltage Vwm | 5V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 10mA |
| Maximum Peak Pulse Current Ippm | 65.2A |
| Maximum Reverse Leakage Current | 800μA |
Key Features
- Single diode configuration for effective transient voltage suppression.
- Bi-directional design allows protection against voltage spikes in both polarities.
- Minimum breakdown voltage of 6.4V ensures reliable clamping performance.
- Peak pulse power rating of 600W offers robust surge protection.
- Maximum reverse leakage current limited to 800μA for low power loss.
- Compact DO-214 package with 4.57mm length and 3.94mm width for PCB space saving.
- Operational temperature range from -55°C to 150°C suits harsh industrial environments.
- Maximum peak pulse current capacity of 65.2A supports high-energy transients.
Product Description
DiodesZetex model SMBJ5.0CA-13-F is a 1-element bi-directional transient voltage suppressor (TVS) diode, designed to protect electronic circuits from voltage surges and transient spikes. This diode offers a peak pulse power dissipation rating of 600W in a compact 2-pin DO-214 surface mount package, making it suitable for use in industrial, electronic, and semiconductor manufacturing applications.
The diode features a single element configuration with a minimum breakdown voltage of 6.4V, and a maximum reverse stand-off voltage of 5V, providing reliable voltage clamping to safeguard sensitive components. Its low maximum reverse leakage current of 800 microamps contributes to energy efficiency during normal operation.
With a clamping voltage of 9.2V and a maximum peak pulse current of 65.2A, the SMBJ5.0CA-13-F delivers rapid transient suppression, ensuring electronic system longevity in environments prone to voltage spikes. The device supports a wide operating temperature range from -55°C to 150°C, making it suitable for harsh industrial and automotive applications where temperature extremes are common.
The surface mount DO-214 package dimensions of 4.57mm length, 3.94mm width, and 2.42mm height allow for compact PCB designs and compatibility with automated assembly processes. While this diode does not include ESD protection or automotive certifications, it remains a versatile component for general industrial electronic circuit protection needs.
Single diode configuration for transient voltage suppression. Bi-directional operation protects against positive and negative voltage spikes. 600W peak pulse power dissipation capability. Compact surface mount DO-214 package.
Operating temperature range from -55°C to 150°C. Low reverse leakage current of 800μA. Maximum peak pulse current of 65.2A for high energy transient protection. Clamping voltage of 9.2V for effective surge suppression. Surface mount design suitable for automated production.
This TVS Diode is widely used in electronic equipment, semiconductor devices, power supplies, and automotive circuits to ensure protection against transient voltage conditions. It is part of the SMBJ series by DiodesZetex, trusted in industrial and commercial electronics manufacturing.
Explore more semiconductor protection solutions and components at EnvMart to enhance your industrial and electronic manufacturing projects with reliable, high-quality protective devices.
