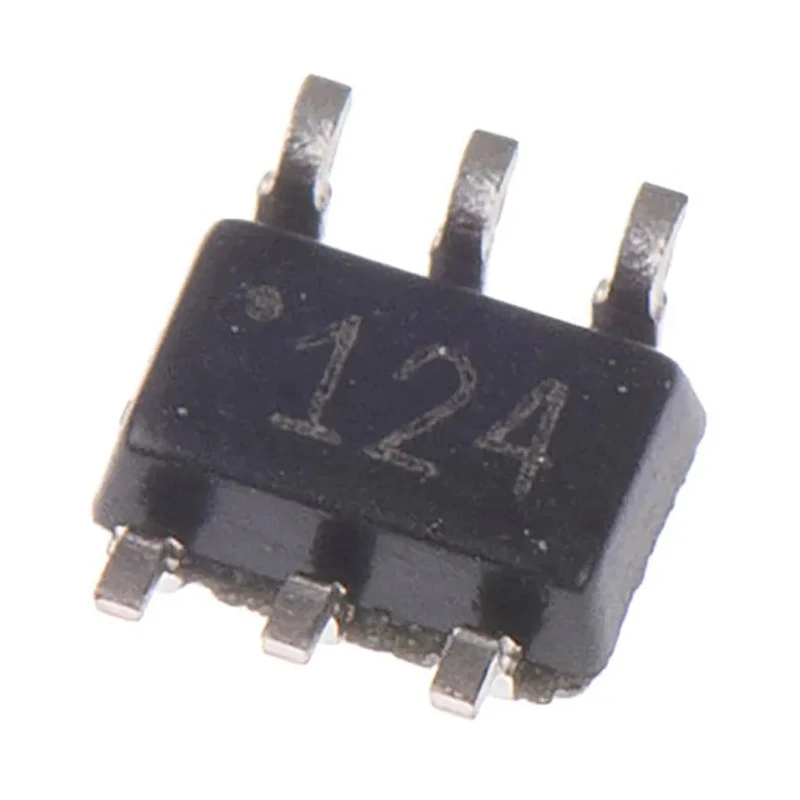

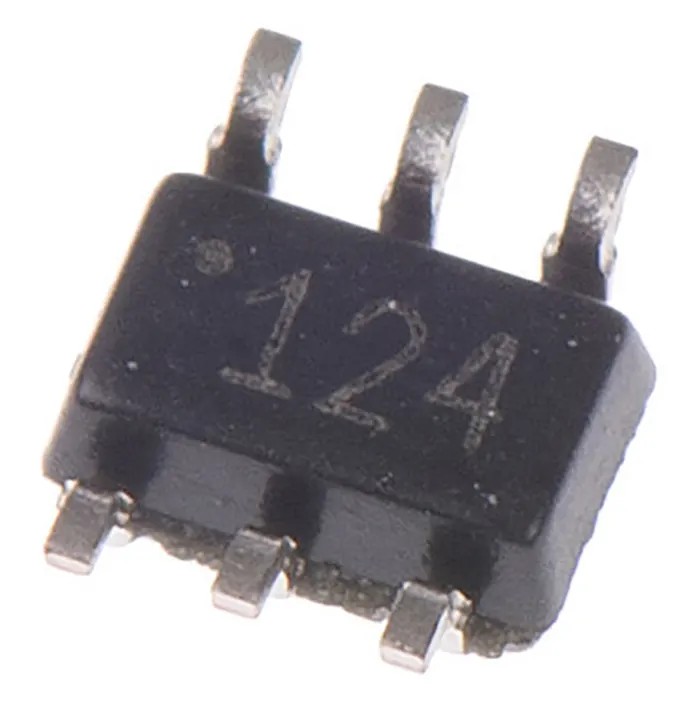

Texas Instruments Analogue Switch, 1 CMOS Single SPDT Multiplexer Demultiplexer, 6-Pin SOT-323 TS5A9411DCKR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1mm |
| Length | 2.15mm |
| Model | TS5A9411DCKR |
| Width | 1.4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | TS5A9411 |
| Configuration | Single SPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 6 |
| Number of Elements per Chip | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 2.25V |
| Multiplexer/Demultiplexer | Multiplexer, Demultiplexer |
| Maximum On State Resistance | 10Ω |
Key Features
- Operates with a minimum supply voltage of 2.25 V and maximum of 5.5 V.
- Offers low maximum on-state resistance of 10 ohms for efficient signal transmission.
- Temperature range from -40°C to 85°C ensures wide operating conditions.
- Surface mount configuration with compact SOT-323 package type.
- Compatible with CMOS/TTL output types and includes one element per chip.
- Series TS5A9411 designed for high performance analogue switching and multiplexing.
Product Description
Texas Instruments TS5A9411DCKR analogue switch is a single CMOS signal switch designed for use as a multiplexer or demultiplexer in electronic circuits. It is housed in a 6-pin SOT-323 surface mount package and supports a logic family of CMOS.
This device operates efficiently between 2.25 V and 5.5 V supply voltage, making it suitable for low voltage portable and industrial applications. The device features a low on-state resistance of 10 ohms to minimize signal loss and distortion.
It supports a single SPDT configuration with one switching element per chip and is compatible with CMOS/TTL output types. The compact physical dimensions (2.15 mm length, 1.4 mm width, 1 mm height) enable high-density PCB layout designs.
The device functions reliably across a wide temperature range from -40°C to 85°C, suitable for automotive and industrial environments where temperature stresses can be significant.
Analogue switches like the TS5A9411DCKR simplify signal routing, reduce duplicated circuitry, and enable connector sharing in electronic systems. Their high performance and compact size make them ideal for embedding in multiplexing and demultiplexing functions.
Operates at supply voltages from 2.25 V to 5.5 V. Maximum on-state resistance of 10 ohms ensures low signal attenuation. Compact 6-pin SOT-323 surface mount package with small dimensions. Temperature tolerance from -40°C up to 85°C for varied applications.
Single SPDT configuration with one element per chip for flexible switching. Compatible with CMOS and TTL logic output types.
This product is used in various industrial, laboratory, and electronic equipment applications for switching signals efficiently. It is part of Texas Instruments' TS5A9411 series analogue switches and multiplexers, known for performance and reliability.
