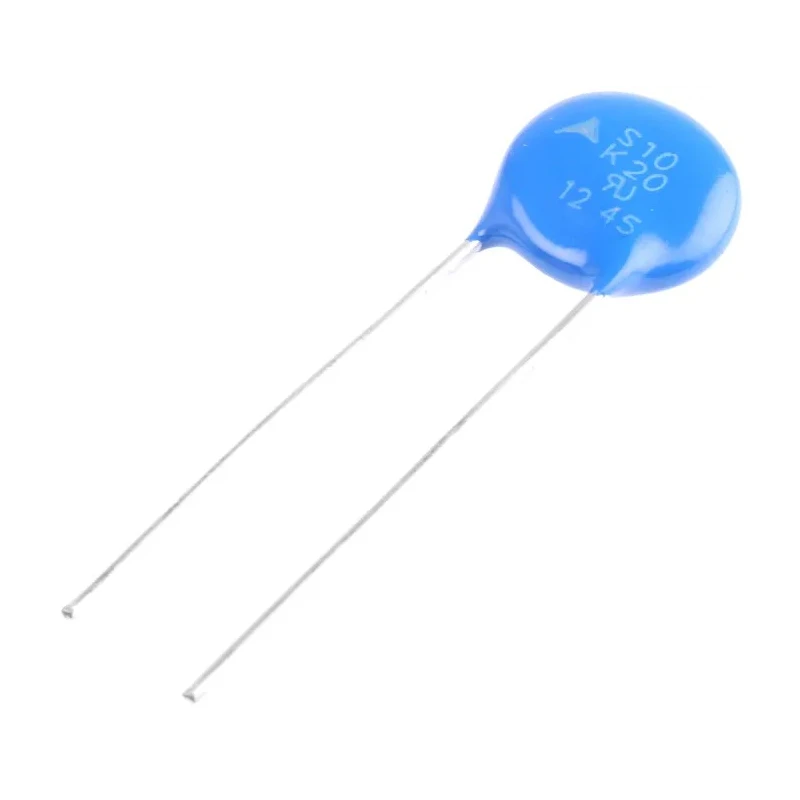

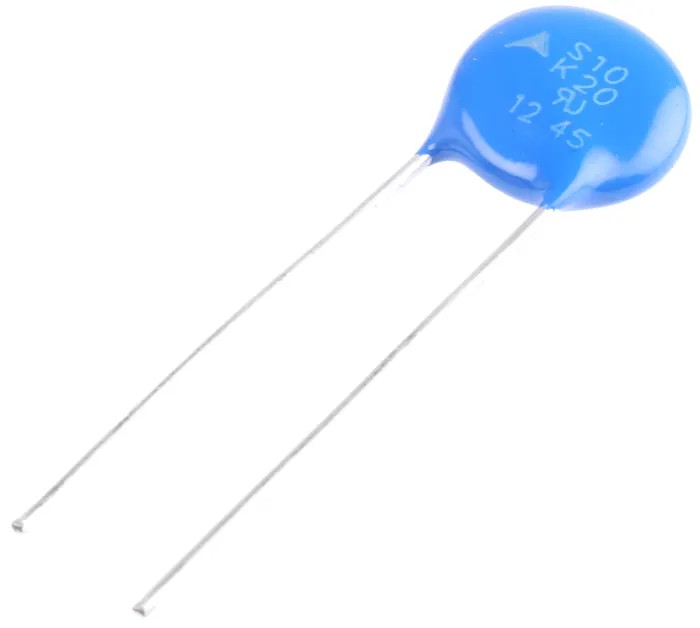

TDK Standard Metal Oxide Varistor 33 V, 3.65 nF Capacitance, 5 A Clamping Current, 2970 V Clamping Voltage B72210S0200K101

Free Delivery in India | Lowest Global Shipping Charges

TDK Standard Metal Oxide Varistor 33 V, 3.65 nF Capacitance, 5 A Clamping Current, 2970 V Clamping Voltage B72210S0200K101



Category Varistor Brand TDK Condition New

Specifications

Country of Origin	India
Diameter	12mm
Brand	TDK
THICKNESS	4.5mm
Length	39mm
Model	B72210S0200K101
Depth	4.5mm
Mount Type	Lead
Series	Standard
Energy Rating	1J
Maximum Operating Temperature	85°C
Capacitance	3.65nF
Minimum Operating Temperature	-40°C
Maximum dc Voltage	1465V dc
Standards/Approvals	UL, IEC, CQC, CSA, VDE
Lead Pitch	7.5mm
Maximum AC Voltage	1100V ac
Clamping Voltage VC	2970V
Clamping Current	5A
Maximum Surge Current	500A
Varistor Voltage	33 V
Wurth Elektronik, WE-VD Varistor 4.25 nF 5 A, Clamping 65 V, Varistor 33 VBrand	Wurth Elektronik
Panasonic, V Surge Absorber 6.3 nF 5 A, Varistor 33 VBrand	Panasonic

Key Features

Rated clamping voltage of 2970 V suitable for high voltage transients.
Clamping current capacity of 5 A for robust surge handling.
Epoxy coated ceramic body with tinned copper wire leads for durability.
Operating temperature range from -40°C to 85°C for wide environmental tolerance.
Energy rating of 1 Joule for transient energy absorption.
Diameter of 12 mm and length of 39 mm providing compact form factor.
Lead pitch spacing of 7.5 mm compatible with standard PCB layouts.
Complies with UL, IEC, CQC, CSA, and VDE safety standards.

Product Description

TDK B72210S0200K101 Standard Metal Oxide Varistor is designed for reliable surge voltage suppression in electronic circuits, providing protection against transient overvoltages. It features a metal oxide oxide ceramic body with an epoxy coating to ensure long-term stability and electrical performance.

This varistor has a capacitance of 3.65 nF and a varistor voltage rating of 33 V, making it suitable for low voltage surge protection applications. The clamping voltage of 2970 V and clamping current of 5 A enable it to effectively handle high transient voltages and currents, protecting downstream components.

The product is constructed with tinned copper wire leads enabling solderable connections, with a lead pitch of 7.5 mm facilitating standard PCB mounting. Its dimensions of 12 mm diameter, 39 mm length, and 4.5 mm thickness provide a compact solution optimal for space-limited designs.

Operational temperature range from -40°C to 85°C allows use in diverse industrial and commercial environments. The varistor is rated for an energy absorption of 1 Joule and a maximum surge current of 500 A (8/20 μs waveform), providing durable transient suppression capabilities.

TDK's varistor complies with recognized international safety certifications including UL, IEC, CQC, CSA, and VDE, ensuring its suitability for global market requirements. Rated clamping voltage of 2970 V suitable for high voltage transients.

Clamping current capacity of 5 A for robust surge handling. Epoxy coated ceramic body with tinned copper wire leads for durability. Operating temperature range from -40°C to 85°C for wide environmental tolerance. Energy rating of 1 Joule for transient energy absorption.

Compact dimensions suitable for space-constrained installations. Lead pitch spacing compatible with standard PCB designs. Compliant with UL, IEC, CQC, CSA, and VDE standards.

This Varistor is widely used in industrial, commercial, and domestic electronic circuits to protect sensitive components from voltage spikes caused by lightning, switching surges, and other transient events. Its high reliability and international certifications make it ideal for rigorous quality applications.
