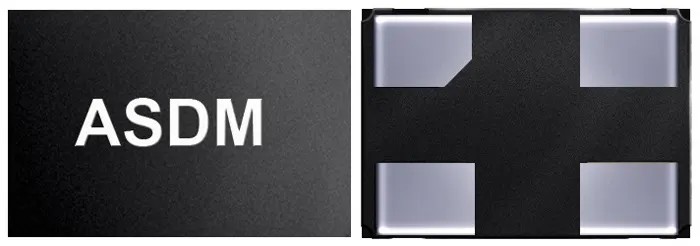

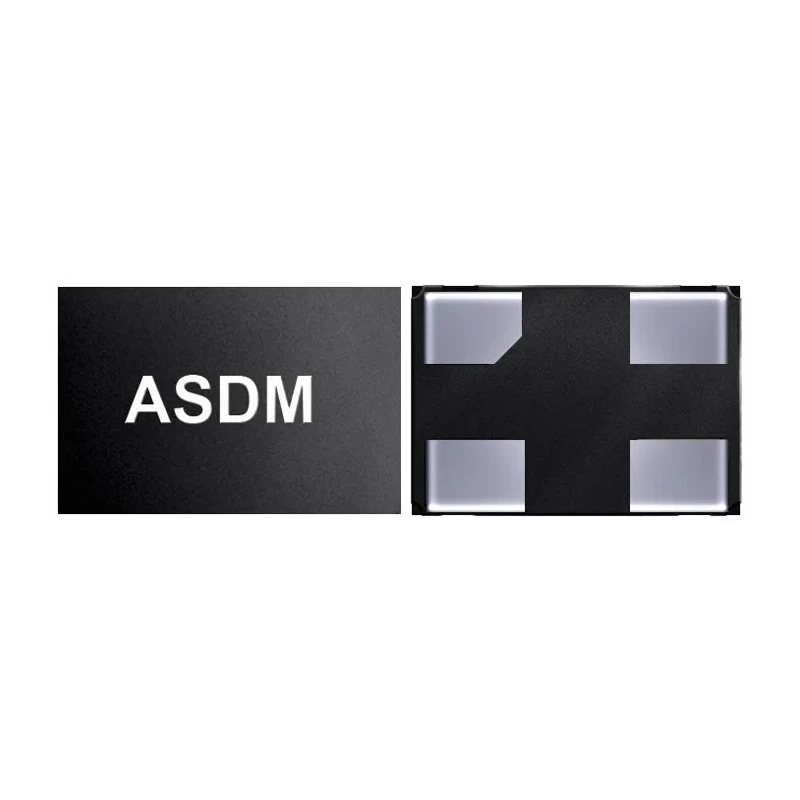

Abracon 12 MHz MEMS Oscillator 4-Pin Surface Mount ±50 ppm ASDM1-12.000MHZ-LC-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.85mm |
| Length | 2.5mm |
| Model | ASDM1-12.000MHZ-LC-T |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ASDM |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Output Frequency | 12MHz |
| Standards/Approvals | RoHS/RoHS II |
| Pin Count | 4 |
| Output Level | LVCMOS |
| Maximum Operating Supply Voltage | 3.3V |
| Minimum Operating Supply Voltage | 1.8V |
Key Features
- This oscillator features a compact QFN plastic package with dimensions 2.5mm x 2.0mm x 0.85mm.
- It operates with low power consumption and supports supply voltages from 1.8V to 3.3V.
- The device maintains exceptional stability over an operating temperature range of -40°C to 85°C.
- Output level of the oscillator is LVCMOS suitable for various digital circuits.
- Packaged in tape and reel form to support efficient automated assembly processes.
- Designed as a lower cost replacement for crystal oscillators with high vibration and shock tolerance.
- Applicable in consumer electronics, portable devices, military, automotive, and industrial equipment environments.
- The oscillator includes four pins for easy surface mounting on PCBs.
Product Description
Abracon ASDM1-12.000MHZ-LC-T MEMS Oscillator is a high-performance frequency source with a 12 MHz maximum output frequency and tight stability of ±50 ppm. It integrates into electronic applications requiring precise clock signals with low power consumption within a compact 4-pin surface mount QFN package measuring 2.5mm in length, 2.0mm in width, and 0.85mm in height.
This oscillator supports a wide supply voltage range from 1.8V minimum up to 3.3V maximum and operates reliably across industrial temperature ranges from -40°C to 85°C. Its LVCMOS output level ensures compatibility with various logic families. The device is RoHS and RoHS II compliant ensuring environmentally responsible production.
Thanks to its rugged design and enhanced stability, the ASDM1 series is well suited for use in demanding environments including industrial machinery, automotive electronics, military-grade applications, and portable consumer devices such as MP3 players and digital video recorders (DVRs). It represents an excellent lower cost alternative to traditional crystal oscillators, offering shock and vibration resilience.
The oscillator is delivered in tape and reel packaging optimized for automated pick-and-place assembly lines enhancing production efficiency. Compact QFN plastic package for low profile mounting. Wide operating temperature range ensuring performance in harsh conditions.
Low power consumption suitable for battery-powered applications. High frequency stability supporting reliable timing performance. Compliance with environmental standards RoHS/RoHS II. Versatile industrial, automotive, military, and consumer electronics use cases.
Efficient packaging in tape and reel format for manufacturing. Explore additional MEMS Oscillators products and industrial components on EnvMart for enhanced electronic design and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output frequency of this model is 12 MHz.
It supports a supply voltage range from 1.8V to 3.3V.
The oscillator operates reliably over a temperature range of -40°C to 85°C.
It provides an LVCMOS output level, making it compatible with various logic families.
The QFN package measures 2.5mm in length, 2.0mm in width, and 0.85mm in height.
This model has four pins for easy surface mounting on PCBs.
It is packaged in tape and reel format, optimized for automated assembly processes.
Yes, it is RoHS and RoHS II compliant, ensuring environmentally responsible production.
This oscillator belongs to the ASDM series.
It is applicable in consumer electronics, portable devices, military, automotive, and industrial equipment environments.
It maintains exceptional stability with a rating of ±50 ppm, which is crucial for reliable timing performance.
The country of origin for this oscillator is India.
