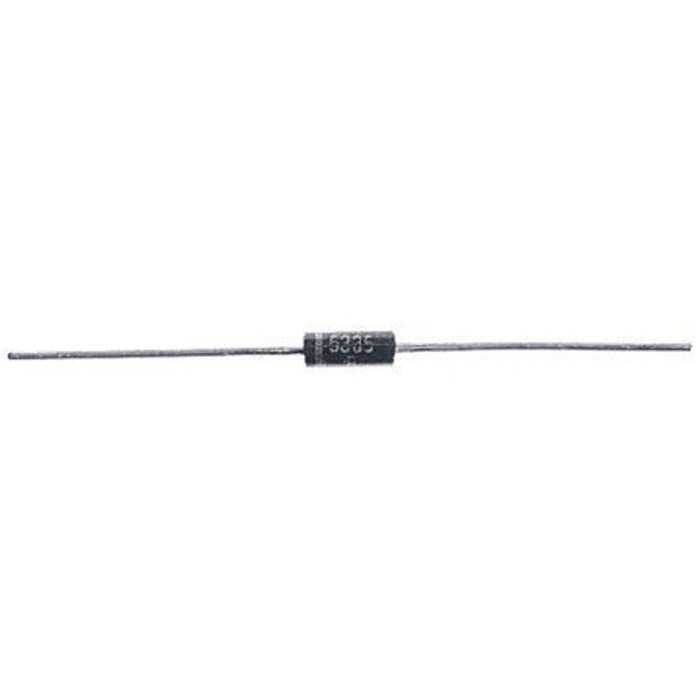

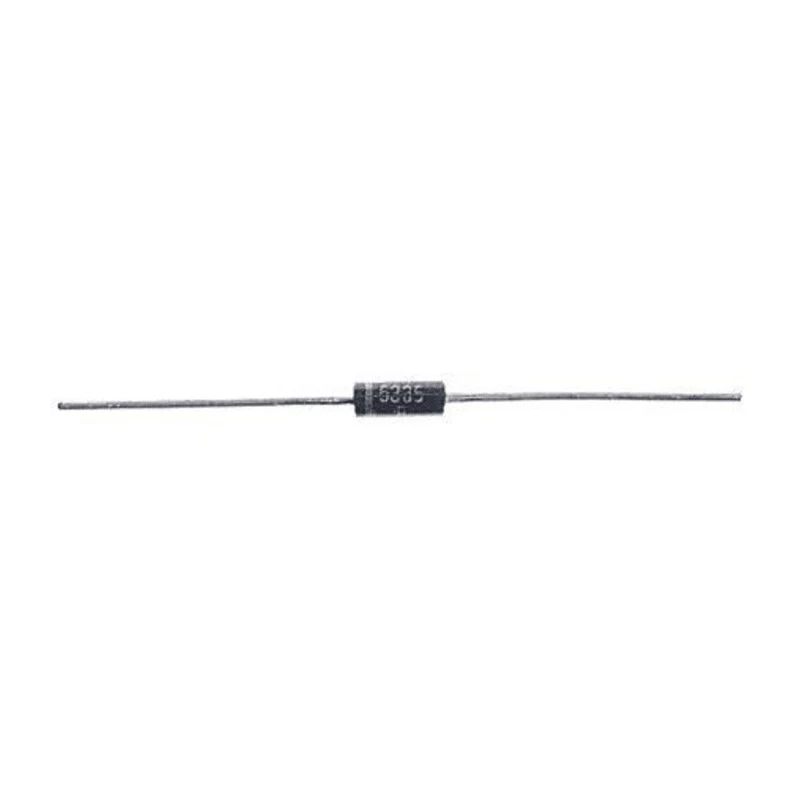

Vishay Schottky Diode 50 V 1 A 2-Pin DO-204AL SB150-E3/54
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 2.7mm |
| Brand | Vishay |
| Length | 5.2mm |
| Model | SB150-E3/54 |
| Mount Type | Through Hole |
| Series | SB150 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-204AL |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 50V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 5mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 650mV |
| Vishay 50V 1A, Schottky Diode, 2-Pin DO-204AL VS-MBR150TRBrand | Vishay |
Key Features
- The diode has a maximum continuous forward current of 1 ampere.
- Peak reverse repetitive voltage rating is 50 volts.
- Features a DO-204AL through-hole package with 2 pins.
- Maximum forward voltage of 650 millivolts ensures low power loss.
- Operates reliably from -65°C up to 150°C ambient temperature.
- Supports peak non-repetitive forward surge current of up to 50 amperes.
- Compact dimensions include 5.2 mm length and 2.7 mm diameter.
- Ideal for applications requiring fast switching and low forward voltage drop.
Product Description
Vishay SB150-E3/54 is a high-performance Schottky diode designed for fast switching applications with low forward voltage drop. This 2-pin diode is housed in a DO-204AL through-hole package, making it suitable for discrete semiconductor use in electronic circuits and power management systems.
The diode has a maximum continuous forward current rating of 1 ampere and a peak reverse repetitive voltage of 50 volts. It guarantees low forward voltage of 650 millivolts, minimizing power loss during operation.
Its robust design supports a peak non-repetitive forward surge current of 50 amperes, ensuring reliability under surge conditions. The wide operating temperature range from -65°C to 150°C enhances its suitability for industrial, automotive, and consumer electronic applications.
Measuring 5.2 mm in length with a 2.7 mm diameter, this compact diode provides an efficient solution for switching, rectification, and protection circuits. It does not hold any special standards or automotive approvals but is made by Vishay, a trusted brand in semiconductor components.
The Schottky diode's construction ensures extremely fast reverse recovery times, optimal for switching power supplies, voltage clamping, and protection circuits in industrial, manufacturing, and power electronics environments.
The diode has a maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage rating is 50 volts. Features a DO-204AL through-hole package with 2 pins. Maximum forward voltage of 650 millivolts ensures low power loss.
Operates reliably from -65°C up to 150°C ambient temperature. Supports peak non-repetitive forward surge current of up to 50 amperes. Compact dimensions include 5.2 mm length and 2.7 mm diameter. Ideal for applications requiring fast switching and low forward voltage drop.
Manufactured in China with no automotive or special approvals. For semiconductor and diode component requirements, explore more products by Vishay and other leading brands on EnvMart for dependable electronic component sourcing.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 ampere.
The peak reverse repetitive voltage rating is 50 volts.
This diode features a DO-204AL through-hole package with 2 pins.
The maximum forward voltage is 650 millivolts, which helps to minimize power loss during operation.
It operates reliably within a temperature range from -65°C to 150°C.
This diode supports a peak non-repetitive forward surge current of up to 50 amperes.
The diode measures 5.2 mm in length and has a diameter of 2.7 mm.
This model is a Schottky rectifier, known for its fast switching capabilities and low forward voltage drop.
The peak reverse current is rated at 5 milliamperes.
It supports through-hole mounting, suitable for discrete semiconductor applications.
This diode does not hold any special automotive approvals, making it more suitable for general electronic applications.
This diode is manufactured in China.
