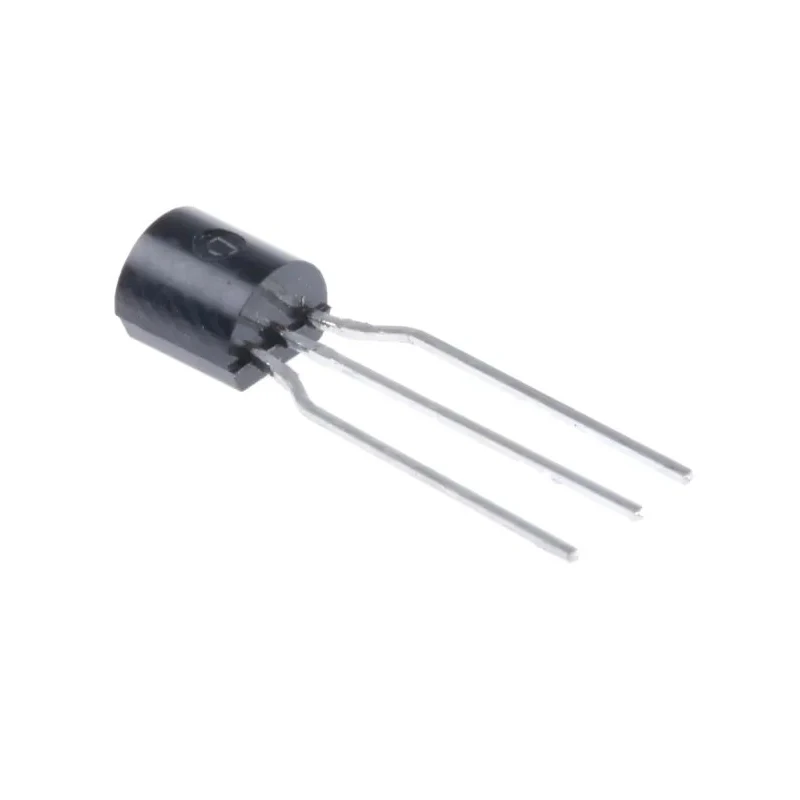

onsemi Small Signal PNP Transistor, TO-92 3-Pin, -150 mA Collector Current, -50 V Collector-Emitter Voltage, 400 KSA1015YTA

onsemi KSA1015YTA is a small signal PNP transistor enclosed in a TO-92 package suitable for through-hole mounting applications. It supports a maximum DC collector current of -150 mA and a collector-emitter voltage rating of -50 V, providing reliable performance in a variety of electronic circuits.

This transistor features a maximum power dissipation of 400 mW and a minimum DC current gain (hFE) of 70, ensuring efficient amplification of signals in low power devices. The transistor operates safely up to 150°C, making it compatible with demanding environments.

Its maximum transition frequency of 1 MHz supports basic switching and amplification tasks in audio and other signal processing applications. The 3-pin TO-92 package is favoured for its compact size and ease of installation on printed circuit boards.

The device's dimensions are 21.77 mm in height, 4.19 mm in width, and 5.2 mm in length, facilitating use in compact electronic assemblies. Typical industrial, laboratory, and electronic manufacturing use cases include signal switching, amplification, and low power control circuits.

Designed for through-hole mounting with a 3-pin TO-92 package. Maximum collector current of -150 mA suitable for small signal applications. Collector-emitter voltage rating of -50 V ensures protection against voltage spikes.

Power dissipation rating of 400 mW supports moderate power designs. Current gain of 70 enables amplification of weak signals. Operation up to 150°C suitable for harsh environments. Compact and reliable design for versatile electronic applications.
