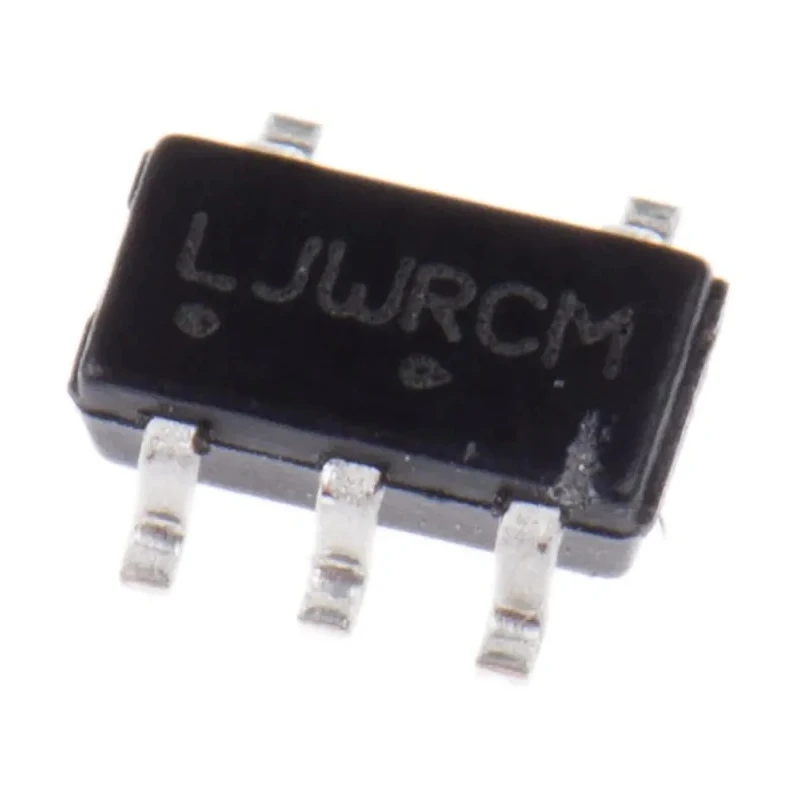

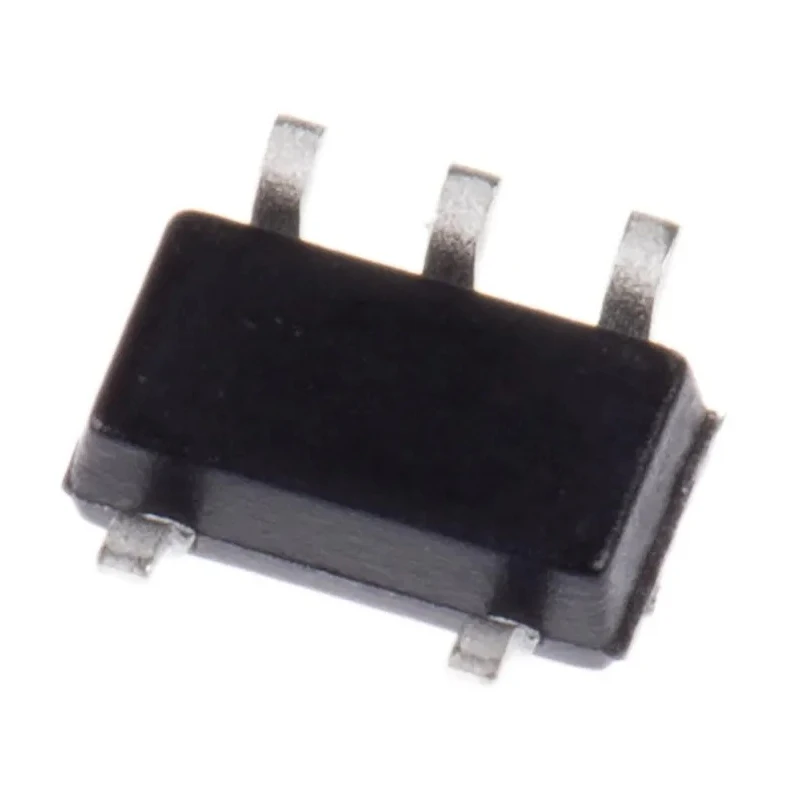

onsemi Low Dropout Linear Voltage Regulator 6V 150mA TSOP 5-Pin NCP699SN33T1G
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi NCP699SN33T1G, Voltage Regulator 6V TSOP 5-Pin RS Stock No |
| Brand | onsemi |
| Height | 1mm |
| Length | 3mm |
| Model | NCP699SN33T1G |
| Width | 1.5mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TSOP |
| Polarity | Positive |
| Maximum Input Voltage | 6V |
| Quiescent Current | 90μA |
| Minimum Input Voltage | 2.1V |
| Pin Count | 5 |
Key Features
- Compact TSOP 5-pin surface mount package measuring 3mm by 1.5mm by 1mm.
- Operates with a low quiescent current of 90μA for efficient power management.
- Designed for positive polarity voltage regulation with input voltage range from 2.1V minimum to 6V maximum.
- Maximum operating temperature is rated at 85°C ensuring reliable performance.
- Ideal for electronic and semiconductor applications requiring stable voltage regulation.
- Low dropout linear regulator provides fast transient response and low noise output.
- Suitable for PCB surface mounting in compact electronic devices and systems.
- Not compliant with automotive standards, designed for general electronic use.
Product Description
onsemi NCP699SN33T1G is a Low Dropout (LDO) linear voltage regulator featuring a compact TSOP 5-pin surface mount package. It operates at a maximum input voltage of 6V and delivers up to 150mA output current, making it suitable for efficient power management in electronic circuits.
This voltage regulator is designed with a low quiescent current of 90μA, ensuring minimal power loss during operation. The device supports an input voltage range from 2.1V to 6V, providing flexibility across a variety of power supply designs.
The component's physical dimensions of 3mm length, 1.5mm width, and 1mm height support compact PCB layouts, and its maximum operating temperature of 85°C assures reliable performance under typical environmental conditions.
onsemi NCP699SN33T1G is intended for positive polarity voltage regulation and is not certified under automotive standards, thus primarily used in general electronic and semiconductor applications requiring stable and low-noise voltage supply.
Compact TSOP 5-pin surface mount package. Low quiescent current of 90μA for energy efficient operation. Input voltage range from 2.1V to 6V accommodates various power sources. Maximum operating temperature of 85°C for robust use.
Provides low noise and fast transient response LDO regulation. Ideal for PCB surface mounting in consumer and industrial electronics. Not designed for automotive applications.
This voltage regulator is widely applicable in power management IC designs within electronic components manufacturing, industrial controls, and consumer electronics development. It is optimized for compact devices where space-saving and power efficiency are critical.
Explore more from the Semiconductor and Voltage Regulator categories on EnvMart for your electronic component sourcing needs.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 6V.
It can deliver up to 150mA output current.
The quiescent current is 90μA, which helps in efficient power management.
The TSOP package measures 3mm in length, 1.5mm in width, and 1mm in height.
The maximum operating temperature is rated at 85°C.
No, this voltage regulator is not compliant with automotive standards and is intended for general electronic use.
It supports surface mounting, making it suitable for compact PCB layouts.
The input voltage range is from 2.1V minimum to 6V maximum.
It is designed for positive polarity voltage regulation.
It is widely applicable in power management IC designs within electronic components manufacturing, industrial controls, and consumer electronics development.
The package type is TSOP, which is a compact surface mount package.
This model provides fast transient response and low noise output, making it effective for stable voltage regulation.
