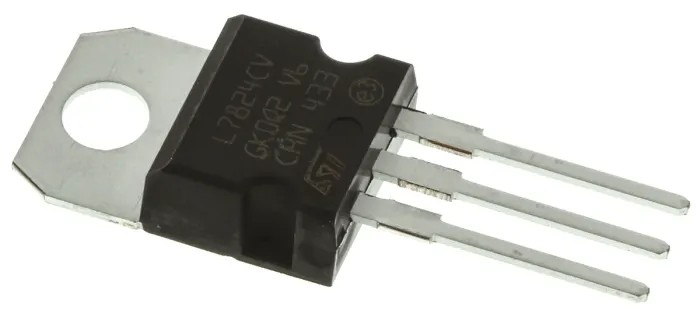

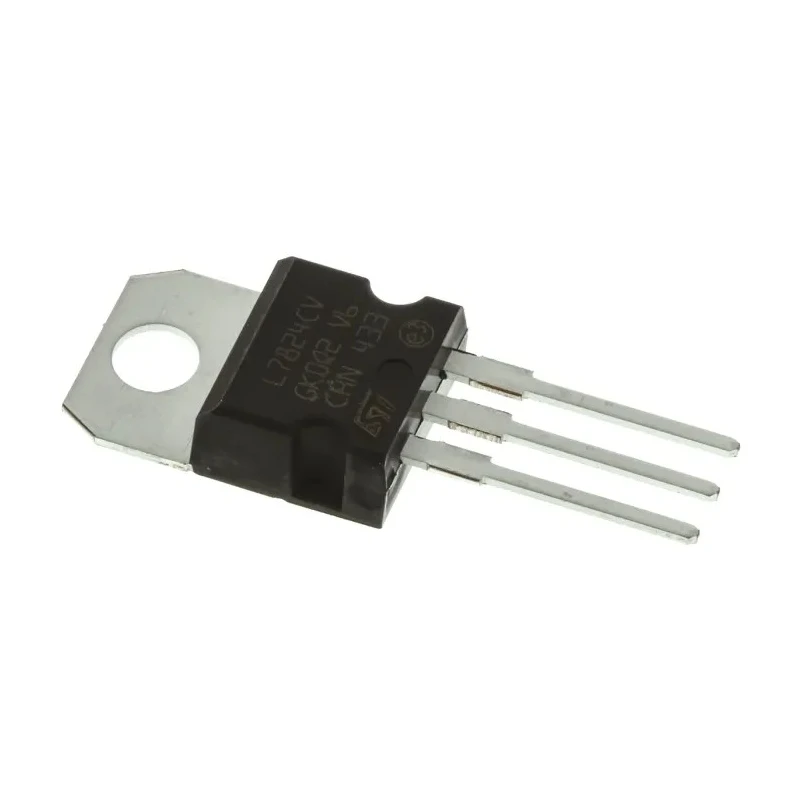

STMicroelectronics Positive Voltage Regulator IC Linear TO-220 24V 1.5A 5-Channel L7824CV

STMicroelectronics L7824CV is a positive linear voltage regulator integrated circuit engineered to offer a steady 24V output and capable of supplying up to 1.5A of current. Its five-channel design provides enhanced versatility for multi-rail power applications, making it ideal for demanding industrial, laboratory, or embedded electronic systems that require reliable voltage regulation.

The device employs proven linear regulation technology for efficient conversion and stability, minimizing voltage ripple and noise. It comes with a TO-220 3-pin through-hole package, facilitating straightforward PCB mounting and thermal management. Its positive polarity ensures compatibility with a wide variety of control and power circuit boards. The L7824CV incorporates advanced protection features including internal thermal shutdown and current limiting, guarding against overloads and temperature spikes. These safety mechanisms improve operational reliability and extend product lifetime.

With a regulated output voltage of 24V, the L7824CV achieves load and line regulation values of just 480 mV, providing consistent precision in voltage control even with fluctuating input supplies or variable loads. The device operates within a broad input voltage window, accepting between 7V and 40V, and offers a quiescent current of only 8mA, which optimizes energy efficiency in power management systems. Its maximum operating temperature of 150°C supports critical applications in rugged industrial, laboratory and manufacturing environments.

The L78xx series from STMicroelectronics is known for its reliable performance, and the L7824CV expands its utility through additional output channels, enhancing flexibility for complex circuitry. The package dimensions (Length: 10.4 mm, Width: 4.6 mm, Height: 9.15 mm) allow for compact design integration, while through-hole mounting simplifies soldering and replacement processes.

Typical applications include board-level power management, precision voltage control in instrumentation, automation systems, and embedded electronics. It is suitable for use in modules requiring multi-channel power distribution, linear regulation, and stable voltage output for sensitive components. The L7824CV is engineered to meet the demands of industrial, laboratory, and commercial systems requiring robust, efficient voltage regulation.

Provides a fixed 24V output for steady power supply needs in electronic modules. Handles output currents up to 1.5A for reliable performance in high-demand systems. Features built-in thermal shutdown and current limiting for enhanced safety.

Maintains tight regulation (480 mV) for consistent voltage under varying loads. Wide operating input voltage and temperature range for flexible deployment. Compact TO-220 3-pin package for simple PCB and chassis installation.

Positive polarity and multi-channel design for broad applicability. Low quiescent current for energy-efficient operation. Explore other STMicroelectronics Voltage Regulator ICs for specialized requirements in EnvMart's Electronics & Electricals catalog.
