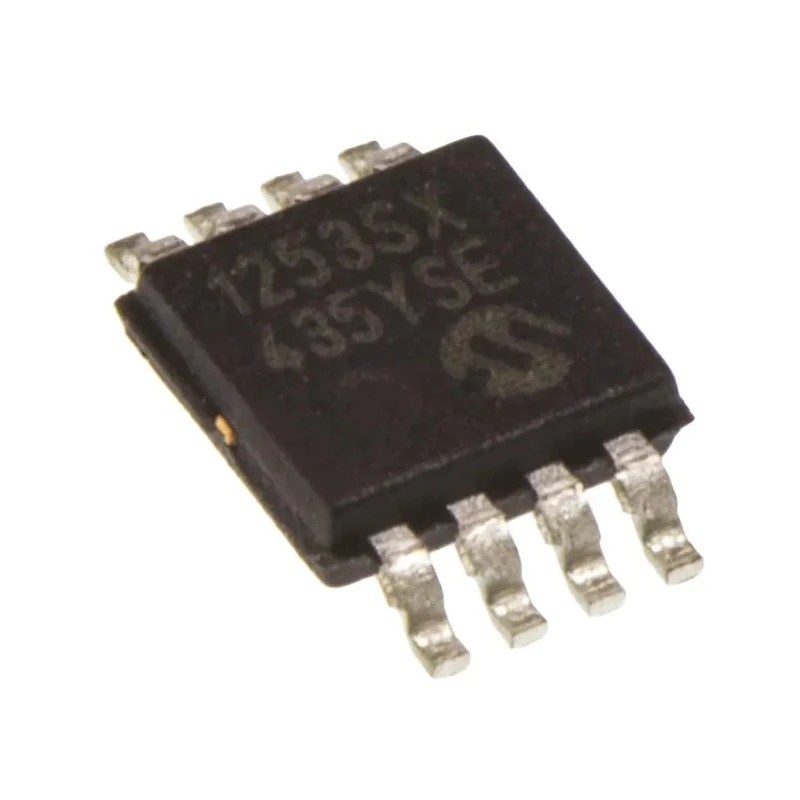

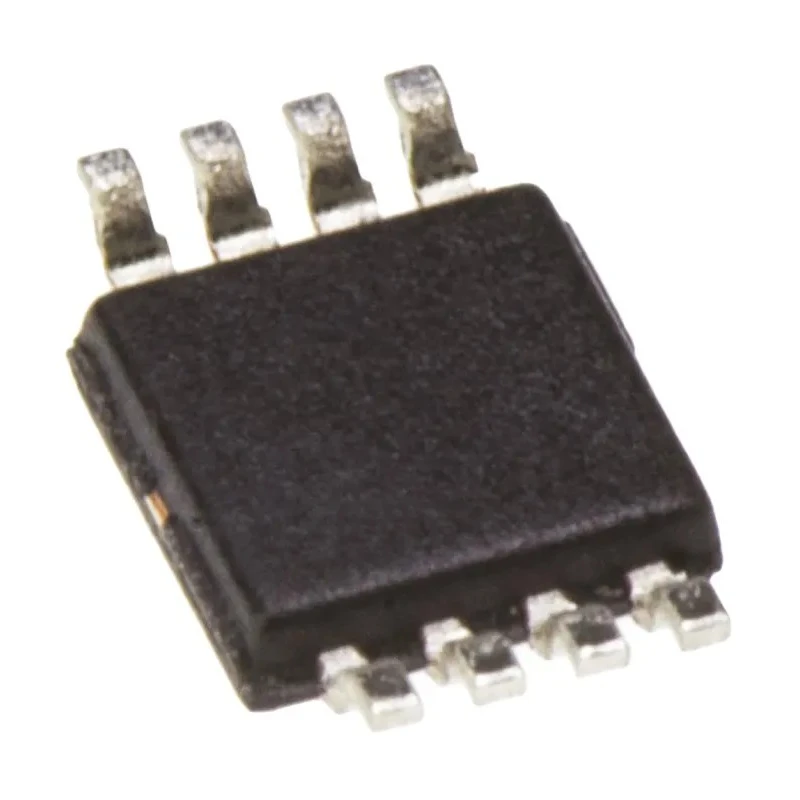

Microchip 5-Channel Charge Pump Voltage Regulator MCP1253-33X50I/MS 120mA 5V 1MHz MSOP-8
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 0.85mm |
| Length | 3mm |
| Model | MCP1253-33X50I/MS |
| Width | 3mm |
| Mount Type | Surface |
| Output type | Fixed |
| Series | MCP1253 |
| Output Current | 120mA |
| Maximum Operating Temperature | 85°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Charge Pump |
| Switching Frequency | 1MHz |
| Number of outputs | 5 |
| Maximum Input Voltage | 5.5V |
| Output Voltage | 5V |
| Quiescent Current | 120μA |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 2.1V |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
Key Features
- Charge pump DC-to-DC converter suitable for efficient voltage regulation applications.
- Provides five output channels and fixed positive polarity output at 5V.
- High switching frequency of 1MHz optimizes noise performance and compact PCB layout.
- Delivers output current up to 120mA with low quiescent current for energy efficiency.
- Packaged in a compact MSOP-8 surface-mount package for easy integration in electronics.
- Wide input voltage range from 2.1V to 5.5V supports various system designs.
- Operating temperature range from -40°C to 85°C enhances reliability and versatility.
Product Description
The Microchip MCP1253-33X50I/MS is a versatile, efficient 5-channel charge pump voltage regulator designed for demanding electronic applications. Offering 120mA output current per channel and a fixed 5V output, it utilizes a high-frequency 1MHz switching architecture for improved power regulation and minimized electromagnetic noise. With an MSOP-8 surface-mount package, this component enables compact PCB designs and easy integration.
The regulator's wide input voltage range from 2.1V to 5.5V makes it compatible with a variety of supply voltages, supporting flexibility for designers across industrial, embedded, and consumer electronics. Its low quiescent current of 120μA ensures maximum energy efficiency in battery-powered devices.
Five output channels allow for streamlined voltage distribution for multi-rail circuit designs, while the fixed positive output type and high reliability are suitable for precision control systems, instrumentation, and automotive uses compliant with AEC-Q100 standards.
The device's robust operating temperature range from -40°C to 85°C ensures stable performance in harsh conditions, making it ideal for industrial automation, telecommunications, laboratory instrumentation, and automotive electronic modules.
Advanced RoHS compliance and surface-mount MSOP packaging further simplify assembly and ensure environmental safety. The MCP1253-33X50I/MS series represents Microchip's commitment to dependable voltage regulation in modern electronics designs.
High-efficiency charge pump topology reduces power dissipation in demanding installations. Multiple outputs integrate seamlessly into complex system power architectures. Precision 5V regulation supports critical analog and mixed-signal loads.
Reliable automotive-grade solution with AEC-Q100 standard compliance. Compact, RoHS-approved construction streamlines manufacturing and ensures environmental compatibility.
Industrial applications include electronic control units, sensor interfaces, signal conditioning, and telecom boards. Laboratory, R&D, and embedded systems also benefit from this regulator’s compact form factor, reliable performance, and advanced regulation capabilities. To browse similar voltage regulators and other Microchip ICs for advanced power management solutions, visit EnvMart’s Electronics & Electricals categories.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can deliver an output current of up to 120mA per channel.
The MCP1253-33X50I/MS supports an input voltage range from 2.1V to 5.5V.
It operates at a high switching frequency of 1MHz, which optimizes noise performance.
This model features five output channels for voltage distribution.
The MCP1253-33X50I/MS is packaged in a compact MSOP-8 surface-mount package.
It operates within a temperature range of -40°C to 85°C, enhancing reliability in various conditions.
The quiescent current for this voltage regulator is 120μA, contributing to energy efficiency.
Yes, it complies with the AEC-Q100 automotive standard, making it suitable for automotive applications.
It provides a fixed positive output voltage of 5V.
The dimensions of this model are 3mm in length, 3mm in width, and 0.85mm in height.
This device is RoHS compliant, ensuring environmental safety in its construction.
It is suitable for industrial automation, telecommunications, laboratory instrumentation, and automotive electronic modules.
