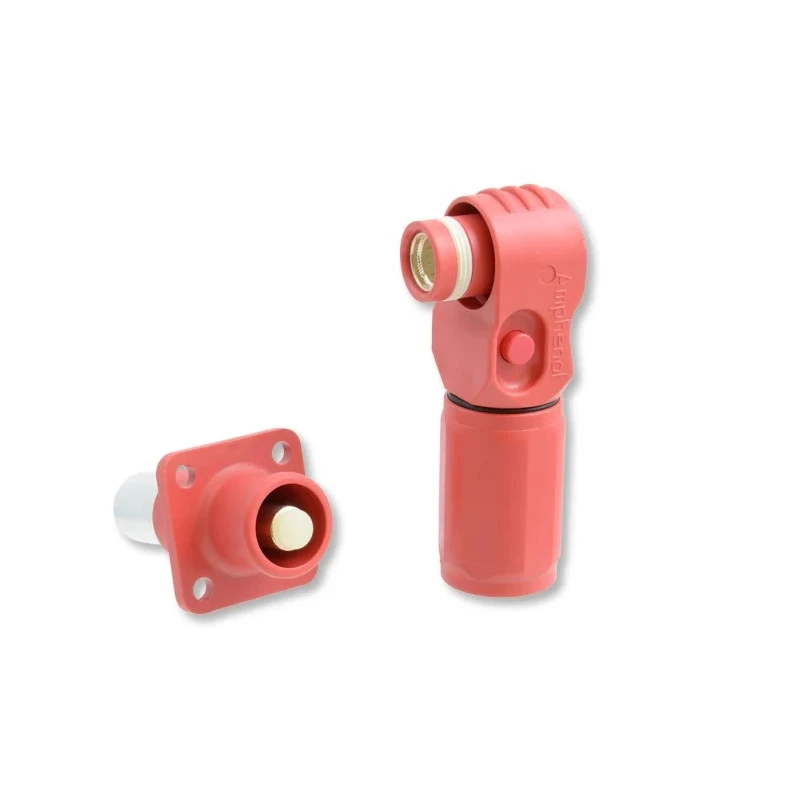

Amphenol Industrial EV Connector Receptacle Female Panel Mount 200A 1500V Threaded Post Termination SLPIRBTPSB1

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Industrial EV Connector Receptacle Female Panel Mount 200A 1500V Threaded Post Termination SLPIRBTPSB1

Name: Amphenol Industrial EV Connector Receptacle Female Panel Mount 200A 1500V Threaded Post Termination SLPIRBTPSB1
Brand: Amphenol Industrial
SKU: 176957
Price: 24.42 USD
Availability: InStock



Category Industrial Circular Connector Brand Amphenol Industrial Condition New

Specifications

Country of Origin	China
Brand	Amphenol Industrial
Colour	Black
Orientation	Straight
Current	200A
Height	31mm
Model	SLPIRBTPSB1
Depth	71.5mm
IP Rating	IP67
Connector Type	Receptacle
Width	31mm
Mount Type	Panel
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	SLP
Termination Type	Threaded Post
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Pin Diameter	8mm
Number of Rows	1
Operating Voltage	1500V
Standards/Approvals	UL, TUV, RoHS Compliant
Number of Contacts	1
Contact Gender	Female
Connector Gender	Female
Better World Claim	Renewable Energy Solution

Key Features

Rated for 200A current and 1500V operating voltage.
Features a threaded post termination type for secure connections.
Single row, single contact female receptacle with 8mm pin diameter.
Constructed with copper alloy contacts and thermoplastic housing.
IP67 rated for high ingress protection.
Operating temperature range from -40°C to 125°C.
Panel mount design with straight orientation.
Compliant with UL, TUV, and RoHS standards.

Product Description

Amphenol Industrial SLPIRBTPSB1 EV Connector is a high-performance female receptacle designed for electric vehicle power connections. It offers a current rating of 200A and operates reliably at voltages up to 1500V, ensuring efficient power transfer in demanding automotive and industrial environments.

This connector features a threaded post termination that provides secure and stable electrical contact. The single-row configuration with one female contact and an 8mm pin diameter facilitates precise connections. The connector's copper alloy contacts coupled with a durable thermoplastic housing provide excellent electrical conductivity and mechanical protection.

Designed for panel mounting with a straight orientation, this receptacle is compact with dimensions of 31mm width, 31mm height, and 71.5mm depth. It complies with UL, TUV, and RoHS certifications, reflecting its adherence to safety and environmental standards.

The connector is rated IP67, offering dust-tight and water immersion protection, which is ideal for outdoor and industrial applications exposed to harsh conditions. Moreover, it can operate in a wide temperature range from -40°C up to 125°C, ensuring robust performance in various environments.

Its black color and renewable energy solution claim make it suitable for sustainable energy applications including electric vehicles and related charging infrastructure. Amphenol’s SLPIRBTPSB1 EV Connector supports efficient industrial, automotive, and commercial uses requiring reliable high-current connectors.

Rated for 200A current and 1500V voltage. Threaded post termination for secure mounting. Single female contact with 8mm pin diameter. Copper alloy contact material and thermoplastic housing. Panel mount with straight orientation.

IP67 ingress protection rating. Operating temperature range from -40°C to 125°C. UL, TUV, and RoHS compliant for safety and environmental standards. Compact dimensions: 31mm W × 31mm H × 71.5mm D. Ideal for electric vehicle and renewable energy applications.
