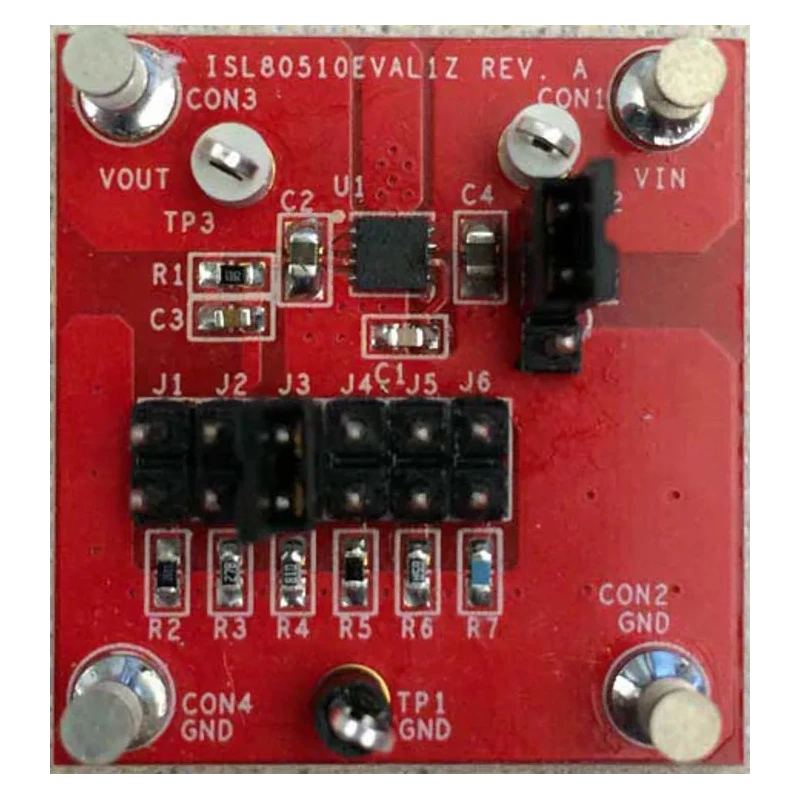

Renesas Electronics Low Dropout Voltage Regulator Evaluation Board , Input 2.2V - 6V, Programmable Output ISL80510EVAL1Z

The Renesas Electronics ISL80510EVAL1Z is a dedicated evaluation board designed for the ISL80510 single output low dropout voltage regulator IC. This industrial-grade evaluation platform allows engineers, designers, and lab technicians to test and validate the ISL80510's performance in a variety of circuit environments.

Supporting input voltages from 2.2V to 6V, the ISL80510EVAL1Z provides a flexible framework for experimenting with a wide range of powering scenarios. The output voltage is fully programmable from 0.8V to 5.5V, enabling applications ranging from low-voltage microcontrollers to higher voltage embedded subsystems.

The ISL80510 regulator delivers up to 1A output current, making it suitable for demanding embedded power supplies, instrumentation, analog circuits, and industrial controls. Fabricated using a submicron BiCMOS process, it provides best-in-class analog performance, reduced quiescent current, and high efficiency, all in a compact package footprint.

Advanced features include internal compensation for rapid load transient response and excellent power supply rejection ratio (PSRR), ensuring stable voltage regulation even under dynamic load conditions. The soft-start function, adjustable by external capacitor, provides controlled output voltage ramp-up and inrush current limitation during power sequencing. The ENABLE pin allows designers to place the regulator into a low quiescent current shutdown mode, optimizing energy consumption in battery-powered and intermittent operation devices.

The ISL80510EVAL1Z evaluation board is widely used in laboratory, industrial, and educational electronics development environments for validating voltage regulation, system prototyping, and custom circuit integration.

Evaluation board for single output low dropout Voltage Regulator IC ISL80510. Input voltage range: 2.2V to 6V. Output voltage programmable from 0.8V to 5.5V. Supports up to 1A output current. Features adjustable soft-start and ENABLE shutdown capability.

Fabricated on submicron BiCMOS process for efficiency and low quiescent current. Suitable for laboratory evaluation, prototyping, and embedded system development. Typical applications include industrial electronics, embedded system design, laboratory testing, and commercial voltage regulation circuit validation.
