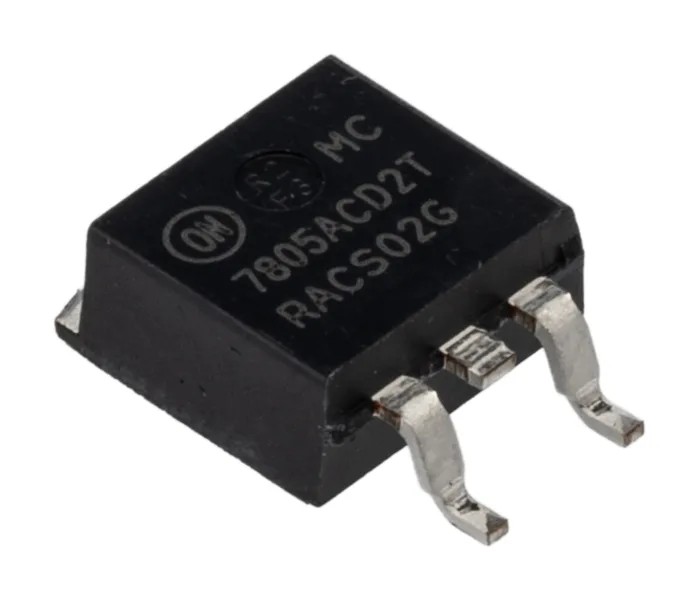

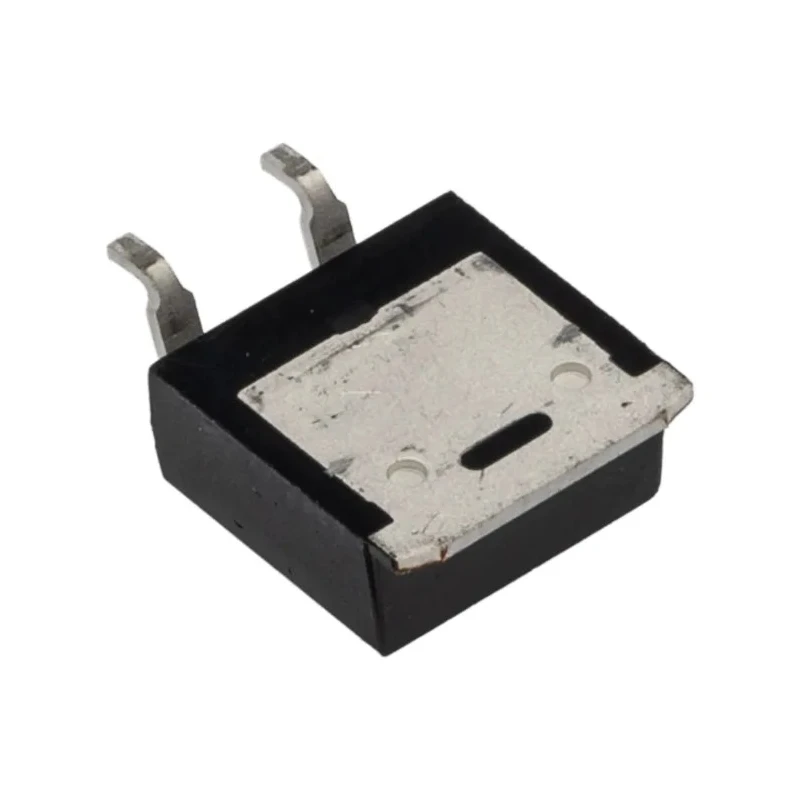

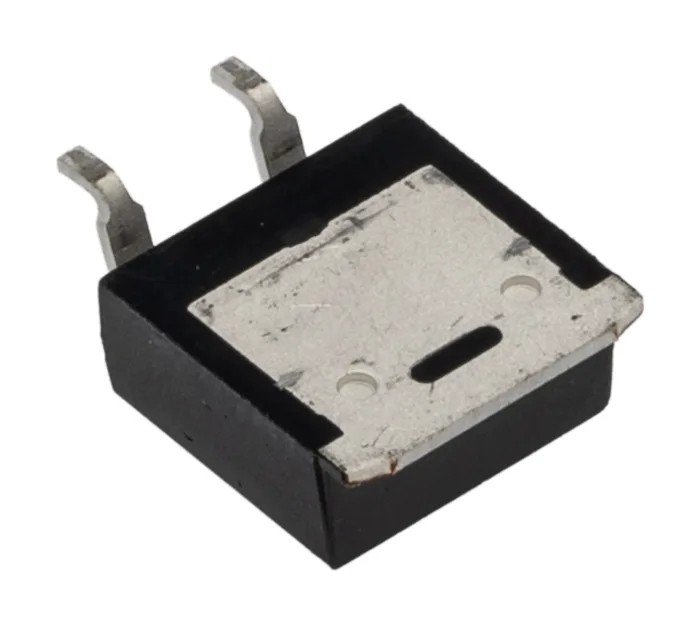

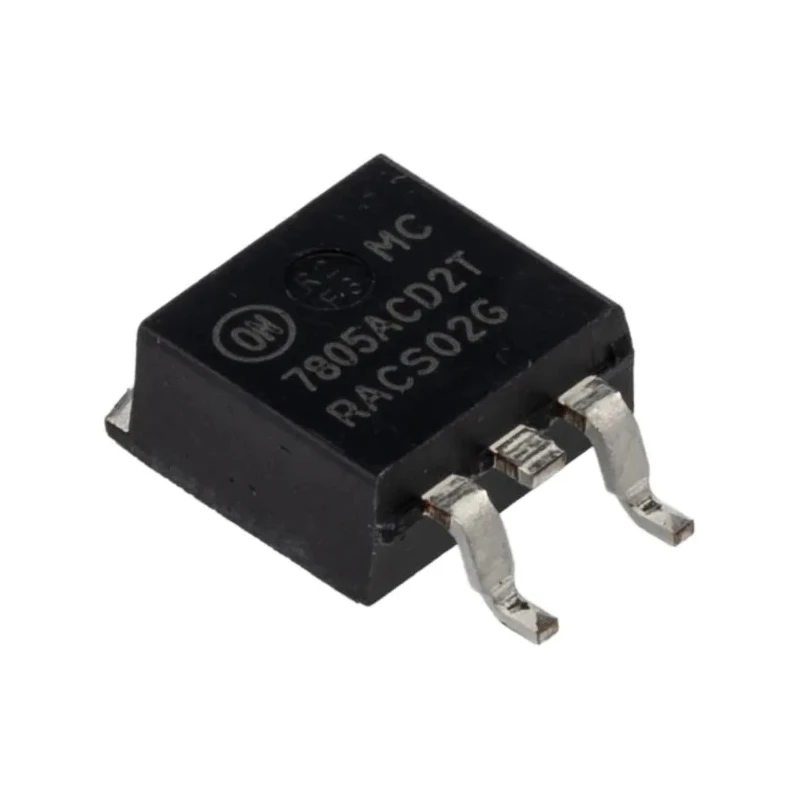

onsemi Surface Mount Linear Voltage Regulator, Positive Polarity, 5V Output, 35V Max Input, 3-Pin, 3.2mA MC7805ACD2TG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 35V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.24mm |
| Model | MC7805ACD2TG |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | MC78xx |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 3.2mA |
| Minimum Input Voltage | 5V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Provides a fixed 5V output for reliable power regulation.
- Supports a maximum input voltage of 35V for flexible applications.
- Surface mount configuration with three pins for easy PCB integration.
- Incorporates internal thermal overload protection and current limiting for enhanced safety.
- Quiescent current of 3.2mA ensures efficient, low-power operation.
- Complies with AEC-Q100 automotive quality standard.
- Wide operating temperature range up to 125°C enables use in harsh environments.
- Compact dimensions facilitate high-density PCB design.
Product Description
The onsemi MC7805ACD2TG is a high-quality surface mount linear voltage regulator designed for reliable fixed voltage output in diverse electronic applications. Featuring positive polarity, it provides a constant 5V output from input voltages up to 35V, making it suitable for a wide range of power management needs in both industrial and automotive environments.
This regulator is part of the MC78xx series and incorporates robust internal protection mechanisms such as thermal overload protection, current limiting, and safe area compensation. It eliminates the need for external components, simplifying PCB layout and assembly for designers and manufacturers.
With a quiescent current of just 3.2mA, the MC7805ACD2TG maintains low power consumption while supporting demanding loads, helping to optimize energy use within electronic systems. Its surface mount form factor, three-pin configuration, and compact package dimensions (10.24mm length, 9.35mm width, 30.02mm height) enable convenient integration into modern high-density circuit boards.
The voltage regulator is compliant with the AEC-Q100 automotive standard, ensuring dependable operation under rigorous conditions. It supports a wide ambient temperature range up to 125°C, making it suitable for harsh industrial, laboratory, and automotive environments. Typical use cases include on-card regulation, embedded systems, instrumentation, industrial controls, and automotive electronics.
Applications span industrial power management, automotive electronics, embedded control modules, laboratory instrumentation, communication equipment, and general electronics requiring stable 5V power supply regulation.
Regulates voltage efficiently across input voltages up to 35V. Enhances circuit safety with built-in current limiting and thermal protection. Optimized for surface mount assembly and automated production lines. Meets automotive quality requirements for system reliability.
Simplifies design with a fixed output and minimal external part requirements. Discover more voltage regulation solutions in the Electronics & Electricals and Semiconductor categories on EnvMart from leading brands including onsemi.
Explore more products in our Voltage Regulator IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for the MC7805ACD2TG is 35V.
This voltage regulator has a quiescent current of 3.2mA, ensuring efficient low-power operation.
It provides a fixed output voltage of 5V.
The dimensions of the MC7805ACD2TG are 10.24mm in length, 9.35mm in width, and 30.02mm in height.
The MC7805ACD2TG complies with the AEC-Q100 automotive quality standard.
This voltage regulator features a 3-pin configuration for easy PCB integration.
It has a positive polarity, providing stable voltage output.
It incorporates internal thermal overload protection and current limiting for enhanced safety.
This model is suitable for applications such as on-card regulation, embedded systems, and automotive electronics.
The country of origin for this voltage regulator is India.
