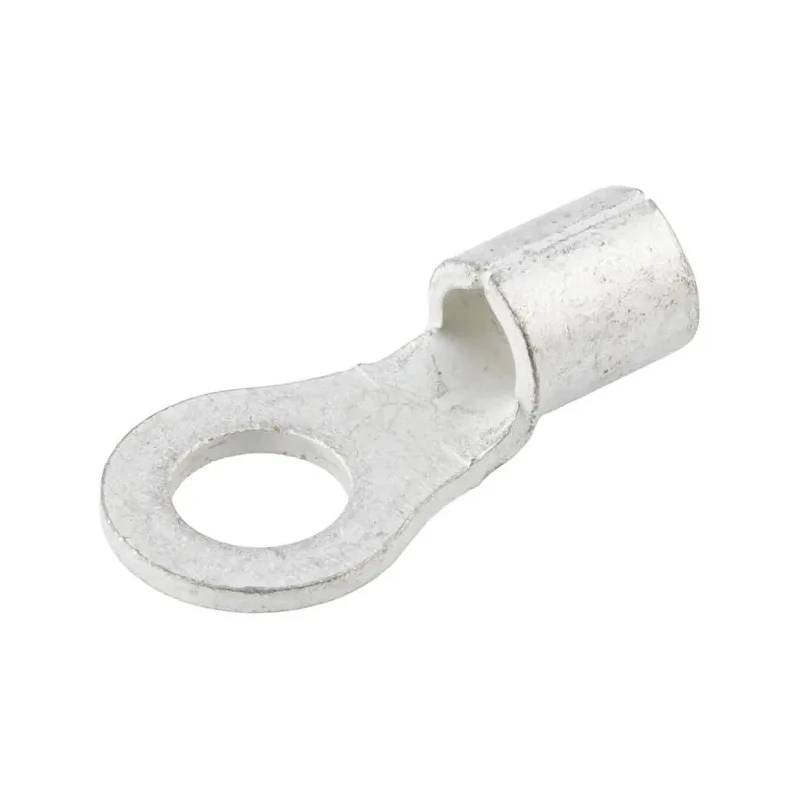

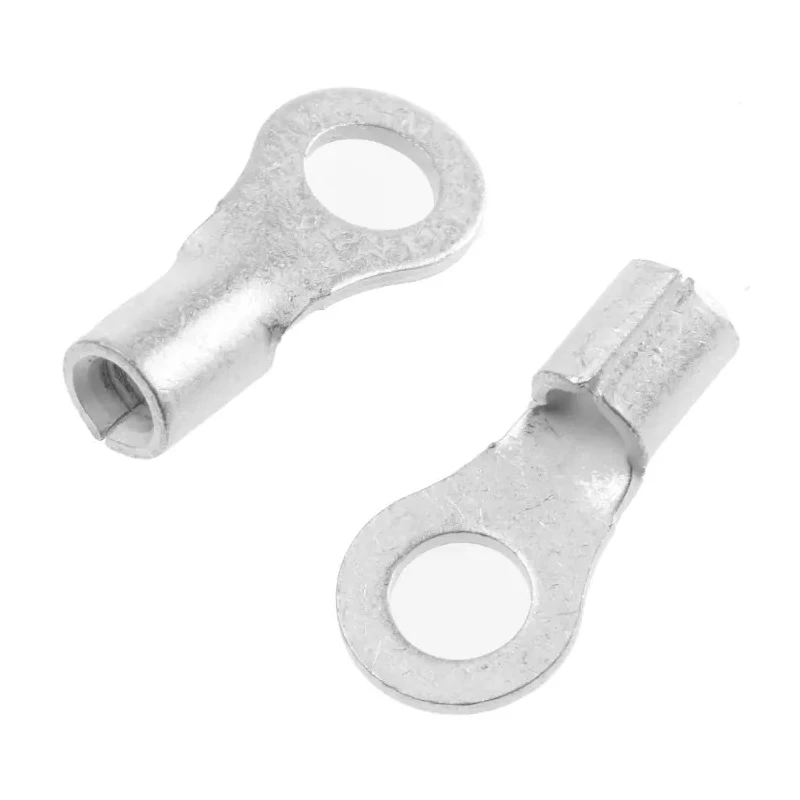

Molex Versakrimp Uninsulated Ring Terminal M5 Stud Size Grey, 13 AWG to 9 AWG Wire Size 19323-0013
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Colour | Grey |
| THICKNESS | 1.02mm |
| Insulation | Uninsulated |
| Overall Length | 15.5mm |
| Contact Material | Copper Alloy |
| Series | Versakrimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.5mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 13AWG |
| Maximum Wire Size AWG | 9AWG |
| Outer Ring Diameter | 9.53mm |
| Inner Ring Diameter | 5.39mm |
| Stud Size | M5 |
Key Features
- Constructed from copper alloy for excellent electrical conductivity.
- Uninsulated design allows easy wire crimping without soldering.
- Features tin contact plating to resist corrosion in humid environments.
- Compatible with wire sizes ranging from 2.5 mm² to 6 mm².
- Overall length measures 15.5 mm with a thickness of 1.02 mm.
- Designed with a brazed seam for dependable attachment and rotation in crimping tools.
- Suitable for industrial panels, automotive, consumer appliances, and HVAC applications.
- Operates reliably in temperatures from -55°C to 105°C.
Product Description
Molex 19323-0013 Versakrimp Uninsulated Ring Terminal is engineered for seamless electrical connections where reliable circuit termination is essential. This ring terminal features copper alloy construction for high conductivity and is uninsulated, streamlining wire termination via crimping without the need for soldering. The tin contact plating enhances resistance to corrosion, ensuring dependable performance even in damp environments.
The ring terminal includes a closed barrel design with a brazed seam allowing compression from any side and rotation within compatible crimping jaws. Its M5 stud size fits standard stems and bolts, with an overall length of 15.5 mm and thickness of 1.02 mm. It accepts wire sizes from 13 AWG to 9 AWG (2.5 mm² to 6 mm²), making it versatile across various wiring requirements.
This product finds application in industrial electrical panels, automotive industry wiring, consumer appliance assembly, and HVAC system installations. The ring terminal is built to operate reliably across a temperature range of -55°C to 105°C.
High conductivity copper alloy material construction. Uninsulated for easy wire crimping without solder. Tin plating for enhanced corrosion resistance. M5 stud size designed for standard bolt compatibility. Supports wire sizes from 13 AWG (2.5 mm²) up to 9 AWG (6 mm²).
Robust closed barrel with brazed seam for secure crimping. Suitable for industrial, automotive, consumer, and HVAC uses. Reliable performance from -55°C to 105°C operating temperature.
The Molex Versakrimp series uninsulated ring terminals provide dependable connections for critical wiring applications and enhance assembly efficiency in commercial and industrial environments. Explore more in the Ring Terminal category on EnvMart to find complementary connectors and wiring accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes ranging from 13 AWG (2.5 mm²) to 9 AWG (6 mm²).
The stud size for this ring terminal is M5, which fits standard stems and bolts.
It is constructed from copper alloy for high electrical conductivity and features tin contact plating to resist corrosion.
The overall length of this terminal measures 15.5 mm, with a thickness of 1.02 mm.
It operates reliably within a temperature range of -55°C to 105°C.
No, this terminal is uninsulated, allowing for easy wire crimping without soldering.
This model is suitable for use in industrial panels, automotive wiring, consumer appliances, and HVAC applications.
The outer ring diameter is 9.53 mm and the inner ring diameter is 5.39 mm.
It features a closed barrel design with a brazed seam, allowing for compression from any side and rotation within compatible crimping tools.
The country of origin for this terminal is India.
It has tin contact plating, which enhances its resistance to corrosion in humid environments.
This terminal is part of the Versakrimp series by Molex.
