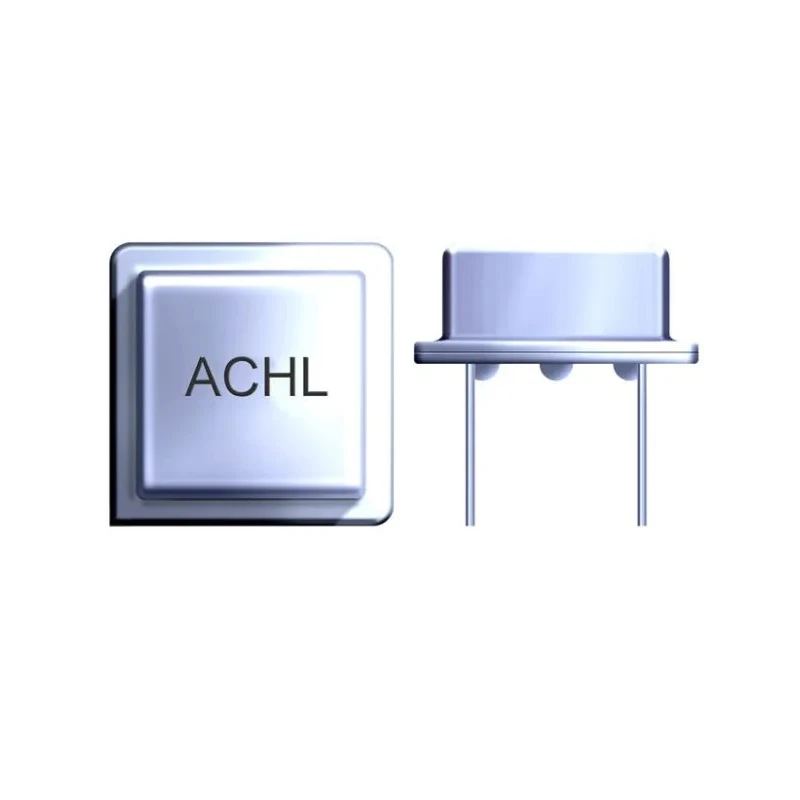

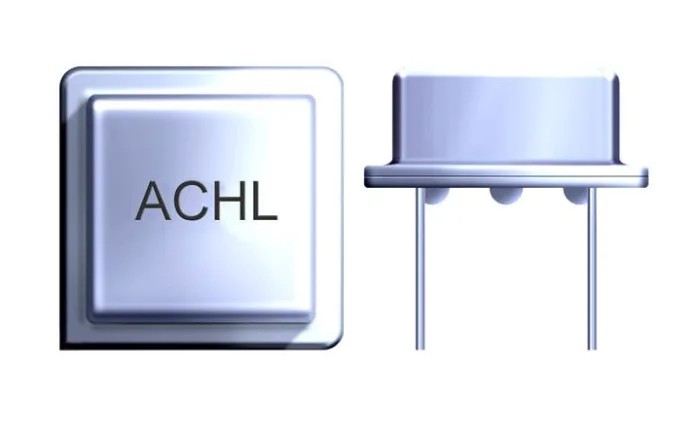

Abracon 27MHz Clock Oscillator Crystal Oscillator TTL HCMOS DIP-8 ACHL-27.000MHZ-EK
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 5.5mm |
| Length | 13.2mm |
| Model | ACHL-27.000MHZ-EK |
| Packaging | 40 pieces per Tube |
| Width | 13.2mm |
| Series | ACHL |
| Maximum Operating Temperature | 70°C |
| Output Frequency | 27MHz |
| Package Type | DIP-8 |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | ISO9001:2008 |
| Maximum Supply Voltage | 3.63V |
| Minimum Supply Voltage | 2.97V |
| Load Capacitance | 15pF |
| Oscillator Type | Clock Oscillator |
| Output Level | TTL, HCMOS |
| ISO9001 | 2008 |
| Standards/ApprovalsISO9001 | 2008 |
Key Features
- Operates at a frequency of 27MHz suitable for clock signal generation.
- Packaged in DIP-8 package type with 40 pieces per tube.
- Minimum supply voltage is 2.97V and maximum supply voltage is 3.63V for low power operation.
- Output levels compatible with TTL and HCMOS logic families for broad usability.
- Operating temperature range from 0°C to 70°C supports standard industrial environment.
- Includes tri-state enable/disable option for flexible circuit design integration.
Product Description
Abracon ACHL-27.000MHZ-EK is a precision 27MHz Clock Oscillator Crystal Oscillator designed for digital clock signal generation in microprocessors and other low power applications. It operates within a frequency stability of -100 to 100 ppm, delivering reliable timing signals essential for synchronization in electronics systems.
This oscillator features a low voltage supply range from 2.97V to 3.63V, compatible with TTL and HCMOS logic output levels, making it suitable for various digital circuits. Packaged in a DIP-8 form factor, it facilitates easy integration into PCB designs with mechanical dimensions of 13.2mm length, 13.2mm width, and 5.5mm height.
The operating temperature range from 0°C up to 70°C ensures robust performance under standard industrial environments. This product supports tri-state enable/disable functionality, providing design flexibility for system control.
The ACHL series is RoHS compliant and conforms to ISO9001:2008 standards, ensuring strict quality and environmental requirements are met. It is commonly used in embedded systems, telecommunications, computing equipment, and other industrial electronics requiring stable clock sources.
Operates at 27MHz frequency with TTL and HCMOS output compatibility. Stable frequency tolerance between -100 and 100 ppm for precise timing. Low voltage operation from 2.97V to 3.63V. DIP-8 package supports easy PCB mounting.
Temperature range suitable for industrial applications (0°C to 70°C). ISO9001:2008 certified and RoHS compliant for quality assurance. Tri-state enable/disable for flexible power management. Compact size with 13.2mm x 13.2mm x 5.5mm dimensions.
Ideal for timing in microprocessor and digital clock applications.
This Abracon Crystal Oscillator is essential for industrial, laboratory, and communication system applications where timing accuracy and reliability are critical. Explore more Oscillator and Crystal Components on EnvMart for your electronics development needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 27MHz, suitable for clock signal generation in various applications.
It operates within a supply voltage range of 2.97V to 3.63V, allowing for low power operation.
The dimensions of the DIP-8 package are 13.2mm in length, 13.2mm in width, and 5.5mm in height.
This oscillator is compatible with TTL and HCMOS logic families, providing broad usability in digital circuits.
The operating temperature range is from 0°C to 70°C, making it suitable for standard industrial environments.
It has a frequency stability of -100 to 100 ppm, ensuring reliable timing signals for synchronization.
This model is packaged with 40 pieces per tube, facilitating bulk usage in applications.
It is a clock oscillator designed specifically for digital clock signal generation.
Yes, it includes a tri-state enable/disable option for flexible circuit design integration and power management.
It is RoHS compliant and conforms to ISO9001:2008 standards, ensuring quality and environmental requirements are met.
The load capacitance for this model is 15pF, which is important for its performance in circuits.
It is commonly used in embedded systems, telecommunications, computing equipment, and other industrial electronics requiring stable clock sources.
