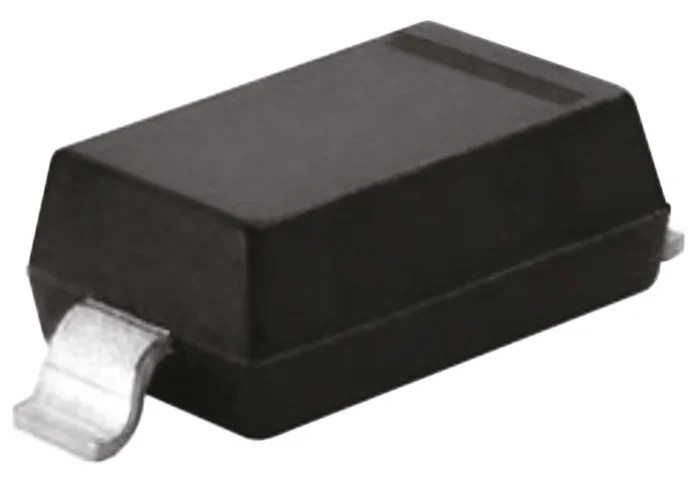

DiodesZetex Silicon Junction Switching Diode 400 mA 100 V 2-Pin SOD-123 BAV20W-7-F

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Silicon Junction Switching Diode 400 mA 100 V 2-Pin SOD-123 BAV20W-7-F

Name: DiodesZetex Silicon Junction Switching Diode 400 mA 100 V 2-Pin SOD-123 BAV20W-7-F
Brand: DiodesZetex
SKU: 104405
Price: 0.05 USD
Availability: InStock



Category Discrete Semiconductor Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	1.35mm
Length	2.85mm
Model	BAV20W-7-F
Width	1.7mm
Mount Type	Surface
Series	BAV20W
Maximum Operating Temperature	150°C
Package Type	SOD-123
Sub Type	Silicon Junction
Minimum Operating Temperature	-65°C
Pin Count	2
Maximum Power Dissipation Pd	250mW
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	2.5A
Maximum Forward Voltage Vf	1.25V
Peak Reverse Recovery Time trr	50ns
Maximum Forward Current If	400mA
Maximum Peak Reverse Repetitive Voltage Vrrm	100V

Key Features

This diode features a maximum power dissipation of 250 mW suitable for small signal applications.
It is configured as a single silicon junction diode optimized for switching.
The diode supports surface mount technology with a low height of 1.35 mm.
Peak non-repetitive forward surge current is rated at 2.5 A for transient conditions.
Operating temperature range extends from -65°C to 150°C allowing reliable performance in varied environments.
Its peak reverse recovery time of 50 ns supports fast switching applications.
The diode is manufactured in China and is new in condition.

Product Description

DiodesZetex BAV20W-7-F is a silicon junction switching diode designed for efficient, reliable switching applications in electronics. It supports a maximum forward current of 400 mA and withstands peak reverse voltage up to 100 V in a compact and robust 2-pin SOD-123 surface mount package.

This diode dissipates up to 250 mW of power and offers a fast peak reverse recovery time of 50 ns, making it suitable for high-speed switching circuits in industrial, commercial, and consumer electronic devices.

The operating temperature range from -65°C up to 150°C supports usage in demanding thermal environments. The device dimensions measuring 2.85 mm in length, 1.7 mm in width, and 1.35 mm in height facilitate flexible PCB layouts, especially for compact electronic assemblies.

Typical applications include signal rectification, polarity protection, and switching in power management circuits across telecommunications, automotive electronics, and consumer gadgets.

The BAV20W series is known for its high reliability and efficient performance, manufactured under stringent quality controls in China, intended for OEMs and electronic system integrators.

This diode has a maximum forward current of 400 mA for handling moderate signal currents. Its silicon junction single diode configuration favors efficient switching. Surface mount package type SOD-123 optimizes PCB space and assembly compatibility.

Peak forward surge current of 2.5 A protects against transient spikes. Extended operating temperature ensures durability in varying conditions. Fast recovery time reduces switching losses and improves efficiency. Compact device dimensions allow high-density PCB design.

Manufactured in China under new condition standards with no automotive rating. Search within Electro-Components & Electricals category at EnvMart for compatible semiconductor and diode solutions from trusted brands like DiodesZetex.

Explore more products in our Discrete Semiconductor category.
