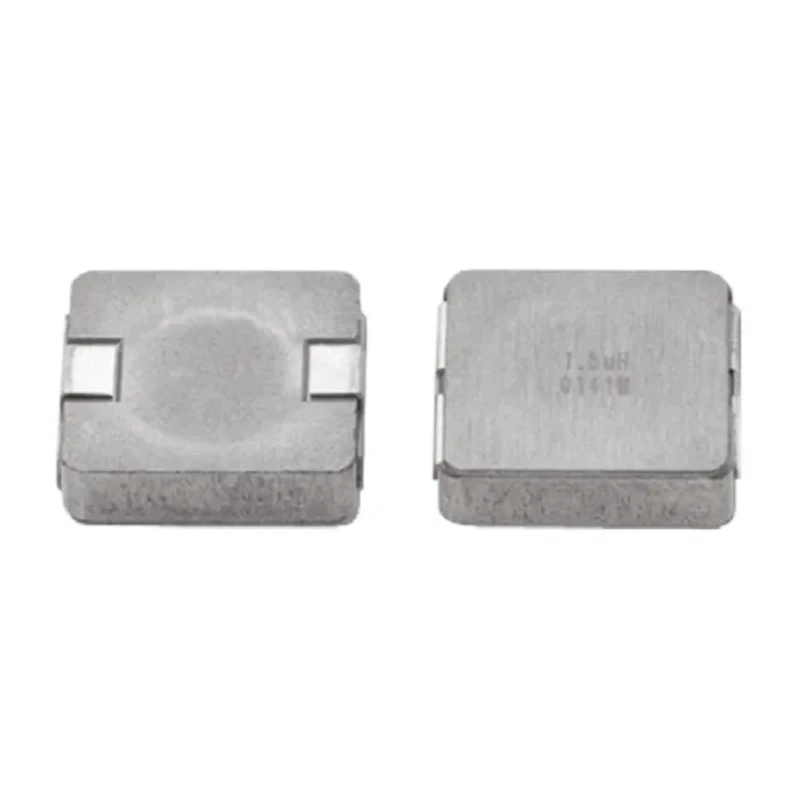

Vishay 5050 Shielded Surface Mount Inductor with Metal Composite Core 8.2 μH ±20% 8.5 A Idc IHLP5050CEER8R2M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 3.5mm |
| Length | 13.2mm |
| Model | IHLP5050CEER8R2M01 |
| Depth | 12.9mm |
| Series | IHLP-5050CE-01 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 8.2μH |
| Standards/Approvals | RoHS, JEDEC, IEC |
| Package/Case | 5050 |
| Maximum DC Current | 8.5A |
| Maximum DC Resistance | 28mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Shielded |
Key Features
- Compact 5050 package with 13.2 mm length and 3.5 mm height.
- Metal composite core provides high saturation current handling.
- Ultra low buzz noise and high transient current spike resistance.
- Surface mount termination style suitable for automated assembly.
- RoHS, JEDEC, and IEC compliant with industrial temperature range from -55°C to 125°C.
- Maximum DC resistance of 28 mΩ for low power loss efficiency.
- Maximum self-resonant frequency up to 5 MHz for high-frequency applications.
- Ideal for high current POL converters, DC/DC converters, and battery powered devices.
Product Description
Vishay IHLP5050CEER8R2M01 5050 Shielded Surface Mount Inductor with metal composite core features an inductance of 8.2 μH ±20% and supports a maximum DC current of 8.5 A with excellent performance characteristics. This inductor is specifically designed for high current and low profile applications.
The IHLP-5050CE-01 series offers high transient current spike handling without saturation, thanks to its magnetically shielded wire wound choke design and composite material construction. Its ultra-low buzz noise and molded packaging make it suitable for sensitive electronic environments.
The component operates reliably over a wide temperature range from -55°C to 125°C with a low DC resistance of 28 mΩ, enabling enhanced energy efficiency in circuits. The inductor construction supports frequencies up to 5 MHz, making it well-suited for high-frequency DC/DC converters and power supply circuits.
Typical applications for this Vishay surface mount inductor include PDA, notebook, desktop servers, distributed power systems, field programmable gate arrays (FPGA), and battery-powered devices requiring high current POL converters and low profile power supplies.
Compact 5050 package with precise dimensional footprint (13.2 mm length, 12.9 mm depth, 3.5 mm height). Magnetically shielded wire wound construction for minimized EMI. Compliance with RoHS, JEDEC, and IEC standards ensuring quality and safety.
Surface mount termination style facilitates automated PCB assembly. Metal composite core materials optimize performance under high currents. Wide operating temperature range suited for industrial and commercial applications.
Low DC resistance improves power efficiency and thermal management. High saturation current and ultra-low noise enhance reliability in demanding electronic circuits.
This Vishay surface mount inductor is a reliable choice for industrial, electronic component manufacturing, telecommunications, computing devices, power management modules, and other commercial applications requiring durable and efficient inductive components.
Browse more Electronics Components and Surface Mount Inductors on EnvMart for additional options and specifications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 8.2 μH with a tolerance of ±20%.
It can handle a maximum DC current of 8.5 A, making it suitable for high current applications.
This inductor has a length of 13.2 mm, a depth of 12.9 mm, and a height of 3.5 mm.
The maximum self-resonant frequency is up to 5 MHz, allowing it to be used in high-frequency applications.
It features a metal composite core, which provides high saturation current handling and low buzz noise.
The maximum operating temperature is 125°C, while the minimum is -55°C, making it suitable for a wide range of environments.
This model is compliant with RoHS, JEDEC, and IEC standards, ensuring it meets industry quality and safety requirements.
It features a surface mount termination style, which is suitable for automated assembly processes.
The maximum DC resistance is 28 mΩ, which helps improve power loss efficiency in circuits.
Typical applications include high current POL converters, DC/DC converters, and battery-powered devices.
It has a shielded construction, which minimizes electromagnetic interference (EMI) and enhances performance in sensitive environments.
This inductor belongs to the IHLP-5050CE-01 series, designed for high current and low profile applications.
