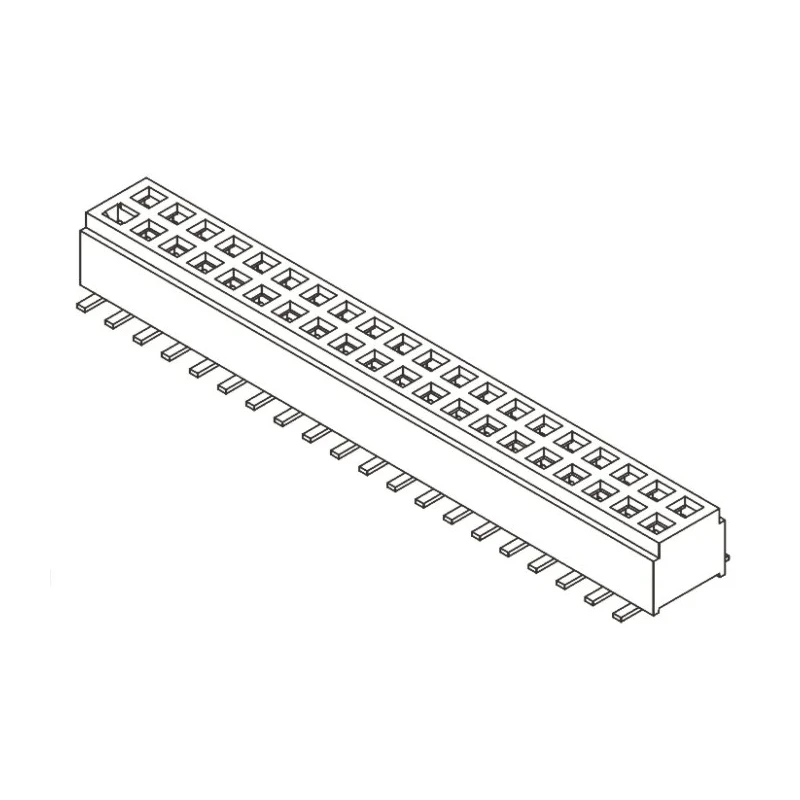

Samtec CLM Series Straight Surface PCB Socket, 20-Contact, 2 Row, 1 mm Pitch, 12A Current, 270V, Gold Plated CLM-110-02-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 270V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55 → 125 °C |
| Current | 12A |
| Model | CLM-110-02-L-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | CLM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Connector System | Board-to-Board |
| Insulator Material | Black LCP |
Key Features
- Features a robust black Liquid Crystal Polymer housing for durability.
- Contacts are made of bronze with 0.25 μm gold plating for excellent conductivity and corrosion resistance.
- Designed for surface mounting with a low profile height of 2.26 mm.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Supports a voltage rating of 270V suitable for diverse electronic applications.
- Mates with Samtec FTMH series headers for flexible system integration.
- Includes a 1.0 mm row and pitch spacing for compact board layouts.
- Termination type is solder, ensuring secure PCB attachment.
Product Description
Samtec CLM-110-02-L-D is a rugged CLM Series straight surface PCB socket featuring 20 contacts arranged in 2 rows with a 1 mm pitch and 12A current capacity. The socket is designed with a black Liquid Crystal Polymer (LCP) housing that provides excellent insulating properties, high strength, and thermal resistance.
The contacts are constructed of bronze with 0.25 μm gold plating on the Tiger Claw contacts and tin on the PCB tails, delivering reliable electrical conductivity and resistance to corrosion. This product supports a voltage rating of 270V and operates efficiently between -55°C and 125°C, making it suitable for demanding industrial and electronic environments.
Mounting is surface type with a straight orientation ensuring easy assembly on PCBs with a low profile height of only 2.26 mm which supports compact and high-density PCB designs. The termination method is solder, enhancing mechanical strength and electrical connection integrity. This connector mates with Samtec FTMH series headers, facilitating board-to-board connections in electronic assemblies.
Housing constructed from Liquid Crystal Polymer offers durability and heat resistance. 20 contacts arranged in 2 rows with 1 mm pitch for high-density applications. Gold plated bronze contacts provide excellent conductivity and corrosion resistance.
Surface mount termination with solder ensures robust PCB attachment. Wide operating temperature range from -55°C to 125°C suits industrial environments. Supports electrical ratings of 12A current and 270V voltage for versatile uses.
Low profile height of 2.26 mm enables compact PCB layouts. Compatible with FTMH series headers for seamless board-to-board connectivity.
This PCB socket is extensively used in industrial tools, electronics components manufacturing, laboratory devices, and sophisticated electronic equipment assembly requiring reliable board interconnections. Its robust material construction and electrical specifications enable efficient and durable electronic system designs.
Explore more high-performance PCB Sockets and connectors to enhance your electronic projects and industrial applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current capacity of 12A, making it suitable for various electronic applications.
The voltage rating for this socket is 270V, allowing it to be used in diverse electronic environments.
It operates reliably within a temperature range of -55°C to 125°C, suitable for demanding industrial conditions.
This socket uses solder termination, ensuring a secure attachment to the PCB.
The socket features a 1 mm pitch and contains 20 contacts arranged in 2 rows.
The housing is made from Liquid Crystal Polymer (LCP), while the contacts are constructed from bronze with gold plating for conductivity.
It is designed to mate with Samtec FTMH series headers, facilitating board-to-board connections.
The CLM-110-02-L-D has a straight orientation and is designed for surface mounting.
This model has a low profile height of 2.26 mm, supporting compact PCB layouts.
It is extensively used in industrial tools, electronics components manufacturing, laboratory devices, and sophisticated electronic equipment assembly.
The country of origin for this socket is India.
