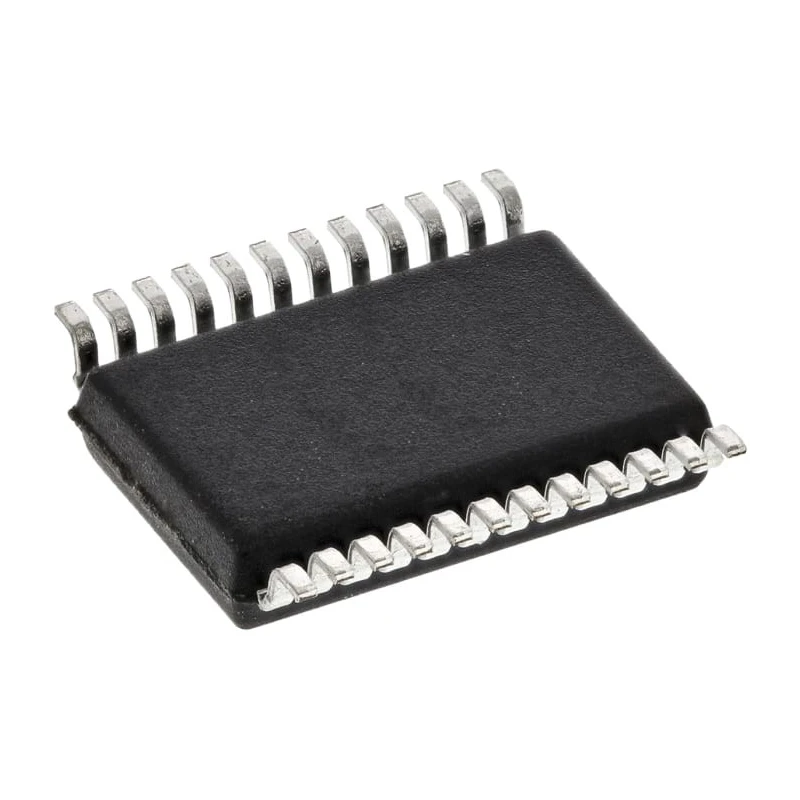

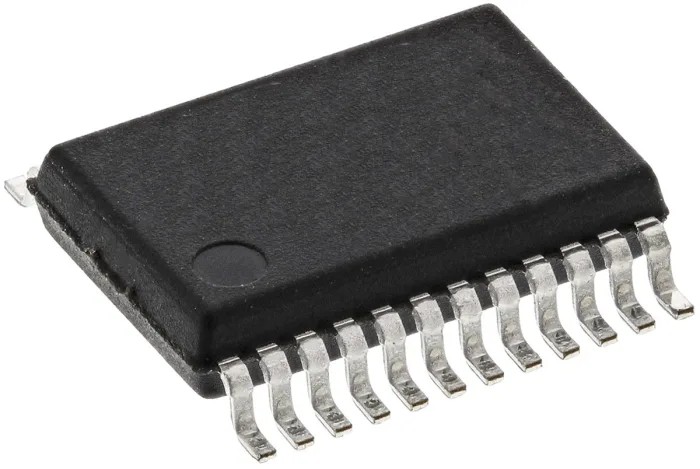

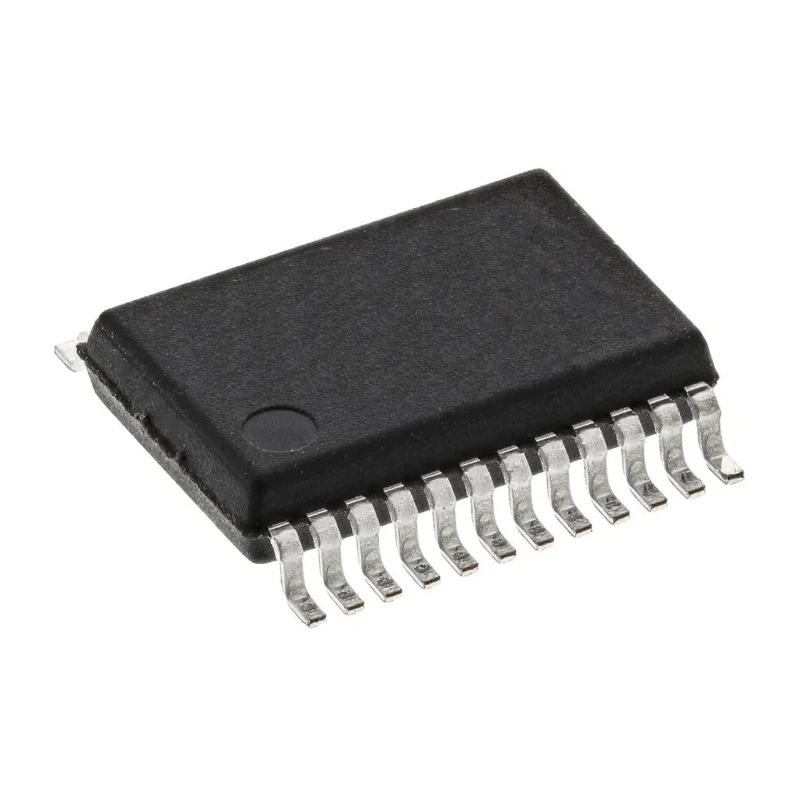

Texas Instruments DAC 16 bit SPI Digital to Analogue Converter 172 ksps 24-Pin SSOP DAC7731EC
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Texas Instruments |
| Height | 2mm |
| Length | 8.5mm |
| Model | DAC7731EC |
| Width | 5.6mm |
| Mount Type | Surface |
| Settling Time | 5μs |
| Sampling rate | 172ksps |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Interface Type | SPI |
| Architecture | Resistor String, R-2R |
| Pin Count | 24 |
| Maximum Supply Voltage | 15.7V |
| Minimum Supply Voltage | -15.7V |
Key Features
- Resistor String, R-2R architecture ensures precise analog output voltage.
- Surface mount 24-Pin SSOP package supports compact PCB designs.
- Operates from -40°C to 85°C for diverse environments.
- Supply voltage range from -15.7V to 15.7V for flexible power conditions.
- Settling time of 5 microseconds enables rapid conversion.
- Single channel output for targeted signal processing.
- Not compliant with automotive standards, designed for general industrial use.
Product Description
Texas Instruments DAC7731EC is a high precision digital to analogue converter featuring 16 bit resolution with a sampling rate of 172 ksps. Housed in a 24-Pin Small Shrink Outline Package (SSOP), this DAC supports SPI interface for streamlined communication with microcontrollers and processors. Its resistor string R-2R architecture delivers accurate analog voltage output suitable for a variety of electronic and industrial applications.
Designed for surface mount technology, the DAC7731EC offers compact dimensions of 8.5mm length, 5.6mm width, and 2mm height, fitting easily on modern PCBs. It operates reliably over a wide temperature range of -40°C to 85°C and supports supply voltages from -15.7V up to +15.7V, making it versatile for use in harsh industrial and laboratory environments.
The device's 5 microsecond settling time allows for rapid and precise conversion, making it ideal for signal processing, instrumentation, and control systems. Although it is not designed to meet automotive standards, the DAC7731EC is excellent for applications in industrial automation, measurement instrumentation, and electronic control systems.
Resistor String R-2R architecture for stable output voltage. Compact 24-Pin SSOP package for surface mounting. Wide temperature and voltage operating ranges. High resolution 16 bit DAC performance. SPI interface for easy integration with microcontrollers.
Fast settling time enabling quick digital to analog conversion. Single channel output suited for focused measurement tasks.
This precision DAC is part of Texas Instruments' portfolio of semiconductor devices designed for reliable and accurate data conversion. It is suitable for demanding industrial, laboratory instrumentation, embedded processing, and electronic control system applications. Explore a wide range of related Digital to Analogue Converters and semiconductor components for your next design at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DAC7731EC features a resolution of 16 bits, allowing for precise analog output voltage.
It has a maximum sampling rate of 172 ksps, enabling rapid data conversion.
This model supports an SPI interface for streamlined communication with microcontrollers and processors.
The DAC7731EC has dimensions of 8.5mm in length, 5.6mm in width, and 2mm in height.
It operates reliably within a temperature range of -40°C to 85°C, suitable for diverse environments.
The settling time for this digital to analogue converter is 5 microseconds, allowing for quick conversions.
This unit provides a single channel output, which is suited for targeted signal processing applications.
It supports a supply voltage range from -15.7V to +15.7V, providing flexibility in power conditions.
This model utilizes a resistor string R-2R architecture, ensuring stable and accurate analog output.
It provides an analogue voltage output, suitable for various electronic applications.
No, the DAC7731EC is not compliant with automotive standards and is designed for general industrial use.
The DAC7731EC is manufactured in India.
