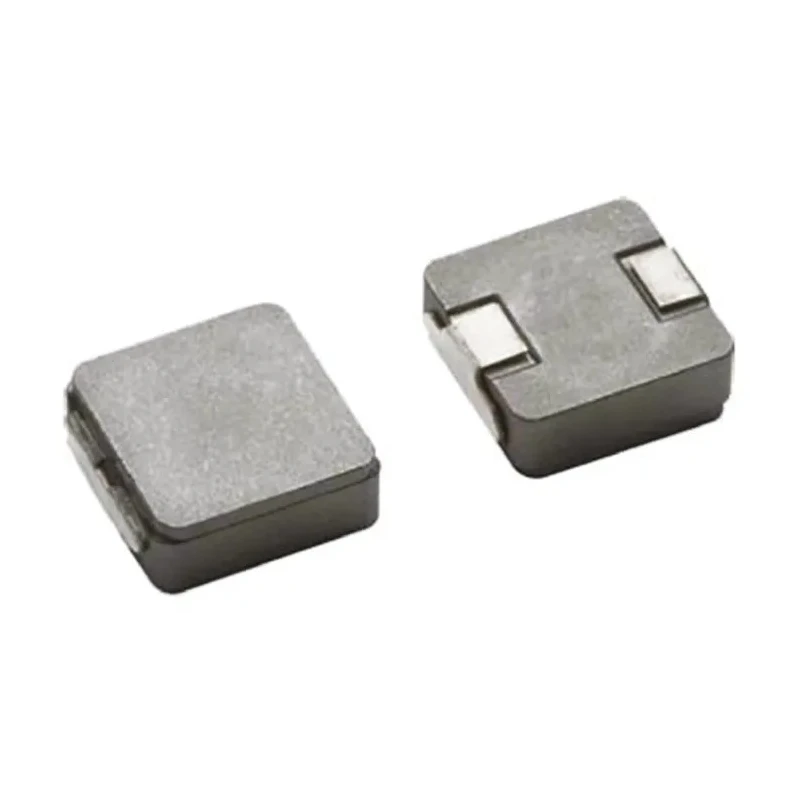

Vishay 4040 Shielded Surface Mount Inductor 100 μH ±20% 2.5 A Idc Metal Composite Core IHLP4040DZER101M11
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 4mm |
| Length | 10.8mm |
| Model | IHLP4040DZER101M11 |
| Depth | 10.16mm |
| Series | IHLP-4040DZ-11 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 100μH |
| Standards/Approvals | RoHS, IEC, JEDEC |
| Package/Case | 4040 |
| Maximum DC Current | 2.5A |
| Maximum DC Resistance | 270mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 1MHz |
| Inductor Construction | Shielded |
Key Features
- Constructed with a durable metal composite core for high performance.
- Shielded design reduces electromagnetic interference and noise.
- Compact 4040 package size with dimensions 10.8 mm length, 4 mm height, and 10.16 mm depth.
- Operates in a wide temperature range from -55°C to 125°C.
- Maximum DC resistance of 270 mΩ ensuring efficiency in power applications.
- Resonant frequency up to 1 MHz suitable for high frequency circuits.
- Surface mount termination style facilitates easy PCB assembly.
- Compliance with RoHS, IEC, and JEDEC standards ensures quality and environmental safety.
Product Description
Vishay IHLP4040DZER101M11 is a high current, shielded surface mount inductor designed with a metal composite core, offering an inductance of 100 μH ±20% tolerance and supporting a maximum DC current of 2.5 A. This 4040 package inductor features ultra-low buzz noise due to its composite construction and is magnetically shielded to minimize electromagnetic interference in sensitive electronic circuits.
The component measures 10.8 mm in length, 4 mm in height, and 10.16 mm in depth, making it suitable for compact PCB designs. It operates effectively in a temperature range from -55°C to 125°C and has a maximum DC resistance of 270 mΩ, providing efficient current conduction with minimal losses.
This inductor supports applications in PDA, notebook, desktop, and server devices, high current POL converters, low profile power supplies, battery-powered devices, and DC/DC converters in distributed power systems. The maximum self-resonant frequency of 1 MHz makes it appropriate for high-frequency switching power supply circuits.
Its surface mount termination style ensures easy and reliable mounting on circuit boards. It meets RoHS, IEC, and JEDEC compliance standards, ensuring its quality and environmental friendliness.
Durable metal composite core construction enhances magnetic performance. Shielded design provides protection against electromagnetic noise. Compact and low profile to save PCB space. Wide operating temperature range from -55°C to 125°C.
Low DC resistance of 270 mΩ for high efficiency. High-frequency operation capability with 1 MHz resonant frequency. Surface mount termination for automated assembly. Compliant with international environmental and quality standards.
Suitable for various power converter and portable electronics applications.
This Vishay surface mount inductor is an essential component for industrial, commercial, and electronic instrumentation requiring reliable inductance performance and noise suppression. Browse more Surface Mount Inductors on EnvMart to find components that meet your design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay IHLP4040DZER101M11 has an inductance value of 100 μH with a tolerance of ±20%.
This model supports a maximum DC current of 2.5 A.
It measures 10.8 mm in length, 4 mm in height, and 10.16 mm in depth.
The maximum DC resistance is 270 mΩ, ensuring efficient current conduction.
It operates effectively within a temperature range of -55°C to 125°C.
The maximum self-resonant frequency is 1 MHz, suitable for high-frequency applications.
This inductor is constructed with a metal composite core, enhancing its magnetic performance.
It features a surface mount termination style for easy PCB assembly.
It complies with RoHS, IEC, and JEDEC standards, ensuring quality and environmental safety.
This inductor is suitable for applications in PDA, notebook, desktop, server devices, and DC/DC converters.
It features a shielded construction, which minimizes electromagnetic interference.
This model belongs to the IHLP-4040DZ-11 series.
