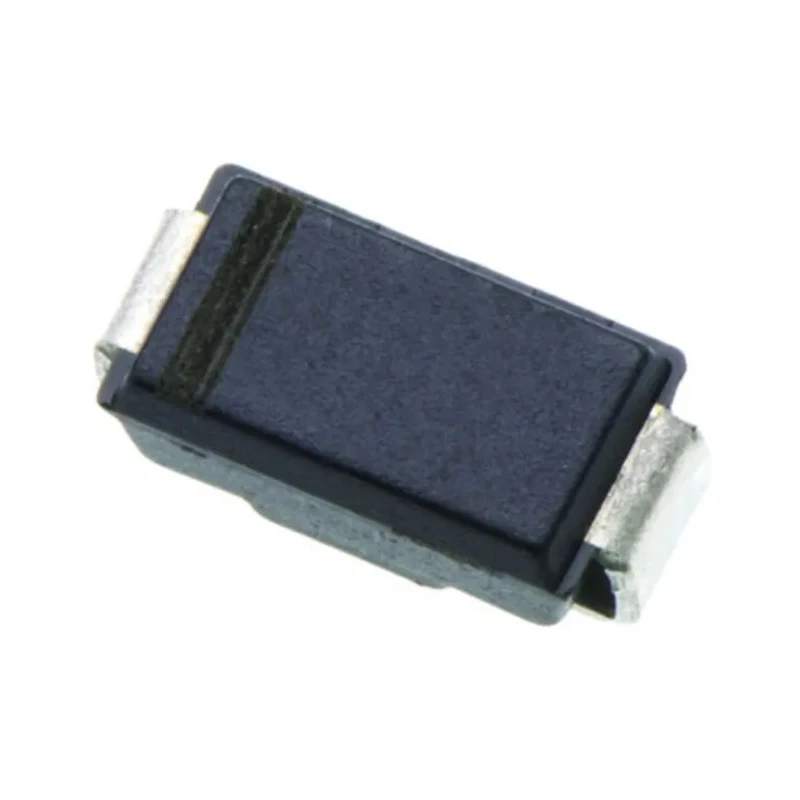

Taiwan Semiconductor 100 V 1 A Schottky Barrier Rectifier Surface Mount DO-214AC SS110 R3
Specifications
| Country of Origin | China |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.3mm |
| Length | 4.6mm |
| Model | SS110 R3 |
| Width | 2.83mm |
| Mount Type | Surface |
| Series | SS12 - SS115 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC (SMA) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS, UL E-326243 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 400μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 800mV |
Key Features
- Designed with Schottky technology for low forward voltage drop of 800 mV.
- Capable of handling peak forward surge current up to 30 A.
- Operates reliably from -65°C to 150°C ambient temperature range.
- Compact dimensions of 4.6 mm length, 2.83 mm width, and 2.3 mm height for tight PCB layouts.
- Includes 2-pin configuration suitable for surface mounting applications.
- Complies with RoHS and UL E-326243 standards for quality and safety.
- Qualified to automotive standard AEC-Q101 for reliability in automotive environments.
Product Description
Taiwan Semiconductor SS110 R3 is a low-loss Schottky barrier rectifier designed for surface mount applications, with a maximum continuous forward current of 1 A and peak repetitive reverse voltage of 100 V. This diode supports a diode configuration with a single Schottky barrier junction and operates efficiently with a low forward voltage drop of 800 mV.
The device features a compact DO-214AC (SMA) package, measuring 4.6 mm in length, 2.83 mm in width, and 2.3 mm in height, enabling designers to save board space while maintaining robust performance. It supports a broad operating temperature range from -65°C to 150°C and can withstand a peak non-repetitive forward surge current of 30 A, ensuring resilience under transient conditions.
SS110 R3 diodes comply with industry standards including RoHS and UL E-326243 certification, and they meet the automotive AEC-Q101 standard for applications requiring automotive-grade components. The device’s peak reverse current is limited to 400 μA, contributing to efficient energy management in various electronic power circuits.
Typical applications for the SS110 R3 Schottky Barrier Rectifier include power rectification, voltage clamping, and reverse current protection in industrial, automotive, and consumer electronics sectors. The diode provides fast switching speeds and high reliability in demanding low voltage and high frequency switching environments.
This product is ideal for use in power management circuits, automotive electrical systems, telecommunications, and industrial control systems where efficiency and compact design are priorities. Its surface mount design facilitates automated assembly and cost-effective mass production.
Designed with Schottky technology for low forward voltage drop of 800 mV. Capable of handling peak forward surge current up to 30 A. Operates reliably from -65°C to 150°C ambient temperature range. Compact dimensions of 4.6 mm length, 2.83 mm width, and 2.3 mm height for tight PCB layouts.
Includes 2-pin configuration suitable for surface mounting applications. Complies with RoHS and UL E-326243 standards for quality and safety. Qualified to automotive standard AEC-Q101 for reliability in automotive environments.
Explore additional semiconductor and diode solutions on EnvMart to meet your electronics design and production needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 1 A.
The peak reverse repetitive voltage is 100 V.
It has a low forward voltage drop of 800 mV.
The dimensions of the DO-214AC package are 4.6 mm in length, 2.83 mm in width, and 2.3 mm in height.
It operates reliably within a temperature range of -65°C to 150°C.
This diode can handle a peak non-repetitive forward surge current of up to 30 A.
It complies with RoHS and UL E-326243 standards, and is qualified to the automotive standard AEC-Q101.
The SS110 R3 features a 2-pin configuration suitable for surface mounting applications.
The peak reverse current is limited to 400 μA.
Typical applications include power rectification, voltage clamping, and reverse current protection in industrial, automotive, and consumer electronics sectors.
It is a Schottky barrier rectifier designed for low-loss performance.
The AEC-Q101 qualification indicates that the diode is reliable for automotive environments, meeting specific industry standards for automotive components.
