| Country of Origin | India |
|---|---|
| Brand | Toshiba |
| Model | CUS10S30,H3F(T |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | USC |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 5A |
| Maximum Forward Voltage Vf | 0.45V |

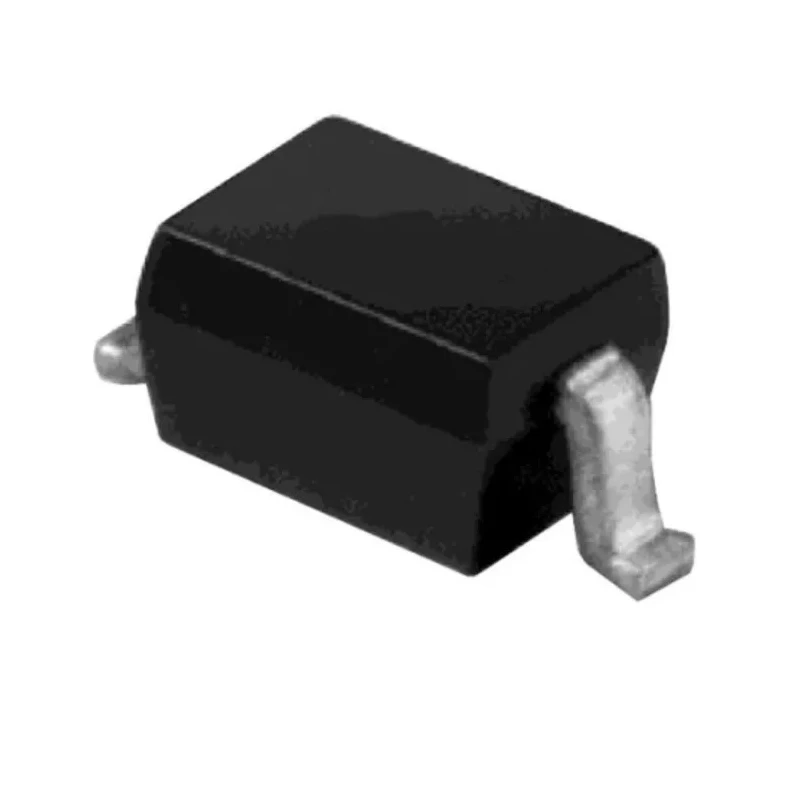

Toshiba CUS10S30,H3F(T is a surface mount Schottky switching diode designed with a USC package, equivalent to SOD-323 and SC-76 packages. It accommodates maximum continuous forward current of 5A and peak reverse voltage of 30V, making it suitable for demanding high speed switching applications in electronic circuits.
The diode features a low forward voltage drop of 0.45V, which enhances efficiency by minimizing power dissipation. It supports an operating temperature range from -55°C up to 125°C, ensuring reliable operation in diverse environments. Its low peak reverse current of 500μA further contributes to energy saving and circuit stability.
The diode is housed in a compact USC package optimized for surface mounting applications, providing space-saving benefits in electronic assemblies. It conforms to RoHS standards, ensuring compliance with environmental regulations.
Surface mount USC package compatible with standard PCB assembly. Robust maximum forward current rating of 5A. Peak reverse repetitive voltage rated at 30V. Low forward voltage ensures efficient switching. Wide operating temperature range from -55°C to 125°C.
Suitable for high speed switching circuits. Compliant with RoHS environmental directive.
This diode is ideal for industrial, commercial, and consumer electronics applications requiring reliable and efficient power rectification. It is commonly used in power supplies, switching circuits, and protection applications.
Explore more components and electronic parts in the Semiconductor and Schottky Diode categories on EnvMart for your industrial and commercial needs.
