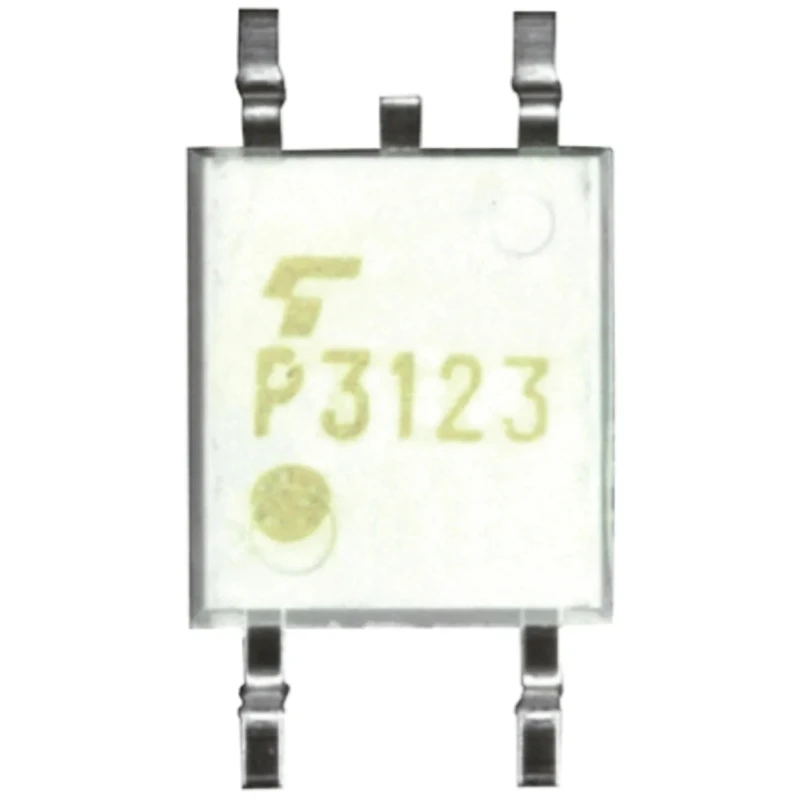

Toshiba Solid State Relay, Surface Mount, 1 A Load Current, 40 V Load Voltage TLP3123(F)

Toshiba TLP3123(F) is a high-quality Solid State Relay designed for precise and reliable switching in electrical and electronic systems. It supports a maximum load current of 1 ampere and a maximum load voltage of 40 volts, making it ideal for low power switching applications. The surface mount design allows for easy integration on printed circuit boards (PCB) in compact form factor.

This relay features a single pole single throw normally open (SPST-NO) contact configuration with a 4-pin terminal type and photo MOSFET output, which ensures fast, noise-free switching with electrical isolation for enhanced circuit safety. Its low on-state resistance of 0.1 ohms minimizes power dissipation and heat generation during operation.

Operating temperatures span from -40°C to 85°C, enabling dependable performance in diverse industrial, automation, and consumer electronic environments. The component complies with important safety and environmental standards including RoHS, cUL, UL, and VDE, reflecting Toshiba's commitment to quality and regulatory adherence.

Physically, the relay is compact with dimensions 4.4 mm length, 7 mm width, and 3.9 mm height, allowing for space-efficient circuit designs. Off state leakage current is exceptionally low at 1 nanoampere, contributing to energy savings in circuitry.

Manufactured in Japan, the Toshiba TLP3123(F) solid state relay is suitable for use in industrial automation, electrical controls, measurement instruments, and advanced electronic equipment where reliable, silent switching and longevity are required.

Compact surface mount packaging suitable for PCB assembly. Supports a maximum load current of 1 ampere. Maximum load voltage rating of 40 volts for low power switching. Operates reliably between -40°C and 85°C operating temperatures.

Low on-state resistance of 0.1 ohms ensures minimal power loss. Single pole single throw normally open contact configuration. 4-pin terminal type with photo MOSFET output for electrical isolation. Compliant with RoHS, cUL, UL, and VDE standards.

Off-state leakage current of 1 nanoampere reduces power loss. Compact dimensions: 4.4 mm length x 7 mm width x 3.9 mm height. Manufactured in Japan for quality assurance. Explore the full range of Solid State Relays and electronic components on EnvMart for industrial and automation solutions.
