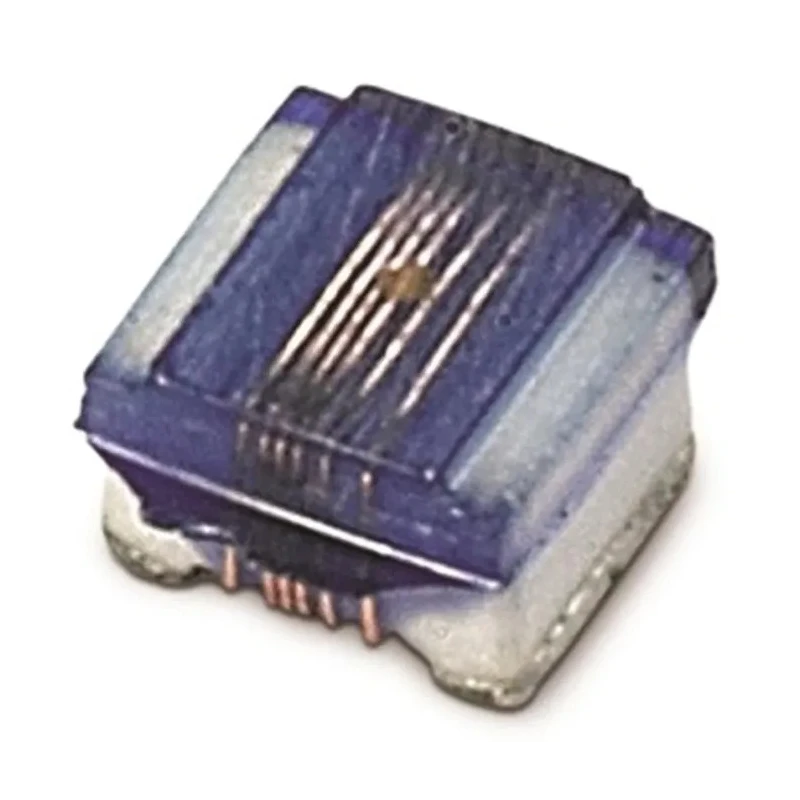

TE Connectivity WE-KI 0402 Unshielded Wirewound Surface Mount Inductor with Ceramic Core 33 nH ±5 % 400 mA Idc 744765133A
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.5mm |
| Length | 1mm |
| Model | 744765133A |
| Depth | 0.55mm |
| Packaging | Tape & Reel |
| Series | WE-KI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 33nH |
| Standards/Approvals | REACH, IEC 61249-2-21, RoHS, JEDEC JS709B |
| Package/Case | 0402 |
| Maximum DC Current | 400mA |
| Pin Count | 2 |
| Maximum DC Resistance | 350mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.35GHz |
| Minimum Quality Factor | 24 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Designed for high frequency applications with up to 2.35 GHz self-resonant frequency.
- Compact 0402 package with 1 mm length, 0.5 mm height, and 0.55 mm depth dimensions.
- Constructed with ceramic core and wirewound inductance ensuring high thermal stability.
- Supports maximum DC current of 400 mA with low DC resistance of 350 milliohms.
- Compliant with AEC-Q200, REACH, IEC 61249-2-21, RoHS, and JEDEC JS709B standards.
- Operates reliably between -40°C and 125°C temperature range.
- Unshielded surface mount two-pin termination style designed for reflow soldering.
- Tape and reel packaging format supports automated assembly processes.
Product Description
Wurth Elektronik 744765133A wirewound surface mount inductor from the WE-KI series provides reliable inductance of 33 nH with a ±5 % tolerance. Housed in a compact 0402 package measuring 1 mm length, 0.5 mm height, and 0.55 mm depth, this inductor is designed for demanding high frequency circuits up to 2.35 GHz.
The ceramic core construction ensures excellent thermal stability and high quality factor of at least 24, making it ideal for RF applications including wireless LAN, Bluetooth, and RF transceiver communication. It supports a maximum DC current of 400 mA and maintains a low DC resistance of 350 milliohms to reduce power losses during operation.
This component operates reliably within temperature ranges from -40°C up to 125°C and complies with automotive standard AEC-Q200 as well as environmental directives such as REACH and RoHS, ensuring usage in automotive and industrial electronics.
The unshielded wirewound design facilitates efficient reflow soldering assembly onto printed circuit boards. Its two-pin surface mount termination style supports automated production processes.
This inductor is suited for industrial and telecommunications electronics requiring precise, stable inductance values at high frequencies. The compact 0402 size supports dense PCB layouts in modern electronics manufacturing.
Reliable performance under wide temperature range and compliance with multiple environmental and automotive standards enhance its suitability for automotive and industrial applications.
Ceramic core construction aids in maintaining inductance stability and thermal endurance. The product’s tape and reel packaging format simplifies automated PCB assembly processes. Explore the wide selection of electronic components such as inductors, capacitors, and resistors offered by EnvMart for your industrial and manufacturing needs.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 33 nH with a tolerance of ±5%.
It supports a maximum DC current of 400 mA.
The dimensions are 1 mm in length, 0.5 mm in height, and 0.55 mm in depth.
The maximum self-resonant frequency is 2.35 GHz.
It operates reliably between -40°C and 125°C.
The inductor has a low DC resistance of 350 milliohms.
It complies with AEC-Q200, REACH, IEC 61249-2-21, RoHS, and JEDEC JS709B standards.
It features a surface mount two-pin termination style designed for reflow soldering.
The inductor is constructed with a ceramic core.
This model has a minimum quality factor of 24.
It is available in tape and reel packaging format, which supports automated assembly processes.
It is suitable for high frequency applications including wireless LAN, Bluetooth, and RF transceiver communication.
