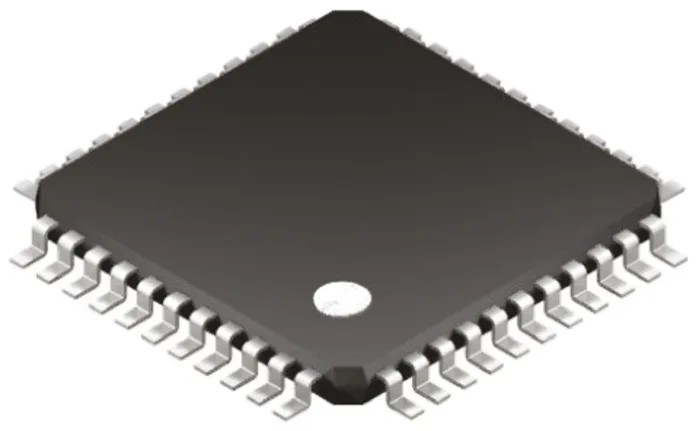

Microchip PIC18LF4550-I/PT 8 Bit PIC Microcontroller, 48 MHz, 32 kB FLASH, 2.048 kB RAM, 44-Pin TQFP PIC18LF4550-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC18LF4550-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18LF4550 |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 2.048kB |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 2V |
| Device Core | PIC |
| Program Memory Size | 32, 256kB |
| Maximum Clock Frequency | 48MHz |
| Number of Programmable I/Os | 25 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 32kB |
| Number of Timers | 4 |
| Instruction Set Architecture | RISC |
| ADCs | 13 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates with a maximum supply voltage of 5.5 V and minimum supply voltage of 2 V.
- Equipped with 25 programmable input/output pins for versatile interfacing.
- Includes 13 channels of 10-bit ADCs for analog signal processing.
- Built on RISC architecture supporting 4 timers and 2 analogue comparators.
- Compact dimensions of 10 mm length, 10 mm width, and 1.05 mm height for space savings.
- Designed for operating temperature ranges from -40°C to 85°C suitable for industrial environments.
- Program memory type is FLASH with maximum expanded memory size of 32 kB.
- Power dissipation rating of 1 W ensures reliable operation under various load conditions.
Product Description
Microchip PIC18LF4550-I/PT is a high-performance 8-bit PIC microcontroller designed for versatile embedded applications requiring efficient processing, low power consumption, and compact form factor. Operating at a maximum clock frequency of 48 MHz, it offers 32 kB of program flash memory and 2.048 kB of RAM to accommodate complex program demands.
This microcontroller is housed in a 44-pin Thin Quad Flat Package (TQFP), with precise dimensions of 10 mm by 10 mm by 1.05 mm, making it suitable for space-constrained industrial and commercial device integrations. It supports surface mounting technology, allowing for automated manufacturing processes and high-volume production efficiency.
Equipped with 25 programmable input/output pins, the PIC18LF4550-I/PT facilitates flexible interfacing with digital and analog systems. The inclusion of 13 channels of 10-bit Analog-to-Digital Converters (ADC) enhances its capability for precise analog signal measurement and control.
The device operates reliably within a broad temperature range from -40 degrees Celsius up to +85 degrees Celsius, making it suitable for challenging industrial and automotive environments. It has a maximum rated supply voltage of 5.5 volts and can operate down to a minimum of 2 volts.
48 MHz maximum clock frequency for fast processing. 32 kB FLASH program memory and 2.048 kB RAM for robust application code. RISC architecture supports 4 on-chip timers and 2 analogue comparators. Power dissipation limited to 1 watt ensures thermal stability.
Wide temperature operating range from -40°C to +85°C. Surface mount TQFP 44-pin package enables compact PCB designs. 13 multi-channel 10-bit ADC inputs for analog signal conversion. 25 programmable input/output pins for flexible interfacing.
Suitable for industrial, embedded systems, automation, and control applications.
Designed for use in industrial, laboratory, commercial electronics, and embedded system development, the PIC18LF4550-I/PT supports efficient designs requiring performance and reliability. Users can leverage its features for tasks such as sensor interfacing, signal processing, control systems, and prototyping.
Discover more Microcontrollers and embedded solutions in the Electronics & Electricals category to enhance your product designs and manufacturing capabilities through EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 48 MHz.
It has a program memory size of 32 kB.
This microcontroller is equipped with 25 programmable input/output pins.
It operates within a temperature range from -40°C to +85°C.
This model is housed in a 44-pin Thin Quad Flat Package (TQFP).
It includes 2.048 kB of RAM.
The power dissipation rating is limited to 1 watt.
There are 13 channels of 10-bit ADCs for analog signal processing.
The minimum supply voltage is 2 volts.
It is built on RISC architecture, supporting efficient processing.
The maximum supply voltage is 5.5 volts.
