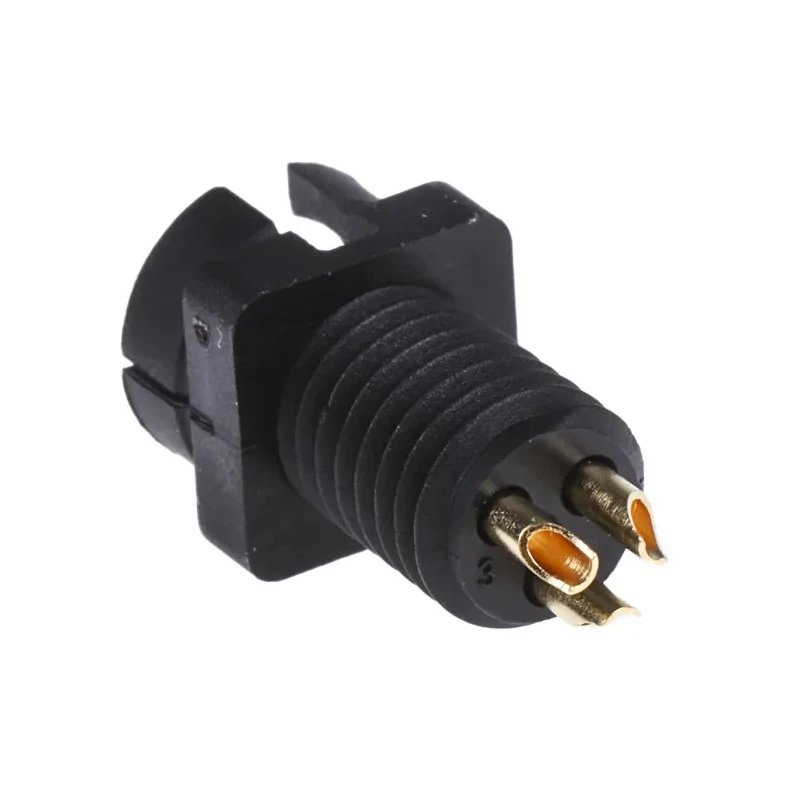

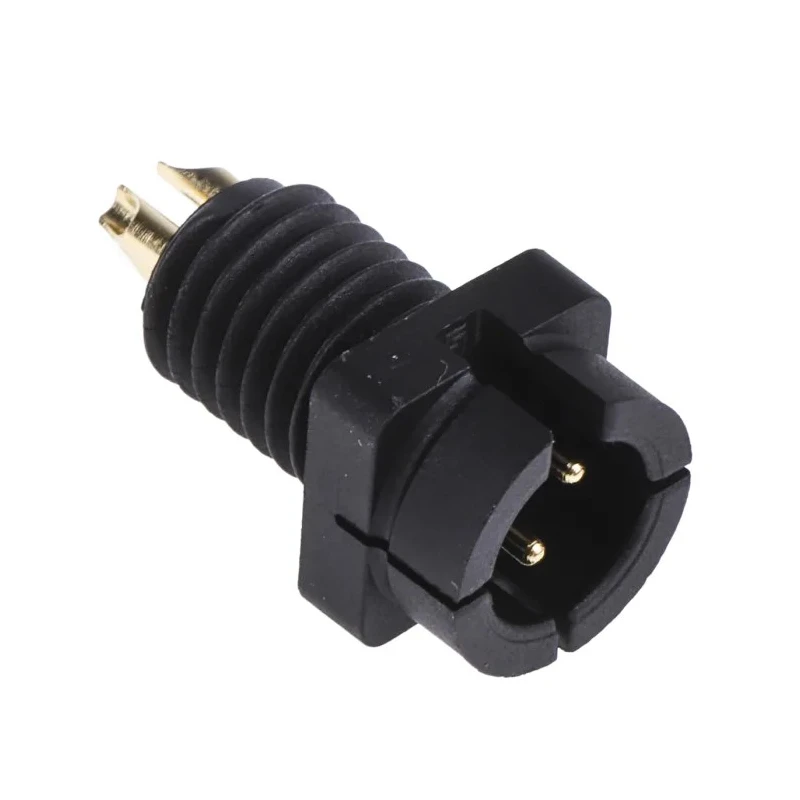

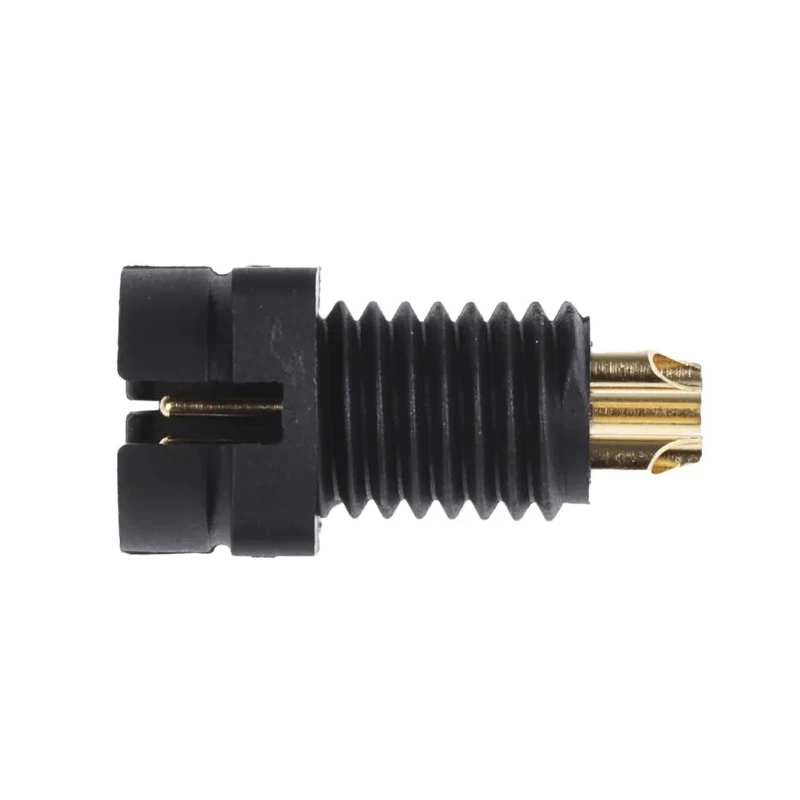

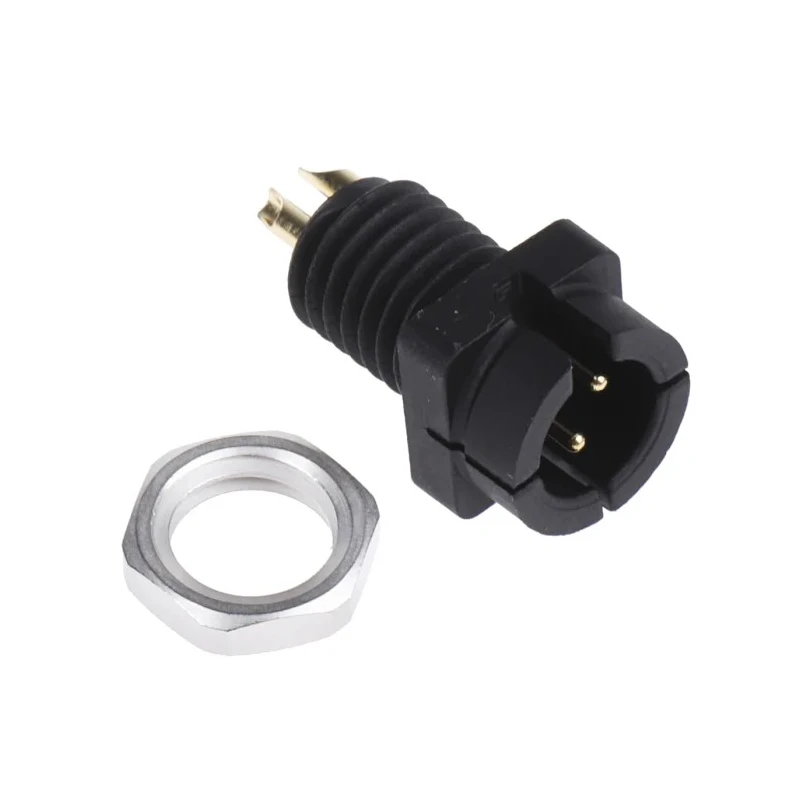

Binder Circular Connector 3 Contacts Panel Mount Subminiature Plug Male IP40 719 Series 09-9749-30-03
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 60V |
| Brand | Binder |
| Orientation | Straight |
| Current | 3A |
| IP Rating | IP40 |
| Mount Type | Panel Mount |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | 719 |
| Termination Type | Solder |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Contact Plating | Gold |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shell Size | 6.4 mm |
| Mating Type | Threaded |
| Connector Size | Subminiature |
| Plug/Socket | Plug |
Key Features
- Features a straight body orientation for reliable connection.
- Rated for 60V voltage and 3A current per contact.
- Constructed with polyamide housing and gold-plated brass contacts for durability.
- Solder termination with threaded mating ensures secure attachments.
- Operating temperature ranges from -25°C to 70°C suitable for varied environments.
- Robust design with snap-in locking for efficient mating cycles exceeding 100 times.
- Ideal for electrical equipment, control systems, and power distribution applications.
- Compact subminiature size with 6.4 mm shell diameter for space-saving integration.
Product Description
Binder 09-9749-30-03 circular connector is a high-quality industrial-grade product featuring a 3 contacts panel mount subminiature plug designed to withstand demanding electrical applications. It belongs to the Binder 719 Series and is rated at 60V with a current capacity of 3A per contact. This male connector incorporates a straight orientation and a plug-type connection to ensure reliable signal transmission.
Its robust polyamide housing provides excellent mechanical strength and resistance to environmental challenges. The gold-plated brass contacts enhance conductivity and prevent corrosion, making it suitable for industrial, manufacturing, HVAC, and power distribution systems. The connector’s IP40 rated protection assures safe use from foreign object ingress in controlled environments.
Designed for ease of installation and long service life, this connector features solder termination and a threaded mating type securing connection integrity. Its operating temperature range from -25°C to 70°C supports various industrial and commercial conditions without degradation.
With over 100 mating cycles durability, the Binder 09-9749-30-03 circular connector ensures consistent performance throughout its lifespan. Its subminiature shell size of 6.4 mm allows compact device and panel integration, saving valuable space on electrical panels and equipment.
Features a straight body orientation for reliable connection. Rated for 60V voltage and 3A current per contact. Constructed with polyamide housing and gold-plated brass contacts for durability. Solder termination with threaded mating ensures secure attachments.
Operating temperature ranges from -25°C to 70°C suitable for varied environments. Robust design with snap-in locking for efficient mating cycles exceeding 100 times. Ideal for electrical equipment, control systems, and power distribution applications.
Compact subminiature size with 6.4 mm shell diameter for space-saving integration.
Perfect for industrial automation, laboratory instruments, commercial electrical assemblies, and manufacturing controls, this Binder circular connector combines durability, precision, and ease of use. Explore the extensive range of Industrial Circular Connectors on EnvMart for compatible and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 60V voltage and can handle a current of 3A per contact.
It has an IP40 rating, which provides protection against foreign object ingress in controlled environments.
The housing is made of polyamide, and the contacts are constructed from brass with gold plating for enhanced conductivity.
It operates effectively within a temperature range of -25°C to 70°C.
This circular connector features 3 contacts.
It utilizes solder termination for secure connections.
The shell diameter of this subminiature connector is 6.4 mm.
It features a threaded mating type that ensures connection integrity during use.
It is ideal for electrical equipment, control systems, and power distribution applications.
This connector has a straight body orientation for reliable connections.
It is designed for over 100 mating cycles, ensuring durability in use.
The country of origin for this connector is Germany.
