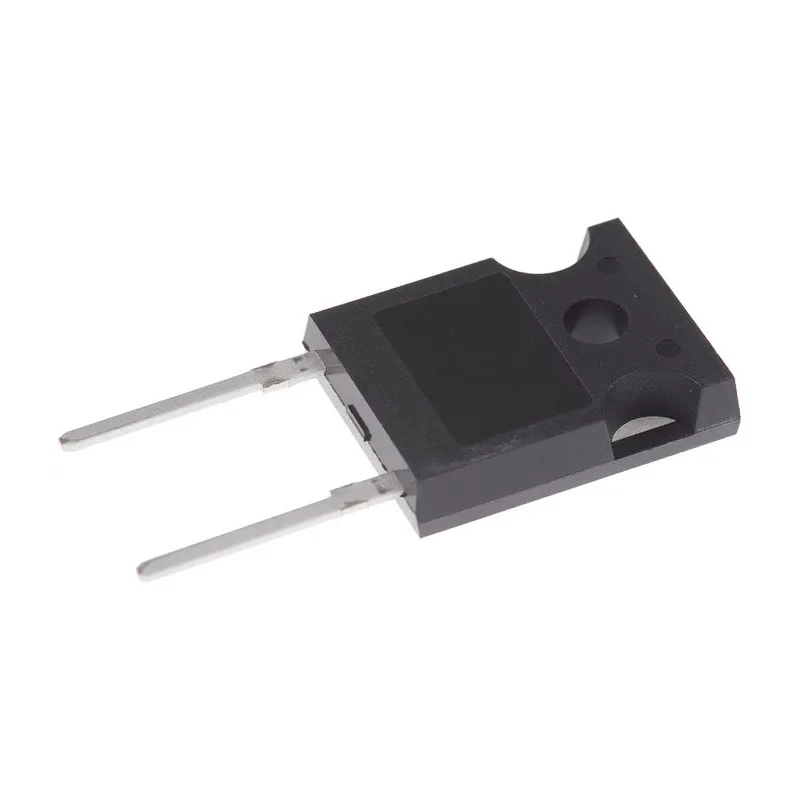

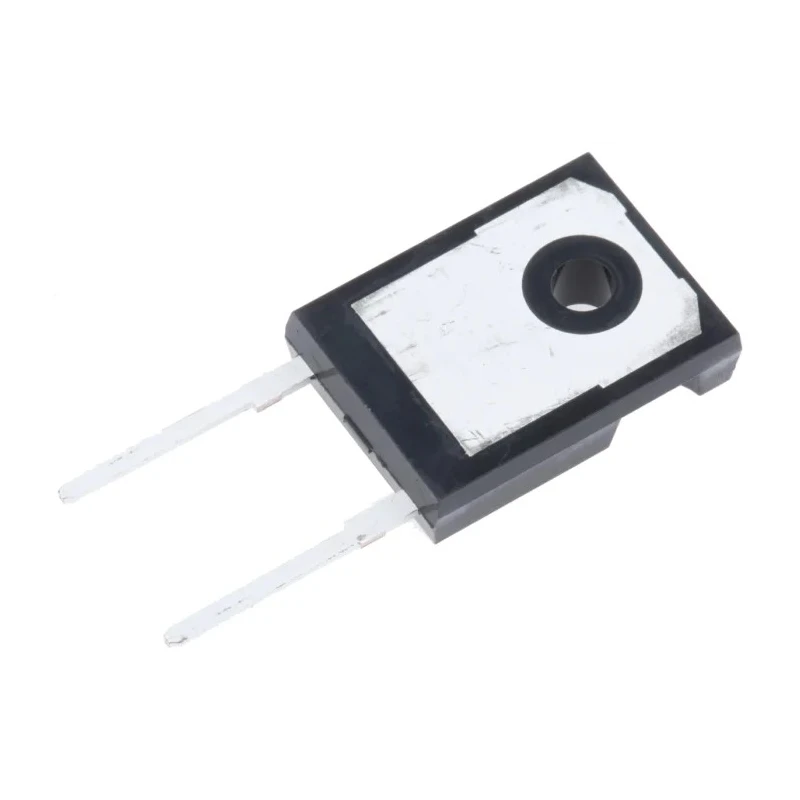

Vishay 800 V 60 A Fast Recovery Diode 2-Pin TO-247 VS-60EPS08-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 20.7mm |
| Brand | Vishay |
| Height | 20.7mm |
| Length | 15.87mm |
| Model | VS-60EPS08-M3 |
| Width | 5.31mm |
| Mount Type | Through Hole |
| Series | VS-60EPS-M3 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 60A |
| Peak Reverse Repetitive Voltage Vrrm | 800V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.1kA |
| Maximum Forward Voltage Vf | 1.09V |
| Peak Reverse Recovery Time trr | 40ns |
Key Features
- This diode supports a maximum continuous forward current of 60 A.
- It has a peak reverse repetitive voltage rating of 800 V suitable for demanding circuit conditions.
- The fast recovery rectifier type allows quick switching, enhancing performance in electronic power circuits.
- The maximum forward voltage drop is 1.09 V, optimizing power efficiency.
- It features a peak non-repetitive forward surge current capacity of 1.1 kA.
- Operating temperature ranges from -40°C to a maximum of 150°C.
- The device has a peak reverse recovery time of 40 ns for reduced switching losses.
- Standard industry package TO-247 with a height of 20.7 mm and length of 15.87 mm facilitates easy integration.
Product Description
Vishay VS-60EPS08-M3 is a high-performance fast recovery diode rated at 800 V and 60 A continuous forward current, encapsulated in a 2-pin TO-247 through-hole package. This diode is engineered for demanding power rectification applications in industrial, power electronics, and electronic components sectors.
Designed to optimize switching efficiency, the fast recovery nature reduces switching losses and heat generation, making it suitable for high-frequency power conversion, power supplies, and motor control circuits. Its ability to handle surge currents of up to 1.1 kA enhances reliability under transient conditions.
The diode's voltage drop of 1.09 V ensures minimal conduction loss while withstanding peak reverse voltages up to 800 V. Operating range from -40°C to 150°C ensures durability in harsh electrical environments.
The standard TO-247 package provides robust thermal management and convenient mounting for electronic engineers. This diode supports a maximum continuous forward current of 60 A. Peak reverse repetitive voltage rating of 800 V is ideal for power applications.
Fast recovery rectifier type enables quick switching for efficiency. Maximum forward voltage is 1.09 V, minimizing power loss. Peak non-repetitive forward surge current capacity is 1.1 kA. Operating temperature range from -40°C to 150°C.
Peak reverse recovery time is 40 ns, reducing switching losses. Featuring a robust TO-247 through-hole package with dimensions height 20.7 mm, length 15.87 mm, and width 5.31 mm. Complies with RoHS standards for environmental and safety compliance.
This diode is widely used in power electronics, industrial equipment, and electronic design applications where efficient diode switching and high current capacity are paramount. Explore more semiconductor components on EnvMart for your engineering and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 60 A.
This model has a peak reverse repetitive voltage rating of 800 V.
The maximum forward voltage drop is 1.09 V, optimizing power efficiency.
It features a peak non-repetitive forward surge current capacity of 1.1 kA.
The operating temperature range is from -40°C to a maximum of 150°C.
The peak reverse recovery time is 40 ns, which helps in reducing switching losses.
This diode is encapsulated in a standard TO-247 package.
The dimensions of the TO-247 package are height 20.7 mm, length 15.87 mm, and width 5.31 mm.
This model is a fast recovery rectifier type, designed for quick switching.
Yes, it complies with RoHS standards for environmental and safety compliance.
The diode has a pin count of 2.
This diode is widely used in power electronics, industrial equipment, and electronic design applications.
