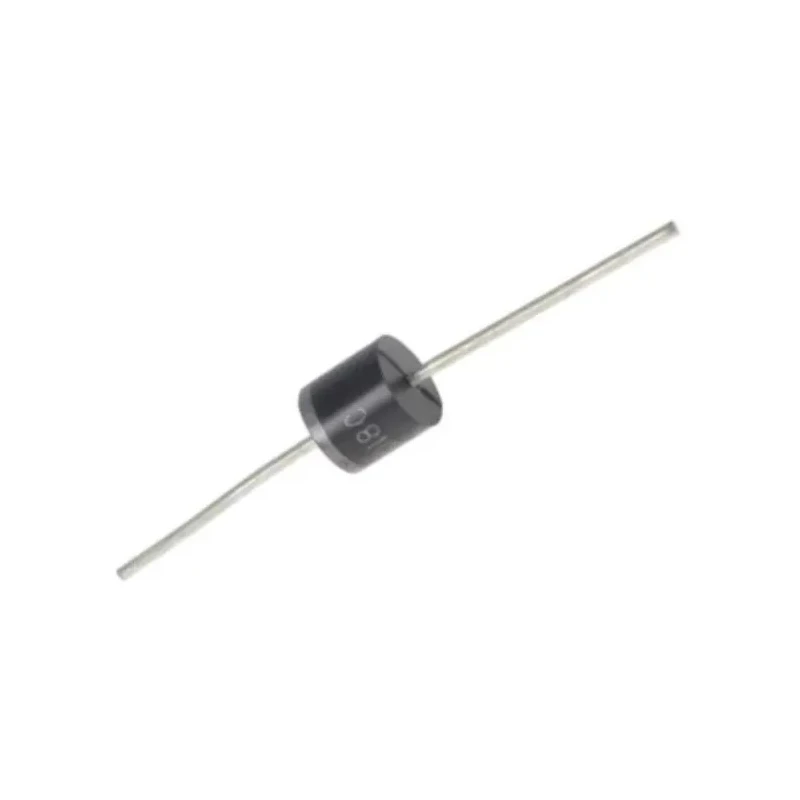

Vishay Switching Diode 600 V 6 A 2-Pin P600 GI756-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | GI756-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | GI756 |
| Maximum Operating Temperature | 150°C |
| Package Type | P600 |
| Minimum Operating Temperature | -50°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 6A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 2.5μs |
| Vishay 600V 6A, Silicon Junction Diode, 2-Pin P600 GI756-E3Brand | Vishay |
Key Features
- The diode supports a maximum continuous forward current of 6 amperes.
- It features a peak reverse repetitive voltage of 600 volts ensuring robust voltage handling.
- Packaged in a standard P600 through-hole package with 2 pins for easy PCB mounting.
- Has a peak reverse recovery time of 2.5 microseconds suitable for switching applications.
- Operating temperature range is from -50°C to 150°C accommodating harsh environments.
- The diode exhibits a maximum forward voltage drop of 1.25 volts minimizing power loss.
- It complies with RoHS standards and AEC-Q101 automotive certification ensuring quality and environmental compliance.
- Compact physical dimensions of 9.1 mm length, width, height, and diameter make it suitable for space-constrained applications.
Product Description
Vishay GI756-E3/54 switching diode is a high-quality semiconductor device designed to provide efficient rectification and switching in electronic circuits. Rated at 600 V peak reverse voltage and 6 A continuous forward current, this diode fits applications in power electronics, automotive electronics, and industrial electronics.
This diode uses a silicon junction technology configured as a single diode within the P600 package with through-hole mount style and 2 pins for secure PCB attachment. It features a peak reverse recovery time of 2.5 microseconds, enabling quick switching performance which is essential in power supply circuits and switching regulators.
The diode is engineered to operate reliably in a wide temperature range from -50°C to 150°C, making it suitable for both industrial and automotive environments complying with the AEC-Q101 automotive standard.
The maximum forward voltage drop of 1.25 V helps reduce conduction losses and improve energy efficiency in the overall system. Dimensions of the diode are compact at 9.1 mm in length, width, height, and diameter, facilitating easy integration into dense circuitry.
The diode supports a maximum continuous forward current of 6 amperes. The peak reverse voltage is rated at 600 volts ensuring AC and DC tolerance. The package type P600 offers standard through-hole mounting convenience. Certified for RoHS and automotive standards including AEC-Q101.
Peak non-repetitive surge forward current capability of 400 A. It has a low peak reverse current of 5 microamperes enhancing circuit reliability. The device is suitable for use in switching power supplies, general purpose rectification, and automotive power management.
Ideal for industrial, automotive, laboratory, manufacturing, and power electronics applications. Explore Vishay products and other Schottky diodes & rectifiers in the Electronics & Electricals category on EnvMart for reliable sourcing and high-quality components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current is 6 amperes.
It has a peak reverse repetitive voltage rating of 600 volts.
This model is packaged in a P600 type with a through-hole mounting style and has 2 pins.
The peak reverse recovery time is 2.5 microseconds.
The operating temperature range is from -50°C to 150°C.
The maximum forward voltage drop is 1.25 volts.
It has a peak non-repetitive surge forward current capability of 400 amperes.
The peak reverse current is rated at 5 microamperes.
It complies with the AEC-Q101 automotive standard.
The diode has compact dimensions of 9.1 mm in length, width, height, and diameter.
This diode complies with RoHS standards for environmental compliance.
It is suitable for use in switching power supplies, general-purpose rectification, and automotive power management.
