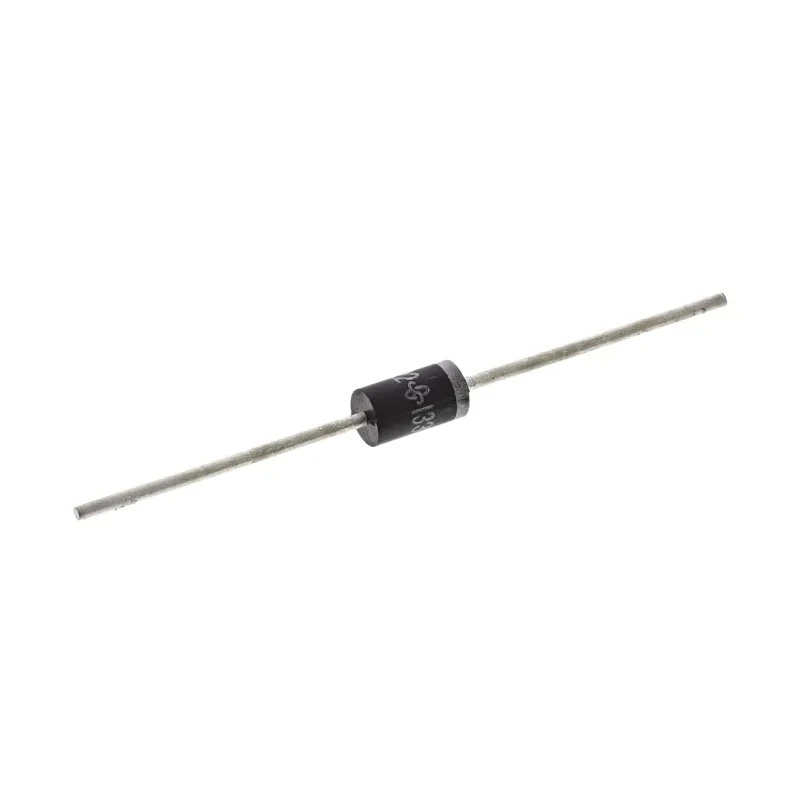

Vishay 40 V 3 A Schottky Diode 2-Pin DO-201AD 1N5822-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | Vishay |
| Height | 5.8mm |
| Length | 10mm |
| Model | 1N5822-E3/54 |
| Width | 5.8mm |
| Mount Type | Through Hole |
| Series | 1N5822 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 0.95V |
Key Features
- Designed with a low forward voltage drop of 0.95 V for efficient operation.
- Supports maximum continuous forward current of 3 A and peak non-repetitive surge current of 80 A.
- Features a 2-pin DO-201AD through-hole package ensuring reliable mounting.
- Operates over a wide temperature range from -65°C to 125°C.
- Compact dimensions with length 10 mm, width and height 5.8 mm, diameter 5.3 mm.
- Single diode configuration optimized for fast reverse recovery and low power loss.
- Suitable for applications in power rectification, voltage clamping, and fast switching circuits.
Product Description
Vishay 1N5822-E3/54 Schottky Diode 2-Pin DO-201AD is a high performance semiconductor device engineered for applications requiring efficient power rectification and fast switching capabilities. Rated for a peak reverse repetitive voltage of 40 V and continuous forward current of 3 A, this diode minimizes power dissipation with a low forward voltage of 0.95 V. Its construction in a through-hole DO-201AD package makes it ideal for robust assembly in industrial electronic and power supply systems.
The diode is designed to operate reliably within an ambient temperature range spanning from -65°C to 125°C, ensuring suitability across harsh environments and demanding industrial conditions. The fast switching action and extremely short reverse recovery time reduce losses and improve overall circuit efficiency, advantageous in power management and automotive electronics.
Compact with a length of 10 mm and diameter of 5.3 mm, the diode fits well into various PCB layouts where space constraints exist. Its single diode configuration delivers consistent rectification performance without complications of multiple element assemblies.
Low forward voltage drop of 0.95 V reduces heat and power loss. High forward surge current rating up to 80 A ensures durability under transient conditions. 2-pin DO-201AD package supports stable mechanical fixing and electrical connections.
Wide temperature range from -65°C to 125°C allows usage in extreme environmental conditions. Compact size aids in flexible circuit design for power electronics. Suitable for industrial, automotive, power supply, and general electronic applications.
Reliable Vishay Semiconductor brand quality and manufacturing standards.
Choose Vishay 1N5822-E3/54 for dependable Schottky Diode performance in your projects and systems. Explore further diode and rectifier products in the Electronics & Electricals category on EnvMart for comprehensive semiconductor solutions.
