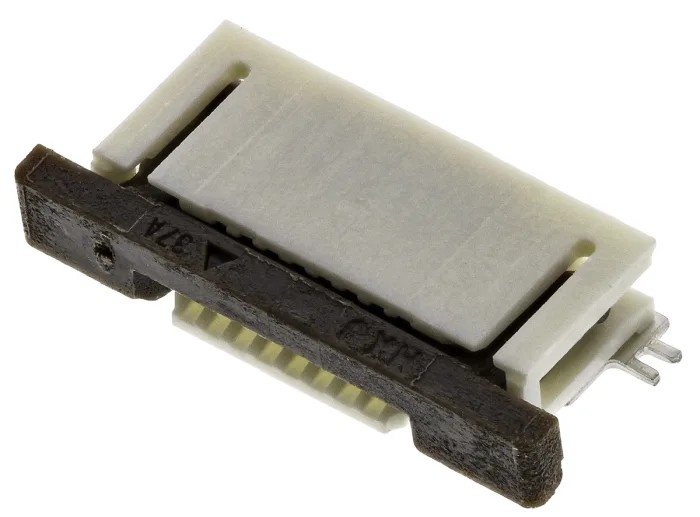

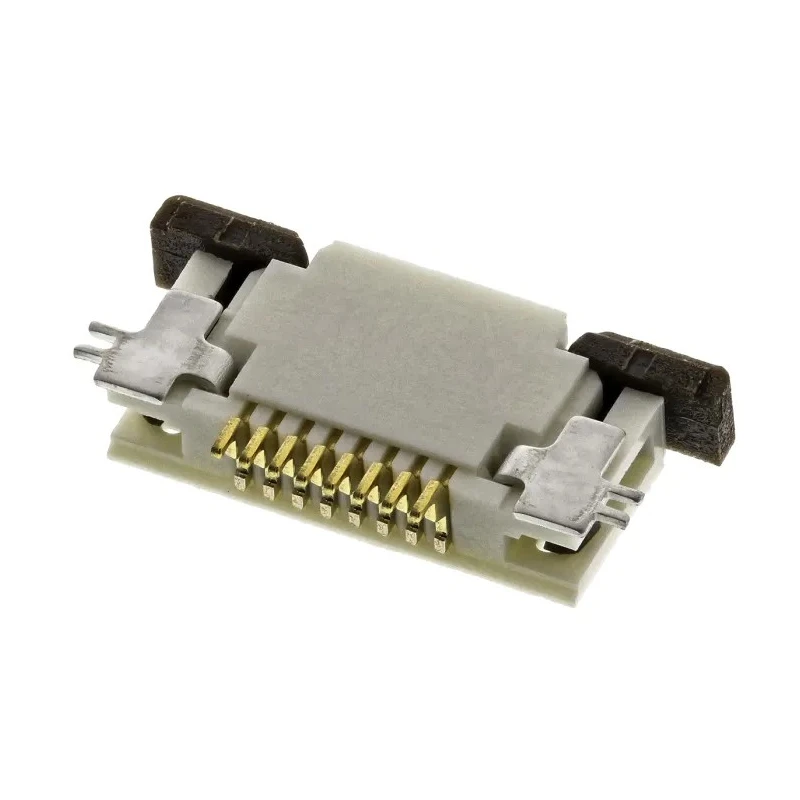

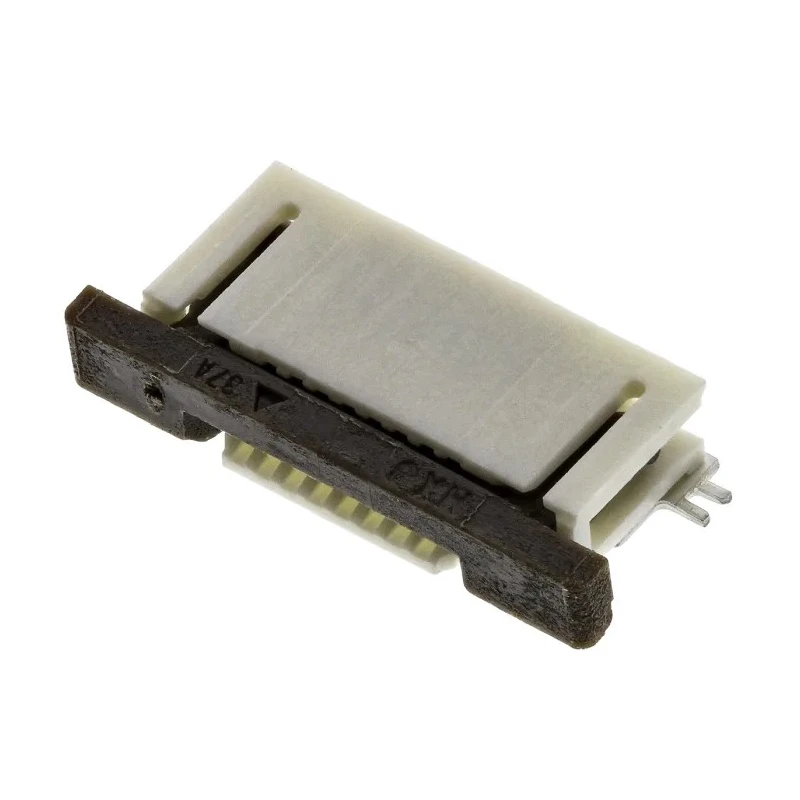

Molex 0.5 mm Pitch 8 Way Right Angle Female FPC Connector ZIF Bottom Contact 52746-0871

The Molex 52746-0871 0.5 mm Pitch 8 Way Right Angle Female FPC Connector is a high-quality electronic component designed for reliable surface mount applications. It features a zero insertion force (ZIF) bottom contact design allowing the connector to be soldered onto printed circuit boards without damage to contacts or cable.

This connector utilizes phosphor bronze contacts plated with gold over nickel which ensures excellent electrical conductivity and corrosion resistance. Its nylon housing provides mechanical durability while maintaining a compact form factor with a right-angle orientation ideal for various PCB layouts.

Rated for a maximum current of 500 mA and a voltage of 50 V, it is capable of withstanding operating temperatures ranging from -20°C to 85°C, making it suitable for industrial, commercial, and electronic manufacturing environments.

The product includes a locking mechanism to secure mating parts and prevent accidental disconnection during operation. As a surface mount device, it supports efficient assembly processes and high-volume production consistency.

Features 8 contacts with gold over nickel plating for high conductivity. Nylon housing ensures insulation and mechanical strength. ZIF bottom contact design minimizes assembly stress. Current rating of 500 mA and voltage rating of 50 V.

Wide temperature range from -20°C to 85°C enables versatile applications. Right angle orientation for flexible PCB mount options. Includes locking mechanism for secure electrical connections.

Manufactured in Japan, this Molex connector is ideal for use in electronics assembly, laboratory equipment, industrial machinery, and automotive electronics where reliable, miniature pitch connectors are required. The high barrier packaging maintains product quality during transport and storage.
