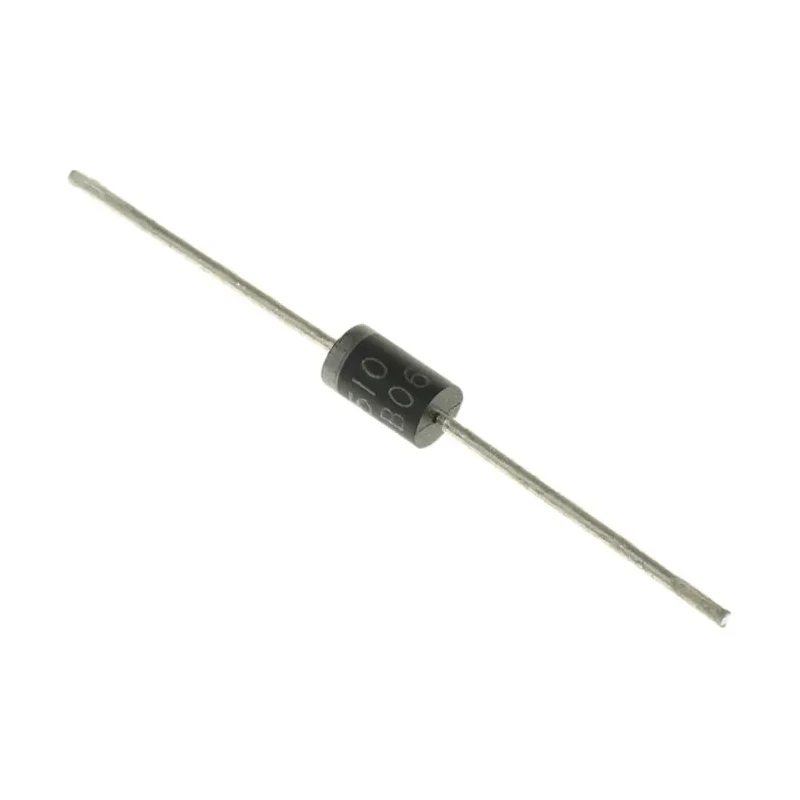

Taiwan Semiconductor 100 V 5 A Schottky Diode Single 2-Pin Through Hole DO-201AD SR510
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.6mm |
| Brand | Taiwan Semiconductor |
| Height | 5.6mm |
| Length | 9.5mm |
| Model | SR510 |
| Width | 5.6mm |
| Mount Type | Through Hole |
| Series | SR510 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 120A |
| Maximum Forward Voltage Vf | 0.85V |
Key Features
- Features a low forward voltage drop of 0.85 V for efficient power usage.
- Designed with a single diode configuration and two pins for through hole mounting.
- Supports peak non-repetitive forward surge currents up to 120 A.
- Operates reliably in temperatures ranging from -65°C to 150°C.
- Compact dimensions include 5.6 mm diameter and width, and 9.5 mm length.
- Complies with automotive standard AEC-Q101 to ensure durability.
- Offers low peak reverse current leakage of 100 μA enhancing device performance.
- Ideal for applications requiring high current Schottky barrier diodes with low power loss.
Product Description
Taiwan Semiconductor SR510 is a high-performance Schottky barrier diode rated for a maximum continuous forward current of 5 A and a peak repetitive reverse voltage of 100 V. Packaged in a through hole DO-201AD format, it ensures easy integration into electronic assemblies.
The diode exhibits a low forward voltage drop of 0.85 V which minimizes power dissipation and improves efficiency in power management circuits. With a peak non-repetitive forward surge current capability of 120 A, it is suited for transient surge handling applications.
Constructed as a single diode configuration with two pins, this component is designed for through hole mounting, suitable for robust and reliable soldering on printed circuit boards. The diode operates effectively between -65°C and 150°C, offering performance stability under harsh environmental conditions.
Its compact mechanical dimensions of 5.6 mm diameter and width, along with a 9.5 mm length, allow for space-saving designs in power electronics and switching applications. Moreover, it complies with the automotive standard AEC-Q101, making it appropriate for automotive electronics demanding high reliability.
Low forward voltage drop of 0.85 V reduces power losses. High maximum forward current of 5 A for demanding power applications. Peak reverse voltage of 100 V provides robust blocking capability. Wide operating temperature range from -65°C to 150°C.
Peak surge current rating of 120 A for transient tolerance. Single diode, 2-pin through hole DO-201AD package. Low reverse leakage current minimizes power draw in off-state. Meets automotive grade AEC-Q101 standard for enhanced durability.
Compact dimensions facilitate flexible PCB layout integration.
This Schottky diode from Taiwan Semiconductor is ideal for industrial, automotive, power supply, and general electronics use. It ensures efficient, reliable rectification in DC-DC converters, solar panels, battery charging, and protection circuits.
For more product choices and detailed component specifications, browse the Semiconductor and Diodes sections at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this Schottky diode is 5 A.
This model has a peak reverse repetitive voltage rating of 100 V.
The forward voltage drop is 0.85 V, which helps minimize power dissipation.
The compact dimensions of this diode are 5.6 mm in diameter and width, and 9.5 mm in length.
It supports a peak non-repetitive forward surge current of up to 120 A.
The diode operates reliably in temperatures ranging from -65°C to 150°C.
This model is designed for through hole mounting with a single diode configuration and two pins.
It complies with the automotive standard AEC-Q101, ensuring enhanced durability.
The peak reverse current leakage is 100 μA, which enhances device performance.
This Schottky diode is suitable for industrial, automotive, power supply, and general electronics applications.
The SR510 is packaged in a DO-201AD format, facilitating easy integration into electronic assemblies.
This model is classified as a Schottky rectifier, known for its low forward voltage drop.
