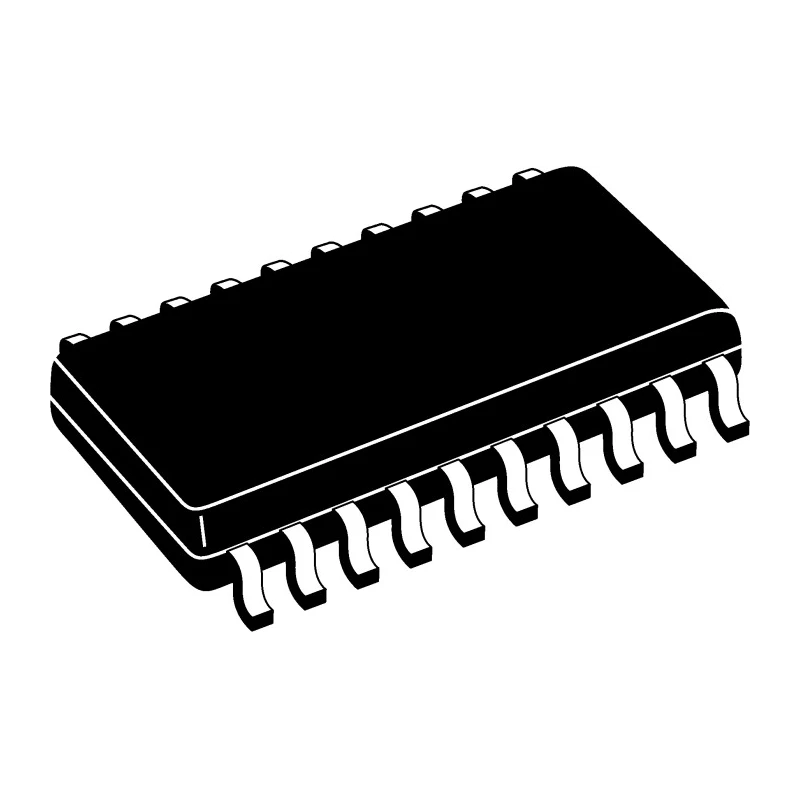

onsemi 8-Bit Non-Inverting CMOS Bus Transceiver 20-Pin SOIC MM74HC245AWM

Free Delivery in India | Lowest Global Shipping Charges

onsemi 8-Bit Non-Inverting CMOS Bus Transceiver 20-Pin SOIC MM74HC245AWM

Name: onsemi 8-Bit Non-Inverting CMOS Bus Transceiver 20-Pin SOIC MM74HC245AWM
Brand: onsemi
SKU: 101090
Price: 0.81 USD
Availability: InStock



Category Logic ICs Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	2.35mm
Length	13mm
Model	MM74HC245AWM
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	3 State
Series	MM74HC
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	8
Operating Voltage	2 to 6 V
Pin Count	20
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	Bus Transceiver
Minimum Supply Voltage	2V
Maximum High Level Output Current	-7.8mA
Maximum Propagation Delay Time @ CL	113ns
Maximum Low Level Output Current	7.8mA
Output Level	CMOS
Input Level	CMOS

Key Features

Operates with a supply voltage range of 2 to 6 V.
Supports 8 channels with non-inverting polarity.
Compact surface mount SOIC package with 20 pins for easy PCB integration.
Features a maximum propagation delay time of 113ns at CL.
Designed for operating temperatures from -40°C to 85°C.
Input and output levels are CMOS compatible for efficient signal handling.
Maximum high level output current of -7.8 mA and low level output current of 7.8 mA.
3-state output type to enable bus sharing and improved system flexibility.

Product Description

onsemi MM74HC245AWM is an 8-bit non-inverting bus transceiver designed with high-speed CMOS logic technology, packaged in a 20-pin SOIC surface mount form factor. It operates within a voltage range of 2 to 6 V, making it ideal for various industrial and electronic circuit designs requiring efficient bus communication.

This logic IC supports 8 channels with CMOS compatible input and output levels, ensuring smooth integration with other digital components. The device is capable of handling a maximum propagation delay time of 113ns at the rated load capacitance, facilitating fast data transfer and response in bus transceiver applications.

The component is constructed for reliable operation across a wide temperature range from -40°C to 85°C, suitable for demanding industrial and electronic environments. It features a three-state output that allows multiple devices to share the same bus line without interference, enhancing system flexibility.

The compact SOIC package measures 2.35mm in height and 13mm in length, providing a small footprint for circuit board space optimization. The device does not carry specific automotive certifications but complies with standard industrial logic family requirements.

Operates at 2 to 6 V supply voltage. Non-inverting polarity with 8 logical channels. Surface mount SOIC package with 20 pins. Maximum propagation delay time 113ns at CL. CMOS input and output levels for compatibility. Operating temperature range from -40°C up to 85°C.

Maximum high and low level output currents of -7.8mA and 7.8mA respectively. Three-state output to allow bus sharing. Dimensions: height 2.35mm, length 13mm.

This bus transceiver is applicable in numerous industrial, laboratory, and electronic design environments requiring high-speed logic interface and communication between components. Its reliable performance and standard sizing facilitate its use in embedded systems, control units, and digital signal processing equipment.

Explore the Electronics & Electricals category on EnvMart for a wide selection of semiconductor Logic ICs including bus transceivers like the onsemi MM74HC245AWM designed to meet diverse industrial demands.
