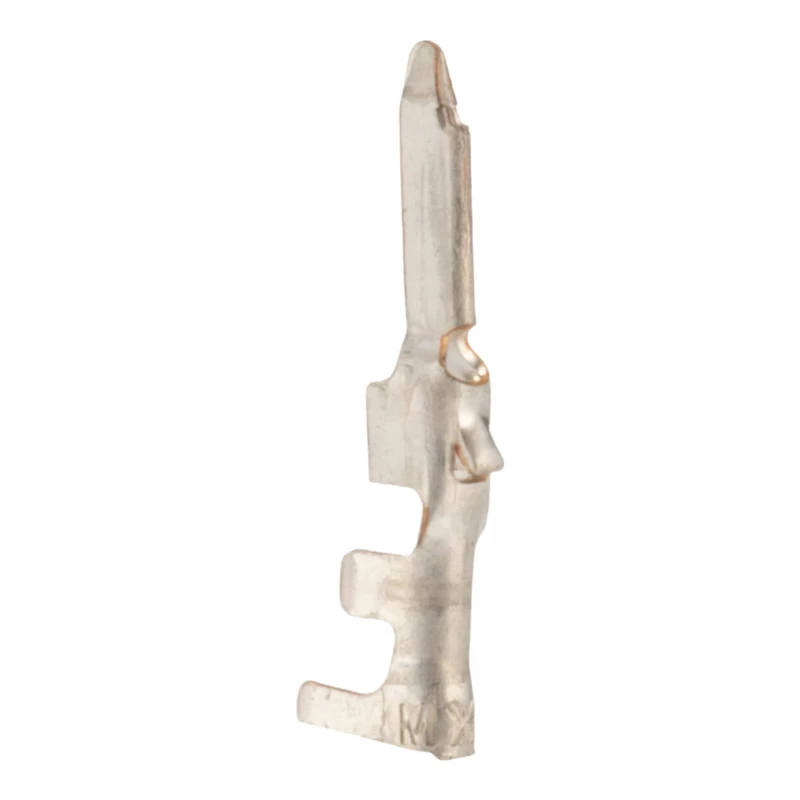

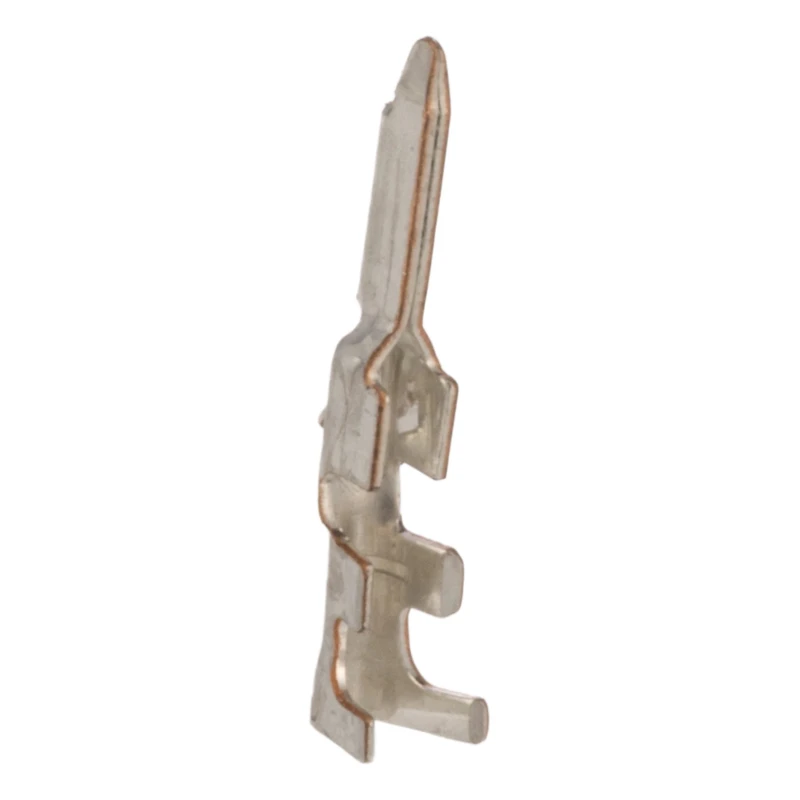

Molex 50125 Series Male Crimp Terminal, Tin Plated Phosphor Bronze Contacts, 1A Current, 28-26 AWG, Crimp 50125-8100
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Current | 1A |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | 50125 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | PicoBlade Connector Housing |
| Standards/Approvals | ELV and RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.1mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 26AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Constructed with phosphor bronze contacts and tin plating for high conductivity and corrosion resistance.
- Compatible with crimp termination methods for reliable wire connection.
- Compact 1.25mm pitch suitable for electronic and signal transmission applications.
- Provides low contact resistance of 20 milliohms ensuring superior electrical performance.
- Operates reliably from -40°C to 105°C supporting harsh environments.
- Complies with ELV and RoHS safety and environmental standards.
- Manufactured in Japan ensuring quality and consistency.
Product Description
Molex 50125-8100 is a male Crimp Terminal designed for electronic and electrical applications that require secure, compact connections. It is engineered specifically for use with the PicoBlade connector housing system, supporting wire sizes from 28 AWG to 26 AWG and a maximum current rating of 1 ampere. This terminal features tin-plated phosphor bronze contacts that provide excellent conductivity while resisting corrosion and wear.
The crimp termination type enables flexible and robust wire termination, ideal for automation systems, signal transmission, and electronic device assembly. The terminal boasts a low maximum contact resistance of 20 milliohms, contributing to superior electrical performance and reliability in demanding environments. It operates efficiently within a temperature range of -40°C up to 105°C, making it suited for a wide range of industrial, laboratory, and commercial uses.
Manufactured in Japan, the terminal complies with ELV and RoHS regulations, ensuring environmental safety and product integrity. This component is highly compatible with dense PCB connector systems requiring compact form factor and dependable electrical contacts.
Phosphor bronze contacts with tin plating enhance electrical conductivity and corrosion resistance. Designed for crimp termination offering secure wire connections. Supports 28 to 26 AWG wire sizes suitable for fine wiring applications.
Maximum current rating of 1A for moderate electrical loads. Low contact resistance of 20 milliohms ensures minimal signal loss. Operates from -40°C to 105°C compatible with harsh conditions. Compliant with ELV and RoHS environmental and safety standards.
Ideal for use in automation, electronics, and signal transmission assemblies. Explore more Molex connectors and crimp solution products on EnvMart to find complementary components for your electrical systems and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this male crimp terminal is 1 ampere.
This model supports wire sizes from 28 AWG to 26 AWG.
The contacts are made of phosphor bronze, which is tin plated for improved conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 105°C.
This model uses a crimp termination type, allowing for secure wire connections.
The maximum contact resistance is 20 milliohms, ensuring minimal signal loss.
It complies with ELV and RoHS safety and environmental standards.
This terminal is manufactured in Japan.
It is suitable for use in automation systems, signal transmission, and electronic device assembly.
The terminal has a compact pitch size of 1.25mm, suitable for electronic and signal transmission applications.
This terminal is designed for use with the PicoBlade connector housing system.
The tin plating enhances electrical conductivity and provides corrosion resistance for reliable performance.
