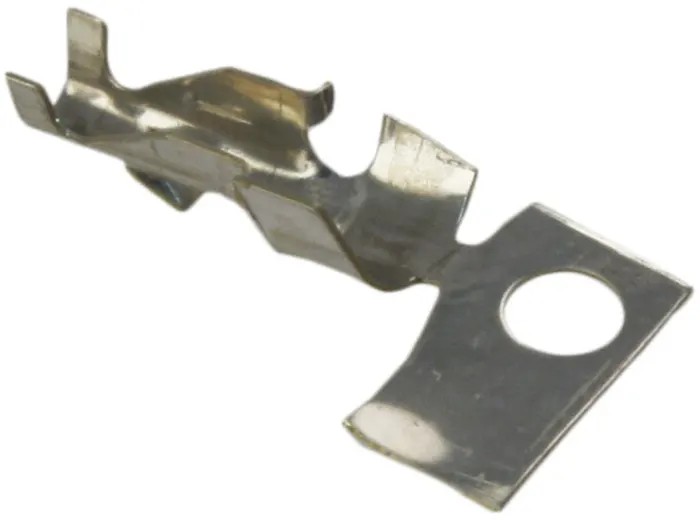

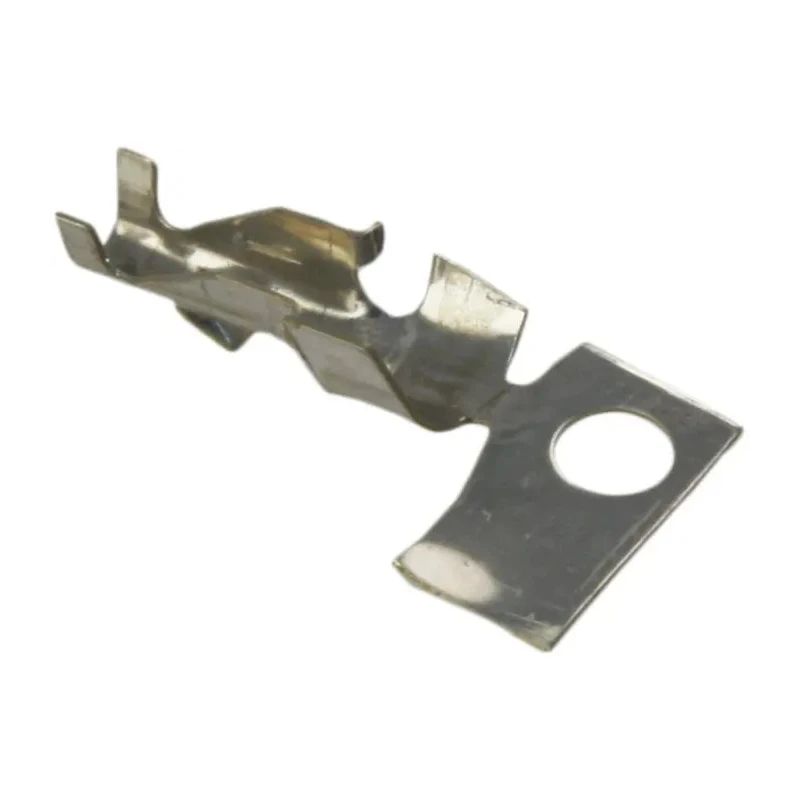

Molex 4706 Series Male Crimp Terminal, 18 AWG Minimum Wire Size, 16 AWG Maximum Wire Size, Tin Plating, Brass 02-07-2101

Free Delivery in India | Lowest Global Shipping Charges

Molex 4706 Series Male Crimp Terminal, 18 AWG Minimum Wire Size, 16 AWG Maximum Wire Size, Tin Plating, Brass 02-07-2101

Name: Molex 4706 Series Male Crimp Terminal, 18 AWG Minimum Wire Size, 16 AWG Maximum Wire Size, Tin Plating, Brass 02-07-2101
Brand: Molex
SKU: 100965
Price: 0.09 USD
Availability: InStock



Category Crimp Terminal Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Gender	Male
Contact Material	Brass
Series	4706
Termination Type	Crimp
For Use With	Power Connector
Standards/Approvals	ELV and RoHS
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	18AWG
Maximum Wire Size AWG	16AWG

Key Features

This crimp terminal features 4706 series reliability and durability.
Suitable for crimping wires with a minimum size of 18 AWG and maximum size of 16 AWG.
Contact plating of tin ensures corrosion resistance and effective conductivity.
The brass contact material provides sturdy mechanical and electrical properties.
Termination by crimp offers secure wire retention before soldering.
Meets ELV and RoHS standards for environmental compliance.
Ideal for use as a mechanical holding device on printed circuit boards prior to wave soldering.
Manufactured in the United States ensuring high quality standards.

Product Description

Molex 02-07-2101 Male Crimp Terminal is designed specifically for power connectors within the 4706 series. This terminal supports wire sizes ranging from a minimum of 18 AWG to a maximum of 16 AWG, providing flexibility for various wiring requirements in electronic applications.

The terminal features tin plating on the contact to offer excellent corrosion resistance along with reliable electrical conductivity. The contact material is brass, which is known for its durability and strength, ensuring the terminal performs well under mechanical and electrical stresses.

This crimp terminal is primarily used as a mechanical holding device to secure the wire to the printed circuit board until the board undergoes the wave soldering process. It is important to note that the terminal is not intended to serve as an electrical connection by itself without subsequent soldering.

The crimp termination provides a secure and stable connection between the wire and terminal, enhancing production efficiency and reliability in assembly operations.

Compliant with ELV and RoHS standards, the product assures adherence to environmental directives making it suitable for industrial electronic manufacturing, laboratory equipment, and HVAC control systems.

Manufactured in the United States, this crimp terminal guarantees quality and consistency required for demanding industrial applications. This Crimp Terminal features 4706 series reliability and durability. Supports wire sizes from 18 AWG minimum to 16 AWG maximum.

Contact plating is tin for corrosion resistance and conductivity. Brass contact material ensures durability and performance. Crimp termination secures wires mechanically prior to soldering. Compliant with ELV and RoHS environmental standards.

Used as a wire retention device on printed circuit boards before wave soldering. Manufactured in the United States for high quality assurance. Explore the Molex brand and the Electronics Components category at EnvMart for reliable connectors and related accessories.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This crimp terminal supports wire sizes ranging from a minimum of 18 AWG to a maximum of 16 AWG.

The contact material of this terminal is brass, which provides sturdy mechanical and electrical properties.

It uses a crimp termination type, which secures wires mechanically before soldering.

The contact plating is tin, which ensures corrosion resistance and effective conductivity.

Yes, it is compliant with ELV and RoHS standards, ensuring adherence to environmental directives.

This crimp terminal is manufactured in the United States.

It is primarily used as a mechanical holding device on printed circuit boards prior to wave soldering.

This terminal belongs to the Molex 4706 series, known for its reliability and durability.

The minimum wire size is 0.2 mm² and the maximum wire size is 0.8 mm².

This crimp terminal is male gendered.

It is designed for use with power connectors.

Crimp termination provides a secure and stable connection between the wire and terminal, enhancing production efficiency and reliability in assembly operations.
