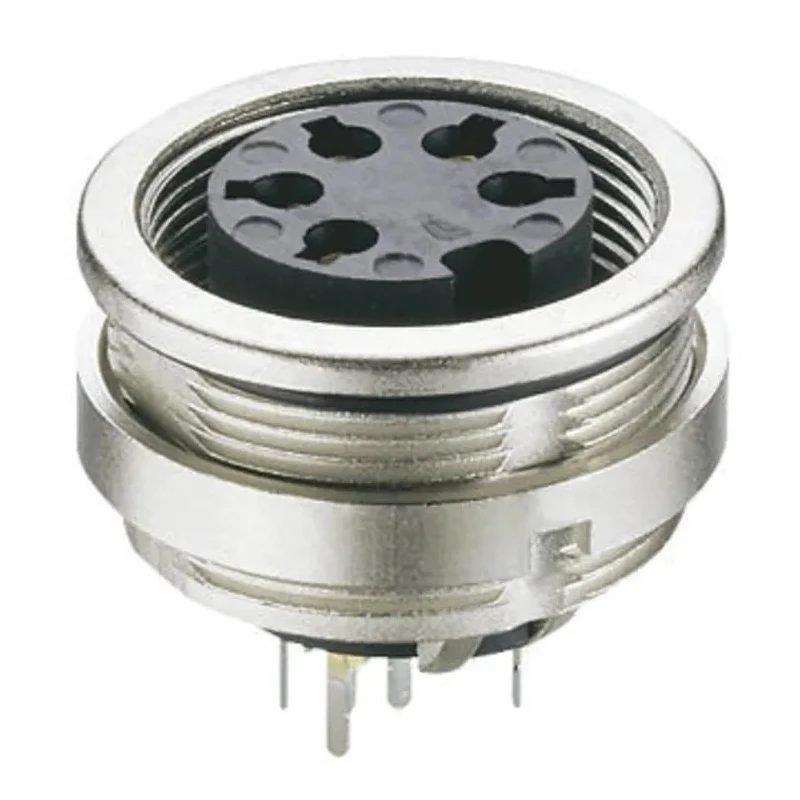

Lumberg 5 Pole Straight M16 DIN Socket Wall Mount Female Threaded Gold over Silver Contacts 250V AC 5A IP68 0306 05-1

Lumberg 0306 05-1 5 Pole Straight M16 DIN Socket is a high-quality wall mount female connector designed for demanding industrial and electronic applications requiring reliable connectivity and protection.

The robust die cast zinc housing ensures durability and resistance against mechanical impact, while the brass contacts plated with gold over silver provide excellent conductivity and corrosion resistance. Rated at 5 ampere current and 250V AC voltage, this connector suits moderate power applications in control engineering, automation technology, and instrumentation.

With an IP68 rating according to DIN EN 60529, the socket offers complete protection against dust ingress and prolonged immersion in water, making it ideal for use in harsh or outdoor environments. Its operational temperature range from -40°C to 85°C ensures reliability across varied climatic conditions.

The socket utilizes threaded mating connectors for secure mechanical and electrical join, with PCB solder termination providing stable and long-lasting connections. It features a straight orientation to facilitate straightforward panel mounting and wiring.

Part of Lumberg’s 306 series, this 5 pole socket supports multiple connection needs and mates with compatible 0322 series connectors. Typical industrial use cases include automation systems, manufacturing equipment, medical devices, and control panels where robust and reliable connector systems are essential.

Constructed with die cast zinc housing for enhanced mechanical protection. Brass contacts plated with gold over silver to ensure reliable electrical contact. Rated for up to 5A current and 250V AC voltage to support standard industrial signals and power.

IP68 rated for dust-tight sealing and water immersion protection. Designed for wall mount applications with threaded mating for secure connections. Compatible with DIN EN 60529 standards for protective enclosures. Wide operating temperature range from -40°C to +85°C handling varied environments.

Solder termination on PCB for secure electrical attachment. Part of 306 series supporting up to 12 way connector configurations. Explore more connectors in the DIN Socket category on EnvMart to find compatible components and accessories for your industrial and electronic equipment needs.
