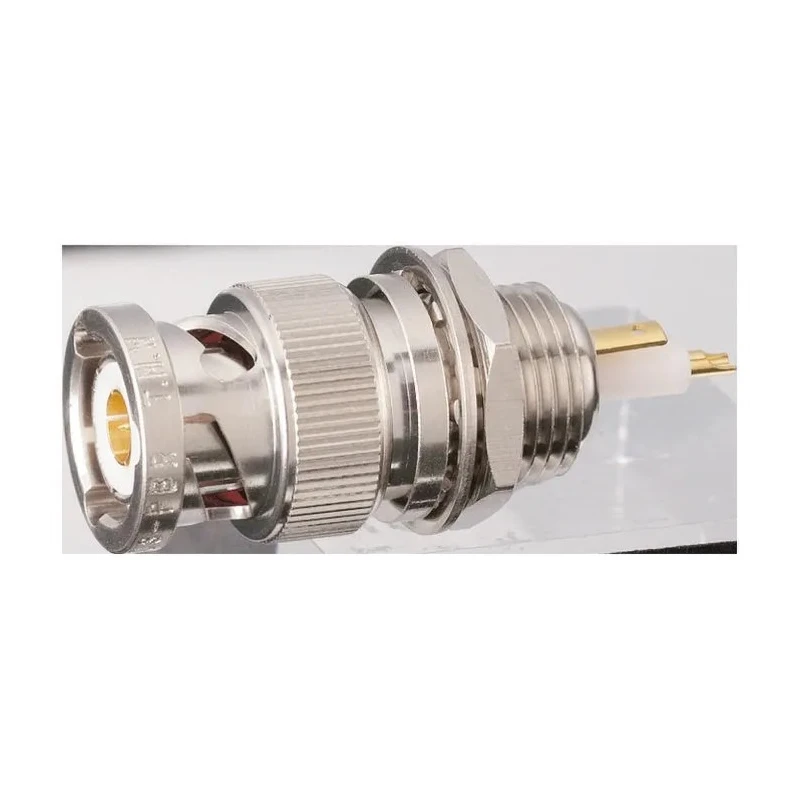

Tajima Electronics TXA Series Coaxial Connector Panel Mount Male Triaxial 50Ω, Straight Body Clamp TXA103-PBR

Free Delivery in India | Lowest Global Shipping Charges

Tajima Electronics TXA Series Coaxial Connector Panel Mount Male Triaxial 50Ω, Straight Body Clamp TXA103-PBR

Name: Tajima Electronics TXA Series Coaxial Connector Panel Mount Male Triaxial 50Ω, Straight Body Clamp TXA103-PBR
Brand: Tajima Electronics
SKU: 194357
Price: 104.86 USD
Availability: InStock



Category Coaxial Connector Brand Tajima Electronics Condition New

Specifications

Country of Origin	Japan
Size	Standard
Brand	Tajima Electronics
Orientation	Straight
Model	TXA103-PBR
Mount Type	Panel Mount
Operating Frequency	500MHz
Contact Material	Beryllium Copper, Brass
Series	TXA
Termination Type	Clamp
Cable Type	ECX2.5D-2VSV, ECX2.5C-2VSV, ECX1.5D-2VSV, ECX1.5C-2VSV
Minimum Operating Temperature	0°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Male
Connector Gender	Male
Coaxial Connector Type	Triaxial
Body Plating	Nickel

Key Features

Triaxial design ensures enhanced shielding and noise reduction.
Panel mount type allows secure and accessible installation.
Compatible with cable types ECX2.5D-2VSV, ECX2.5C-2VSV, ECX1.5D-2VSV, and ECX1.5C-2VSV.
Operating frequency up to 500MHz for precision signal transmission.
Constructed with nickel-plated body and gold-plated contacts for corrosion resistance and conductivity.
Uses 3-point bayonet clamp termination for secure connection.
Suitable for measuring equipment, TV camera systems, and high-volume data transmission applications.
Made in Japan, ensuring high-quality manufacturing standards.

Product Description

Tajima Electronics TXA103-PBR is a high-quality TXA Series coaxial connector, designed as a panel mount male triaxial connector with 50 Ω impedance. It features a straight body clamp termination type, suitable for reliable and stable connections in electronic and industrial applications.

The triaxial structure offers excellent shielding to minimize electrical interference, making it ideal for sensitive measuring equipment, TV camera systems, and high data transmission systems. It supports operating frequencies up to 500 MHz, ensuring versatile use across multiple applications.

This connector is compatible with various cable types including ECX2.5D-2VSV and ECX1.5C-2VSV variants, providing flexibility for different setups. The connector body is nickel plated, while the contact points are made of beryllium copper and brass with gold plating to enhance conductivity and corrosion resistance.

The 3-point bayonet clamp ensures secure and quick panel mounting, improving ease of installation and maintenance. This product meets robust mechanical and electrical standards without specific approvals or certifications indicated.

Triaxial design for enhanced signal shielding and noise immunity. Panel mount type for reliable fixture and easy access. Compatible with multiple ECX cable types for broad usability. 500 MHz operating frequency suitable for high-quality signals.

Nickel plating on body and gold plating on contacts for durability. Clamp termination provides secure and stable connections. Used extensively in industrial, laboratory, broadcasting, and telecommunication equipment. Manufactured in Japan with quality assurance.

Explore the full Tajima Electronics TXA Series and related Coaxial Connectors in EnvMart’s Electronics Components category for reliable and quality connectors matching your application needs.
