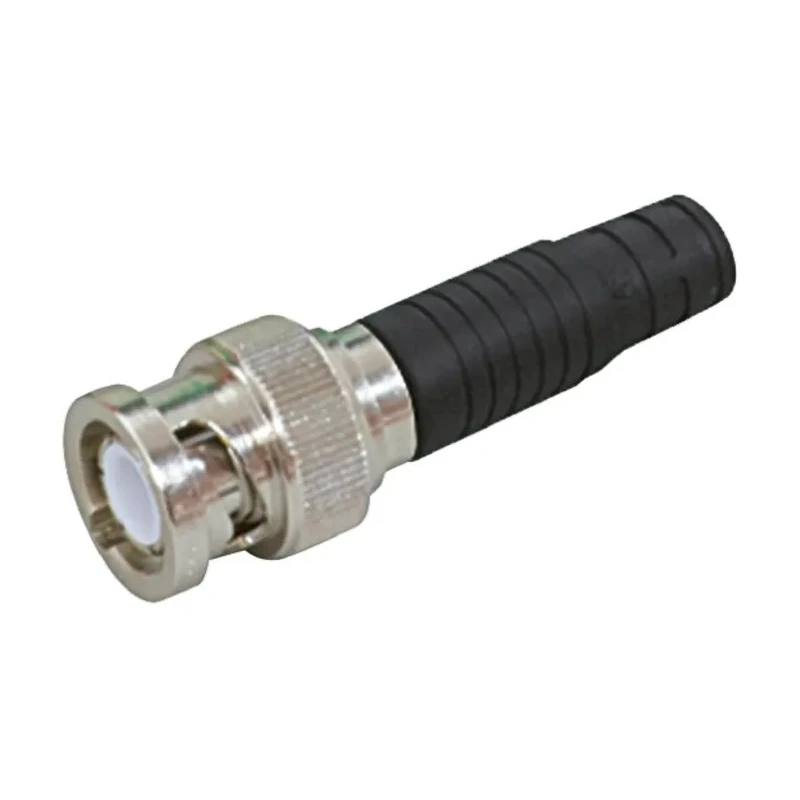

Tajima Electronics BNC Series Coaxial Connector Cable Male BNC 50Ω Straight Body Crimp BNCW501-P1-0
Specifications
| Country of Origin | Japan |
|---|---|
| Size | Standard |
| Brand | Tajima Electronics |
| Orientation | Straight |
| Model | BNCW501-P1-0 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Gold |
Key Features
- 50 ohm impedance ensuring optimal signal integrity.
- Gold plated body and contact for corrosion resistance.
- Crimp termination type for secure cable connection.
- Straight male connector suitable for cable mounting.
- Operates across frequency up to 4 GHz for high-performance applications.
- Waterproof design suitable for outdoor use including surveillance systems.
- Wide operating temperature from -25°C to 85°C ensuring durability.
- Manufactured with beryllium copper alloy contacts enhancing conductivity and strength.
Product Description
Tajima Electronics BNCW501-P1-0 is a high-quality BNC Series Coaxial Connector with a male BNC type, featuring a straight body crimp mount designed for cable applications. It provides a characteristic impedance of 50 Ω and supports operating frequencies up to 4 GHz, making it ideal for use in electronic devices requiring stable and efficient signal connectors.
This connector is gold plated both on the body and the contacts, which are made from beryllium copper alloy, enhancing corrosion resistance and electrical performance. The connector’s termination type is crimp, recommended to be installed using cable terminating tools like the T100-6-W3 for accurate dimensions and secure fitting.
The waterproof BNCW series communicates excellent durability in outdoor environments, suitable for applications such as surveillance cameras and other electronic equipment exposed to varying climatic conditions. Its operating temperature range from -25°C to 85°C guarantees performance reliability under harsh temperatures.
The product is made in Japan, adhering to high manufacturing quality standards. The connector gender is male with a normal polarity and does not include bulkhead mounting, designed for standard size applications in the electronics components sector.
50 ohm characteristic impedance for consistent signal transmission. Gold plating on body and contact for enhanced durability. Crimp termination for reliable cable attachment. Straight orientation for easy cable routing. Waterproof design ensures protection in outdoor environments.
Wide operating temperature range from -25°C to 85°C. Suitable for high-frequency applications up to 4 GHz. Beryllium copper alloy contact material for excellent conductivity. Standard size ensures compatibility within BNC series connectors.
Explore the Tajima Electronics category for a comprehensive selection of Coaxial Connectors and electronic components designed for industrial, commercial, and laboratory applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BNCW501-P1-0 connector has a characteristic impedance of 50Ω, ensuring consistent signal transmission.
This model supports operating frequencies up to 4 GHz, making it suitable for high-performance applications.
The connector features a gold plated body and contacts made from beryllium copper alloy, enhancing corrosion resistance and conductivity.
It operates effectively within a wide temperature range from -25°C to 85°C, ensuring reliability under various environmental conditions.
This connector uses a crimp termination type, which requires specific cable terminating tools for installation.
Yes, it features a waterproof design, making it suitable for outdoor applications including surveillance systems.
The BNCW501-P1-0 has a straight orientation, which facilitates easy cable routing.
This model is manufactured in Japan, adhering to high manufacturing quality standards.
The connector has a male contact gender, designed for standard size applications in the electronics components sector.
It is suitable for high-frequency applications, particularly in electronic devices that require stable and efficient signal connections.
No, this connector does not include bulkhead mounting; it is designed for standard cable mounting applications.
The contacts of this connector are gold plated, which enhances durability and corrosion resistance.
